- Compact Low-Profile Design
- Continuous 360° rotation
- 30mm through bore
- High resolution encoder
- Precision index mark for homing
- Direct drive brushless servo motor

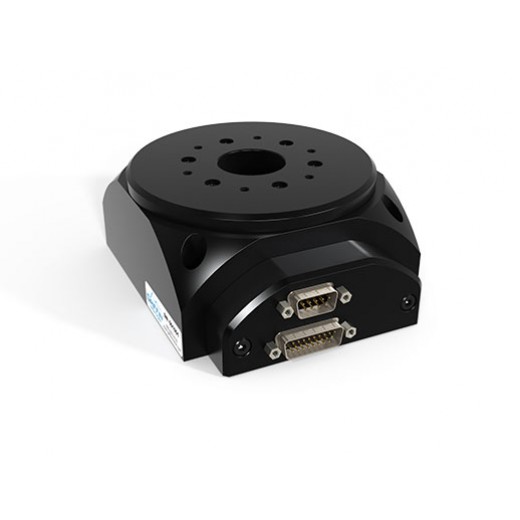

The RTS-DD Series Rotary tables are compact, direct drive, precision positioning tables designed for laboratory, factory automation and semiconductor processing equipment.
| Product Family | RTS |
| Additional Options | No Additional Options |
| Hub Material | Aluminum |
| Diameter | 100 |
| Drive Type | Direct Drive |
| Encoder | Glass Disk, 10,000 Line Pairs |
| Interpolation | 25X |
| Precision Class | High Precision |
| Repeatability (arc-sec) | 3 |
| Resolution | 1.296 |
| Continuous Velocity (deg/s) | 3120 |
| Axial Runout (μm) | 5 |
| Continuous Torque | 0.65 |
| Encoder Output | A quad B, index |
| Force X (N) | 110 |
| Force Y (N) | 110 |
| Force Z (N) | 250 |
| Height (mm) | 55 |
| Length (mm) | 133 |
| Limit Switches | No |
| Accuracy (arc-sec) | 20 |
| Moment X (N·m) | 10 |
| Moment Y (N·m) | 10 |
| Encoder Resolution | 1.296 (1000000cts/rev) |
| Peak Torque (N·m) | 1.30 |
| Radial Runout (m) | 5 |
| Rotational Inertia (kgm) | 0.000485 |
| Stage Mass (kg) | 1.7 |
| Travel Range (deg) | 360 continuous |
| Width (mm) | 110 |
| Wobble | 10 |
