Rotary Stages

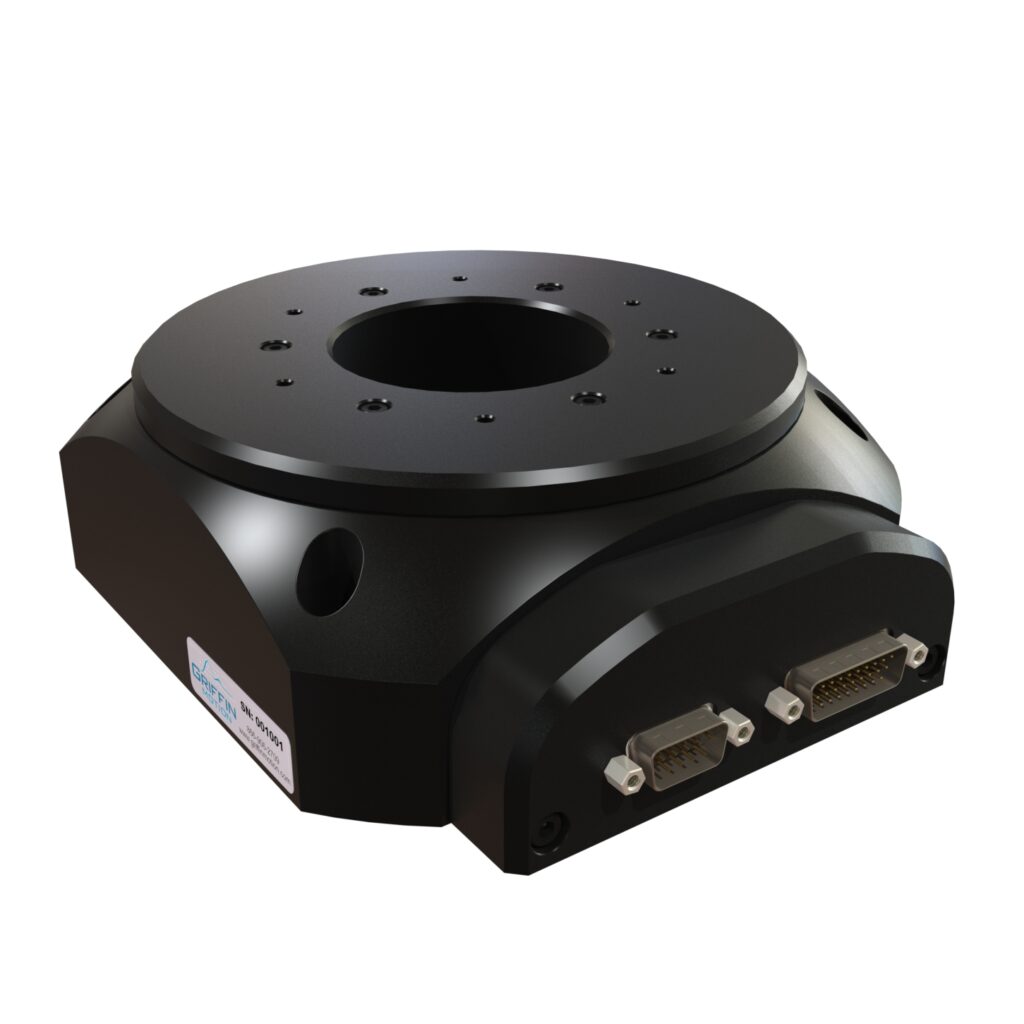

RTS-150

150mm Diameter Precision Rotary Stage

Product SKU:: RTS-DD-150

Do you have questions? Contact our Experts: (866) 906-2709

Overview

The RTS-150 is a low-profile, high-precision rotary stage designed for applications requiring accurate and repeatable rotation or indexing. Driven by a direct-drive, brushless motor, the RTS-150 delivers smooth motion with minimal backlash and excellent dynamic response. Its rigid construction ensures stability and precision, even under load, while its low height allows for integration into tight spaces. Ideal for metrology, optical alignment, and general automation, the RTS-150 offers reliable, high-performance rotary positioning.

Features

Compact Low-Profile Design

Continuous 360° rotation

60mm through bore

High Resolution Encoder

Precision index mark for homing

Direct drive brushless servo motor

Specifications

Rotational Accuracy (arc-sec):	Down to 20.0
Rotational Repeatability (arc-sec):	Down to 2.0
Travel Range (deg):	360 continuous
Drive Type:	Direct Drive
Encoder Output:	A quad B or Sin-Cos (1Vpp), A quad B, Sin-Cos (1Vpp) or BiSS C (unidirectional)
Force X:	150
Force Y:	150
Force Z:	350
Moment X:	15
Moment Y:	15
Axial Runout (µm):	Down to 6.0µm
Radial Runout (µm):	Down to 6.0µm
Wobble (±arc-sec):	Down to 6.0
