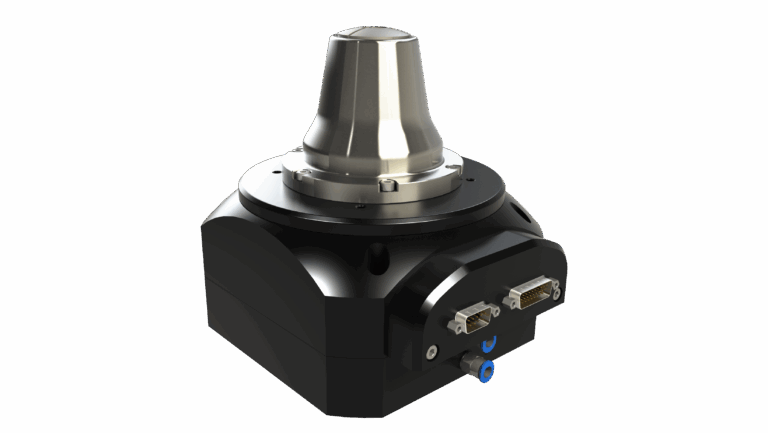

RTS-150-3C

Precision Rotary Stage with Pneumatic 3C Collet Integration

Product SKU:: RTS-150-3C

Do you have questions? Contact our Experts: (866) 906-2709

Overview

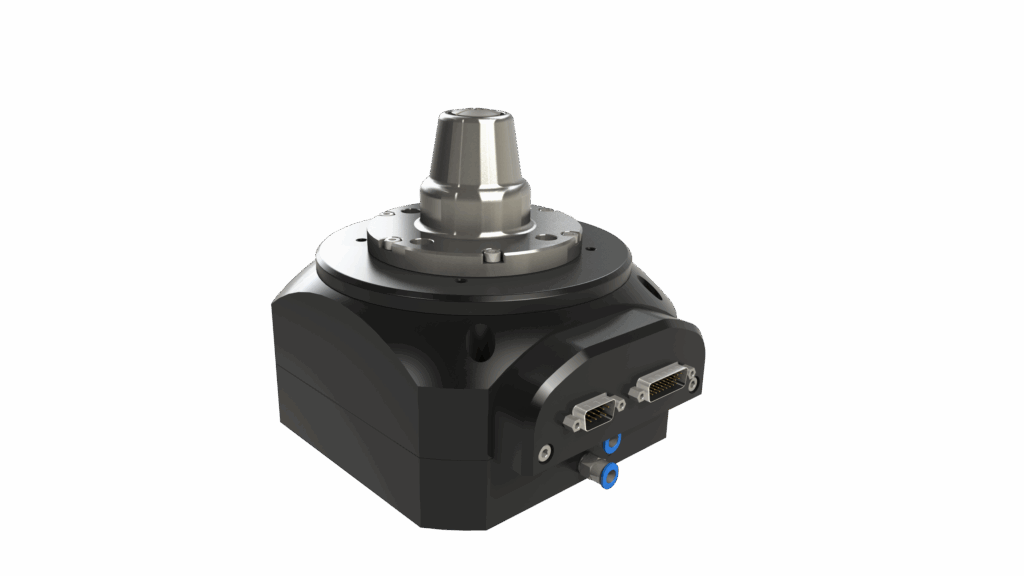

The RTS-150-3C is a high-precision rotary motion system with integrated 3C work holding. Designed specifically laser tube processing, it offers excellent angular accuracy, runout, wobble, and smooth low-speed profiling. Its low-friction pneumatic drawbar design enables precise clamping force adjustment. For more specific details on the base stage, please see the datasheet for the RTS-DD-150-BB-(C/D/E)-A-S-0-00. Contact Griffin Motion for further details on the product, pricing or lead time.

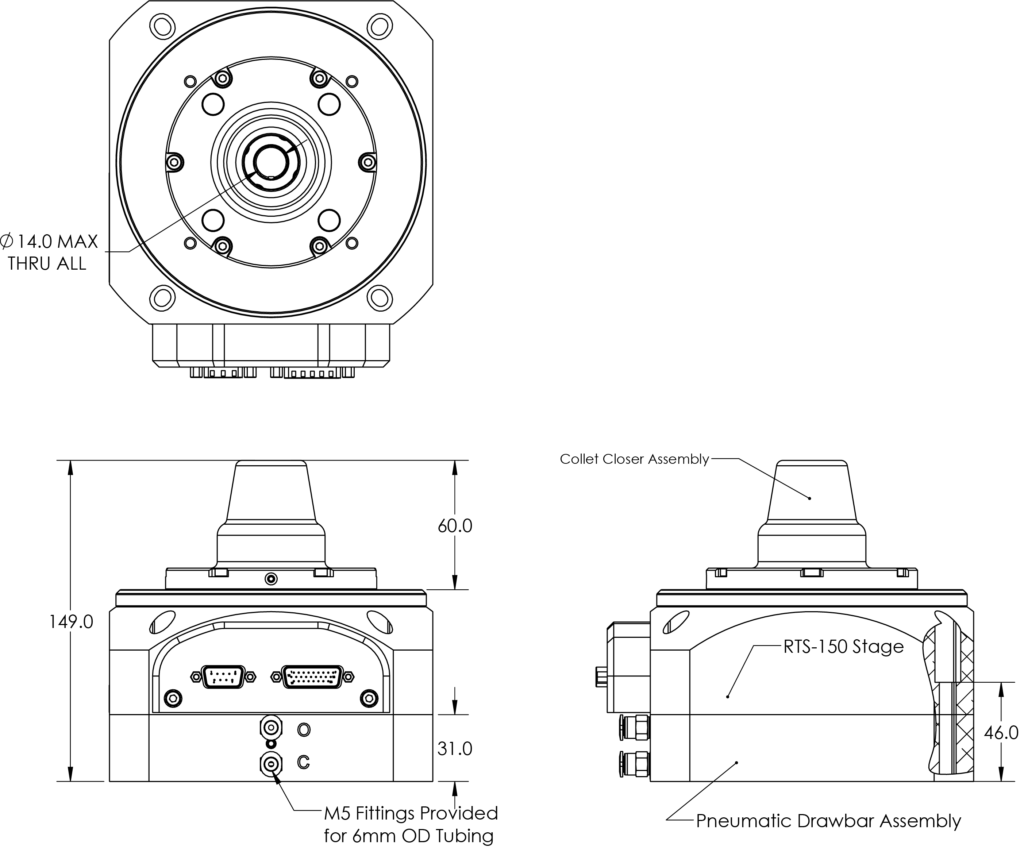

Features

High Precision RTS-150 Rotary Stage

Compatible with 3C Lathe Collets

Integrated Pneumatic Actuation

Ø 14.0mm through bore

Low-Inertia Design

Dead-Length Collet Closing

Specifications

Air Pressure Range (PSI):	60-90
Air Quality Required:	ISO8573-1:2010 Class 3.4.3
Angular Accuracy +/- (arc-sec):	30
Angular Repeatability +/- (arc-sec):	4.0
Collet Type:	3C (13.0mm Maximum Diameter)
Piston Surface Area (mm²):	2585
Radial Runout of Collet Bore (µm):	<30
Rotational Inertia (kg•m²):	0.0035
Stage Mass (kg):	5.9
