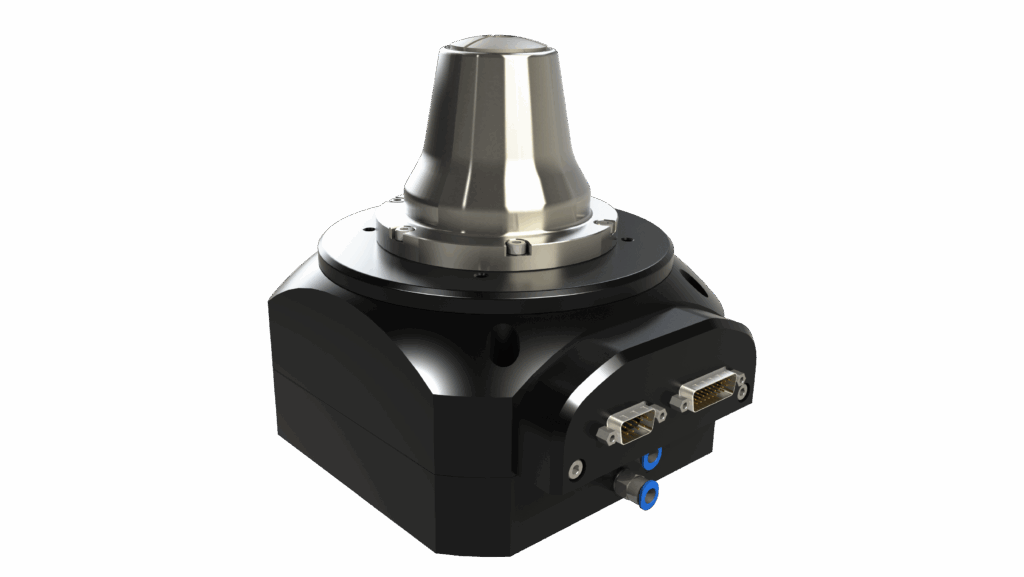

RTS-150-5C

Precision Rotary Stage with Pneumatic 5C Collet Integration

Do you have questions? Contact our Experts: (866) 906-2709

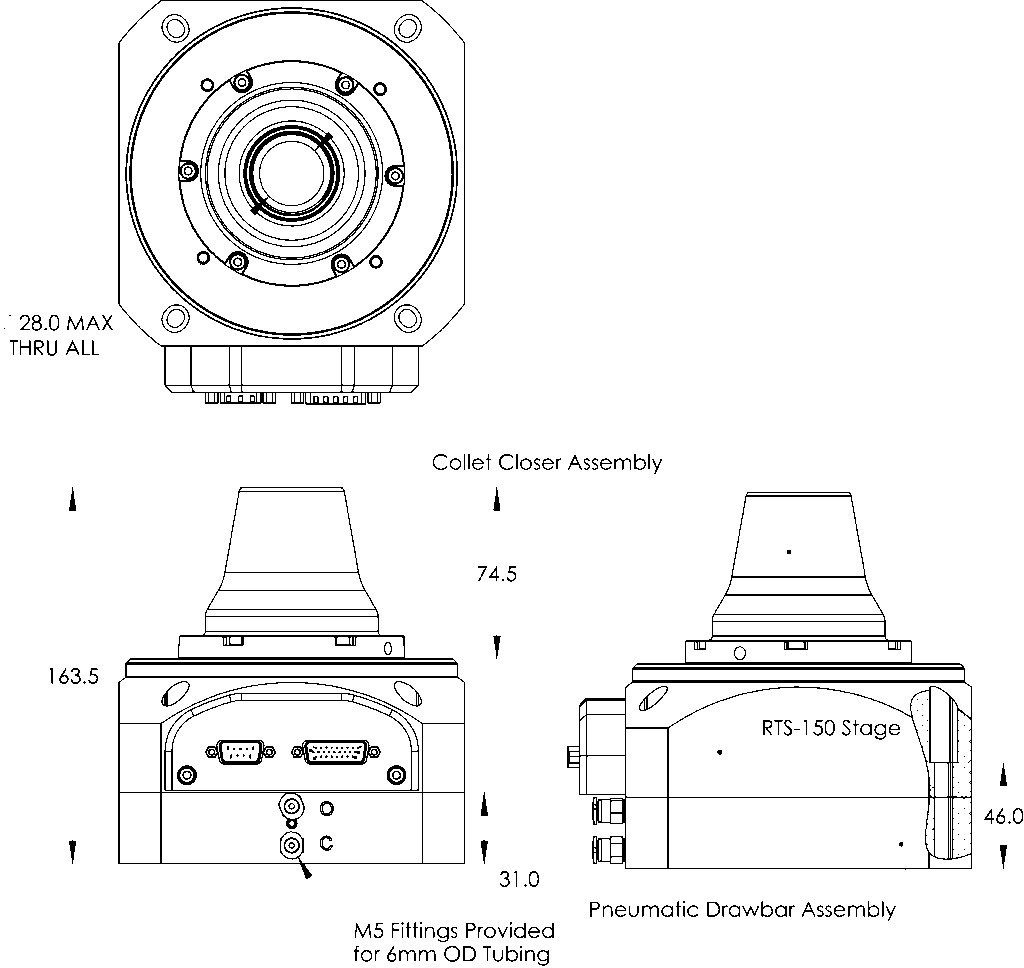

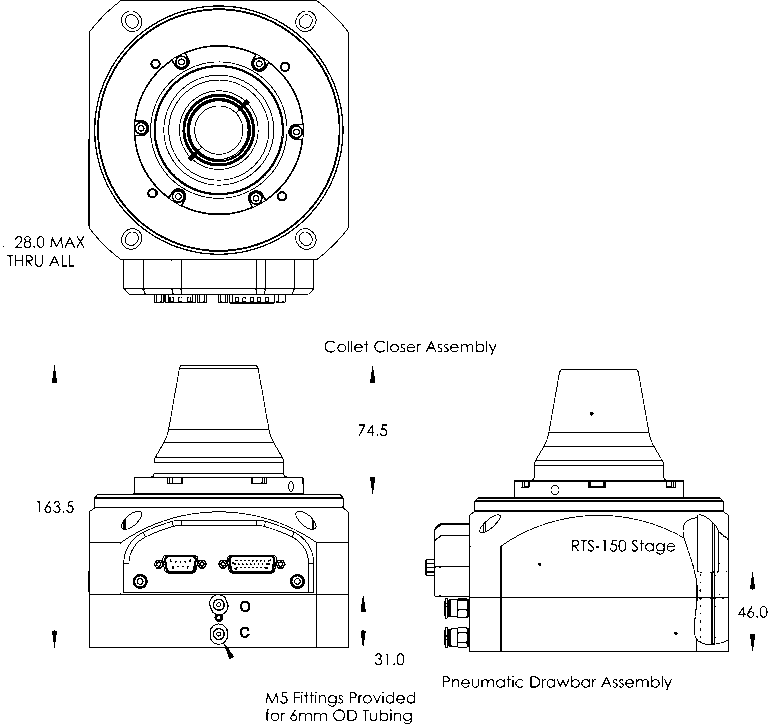

Overview

The RTS-150-5C is a high-precision rotary motion system with integrated 5C work holding. Designed specifically for large-tube laser processing, it offers excellent angular accuracy, runout, wobble, and smooth low-speed profiling. It’s low-friction pneumatic drawbar design enables precise clamping force adjustment. For more specific details on the base stage, please see the datasheet for the RTS-DD-150-BB-(C/D/E)-A-S-0-00. Contact Griffin Motion for further details on the product, pricing or lead time.

Features

High Precision RTS-150 Rotary Stage

Compatible with 5C Lathe Collets

Integrated Pneumatic Actuation

Ø 28.0mm through bore

Low-Inertia Design

Dead-Length Collet Closing

Specifications

Air Pressure Range (PSI):	60-90
Air Quality Required:	ISO8573-1:2010 Class 3.4.3
Angular Accuracy +/- (arc-sec):	30
Angular Repeatability +/- (arc-sec):	4.0
Collet Type:	5C (27mm Maximum Diameter)
Piston Surface Area (mm²):	2645
Radial Runout of Collet Bore (µm):	<30
Rotational Inertia (kg•m²):	0.0033
Stage Mass (kg):	5.8
