Rotary Stages

RTS-200

190mm Diameter Precision Rotary Stage

Product SKU:: RTS-DD-200

Do you have questions? Contact our Experts: (866) 906-2709

Overview

The RTS-DD Series Rotary tables are compact, direct drive, precision positioning tables designed for laboratory, factory automation and semiconductor processing equipment.

Features

Compact Low-Profile Design

Continuous 360° rotation

65mm through bore

High Resolution Encoder

Precision index mark for homing

Direct drive brushless servo motor

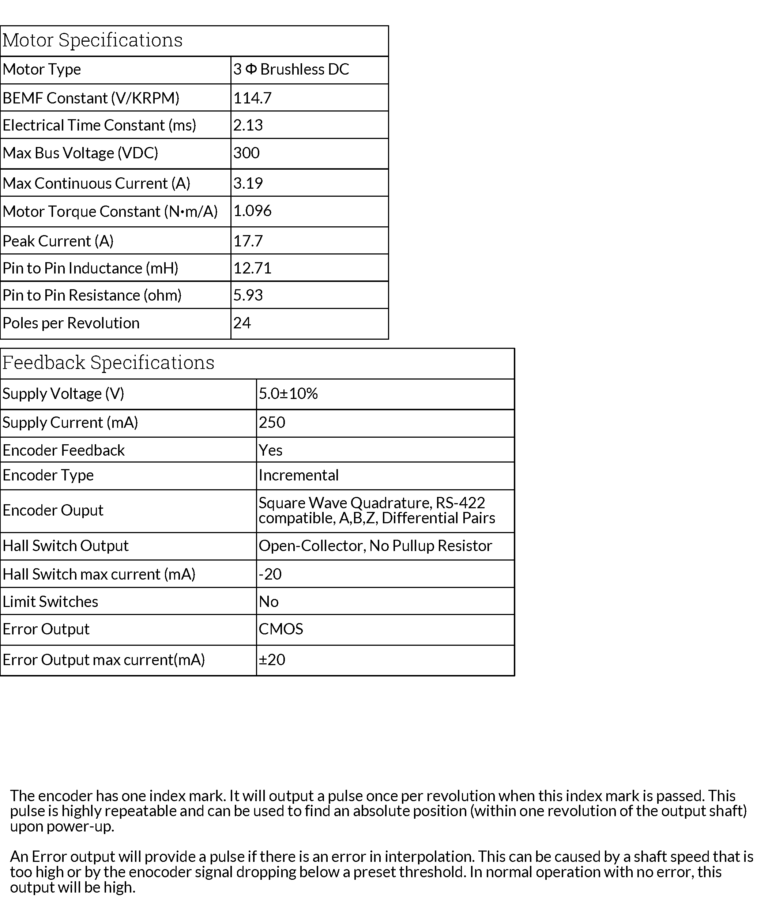

Specifications

Rotational Accuracy (arc-sec):	Down to 10.0
Rotational Repeatability (arc-sec):	Down to 1.0
Travel Range (deg):	360 continuous
Drive Type:	Direct Drive

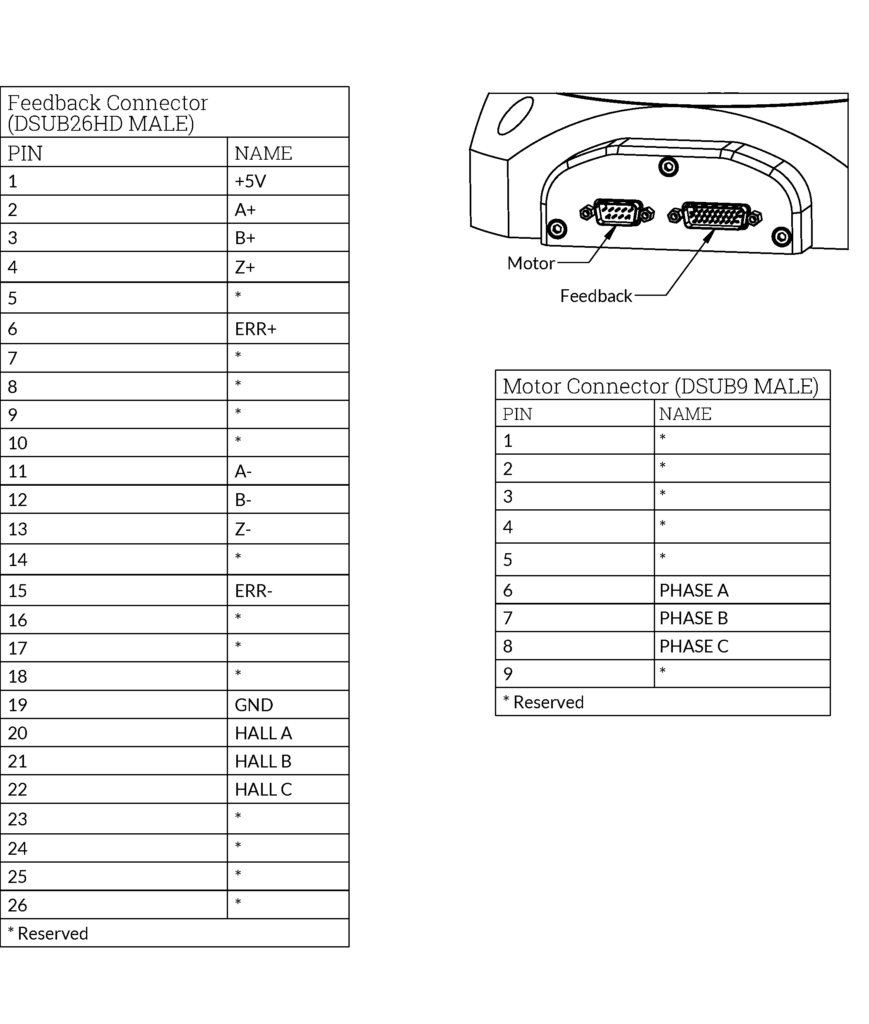

Encoder Output:	A quad B, Sin-Cos (1Vpp) or BiSS C (unidirectional)
Force X:	250
Force Y:	250
Force Z:	500
Moment X:	25
Moment Y:	25
Axial Runout (µm):	Down to 4.0µm
Radial Runout (µm):	Down to 4.0µm
Wobble (±arc-sec):	Down to 4.0
