Rotary Stages

HTR-DD-200-AA-M-A-S-0-00

High-Torque 200mm Precision Rotary Table

Product SKU:: HTR-DD-200-AA-M-A-S-0-00

Do you have questions? Contact our Experts: (866) 906-2709

Overview

The HTR-DD Series Rotary tables are direct drive, precision positioning tables designed for laboratory, factory automation and semiconductor processing equipment. The high torque brushless direct drive technology eliminates backlash and improves reliability by minimizing sliding friction throughout the stage. The large bore allows onvenient routing of tubing and cabling for application requirements. Positioning resolution can be selected, with most controls, to meet the needs of the final application.

Features

Continuous 360° rotation

75mm through bore

High resolution absolute encoder

High torque, direct drive brushless servo motor

Specifications

Additional Options:	No Additional Options
Drive Type:	Direct Drive
Encoder Output:	BiSS C (uni-directional) 26 bit

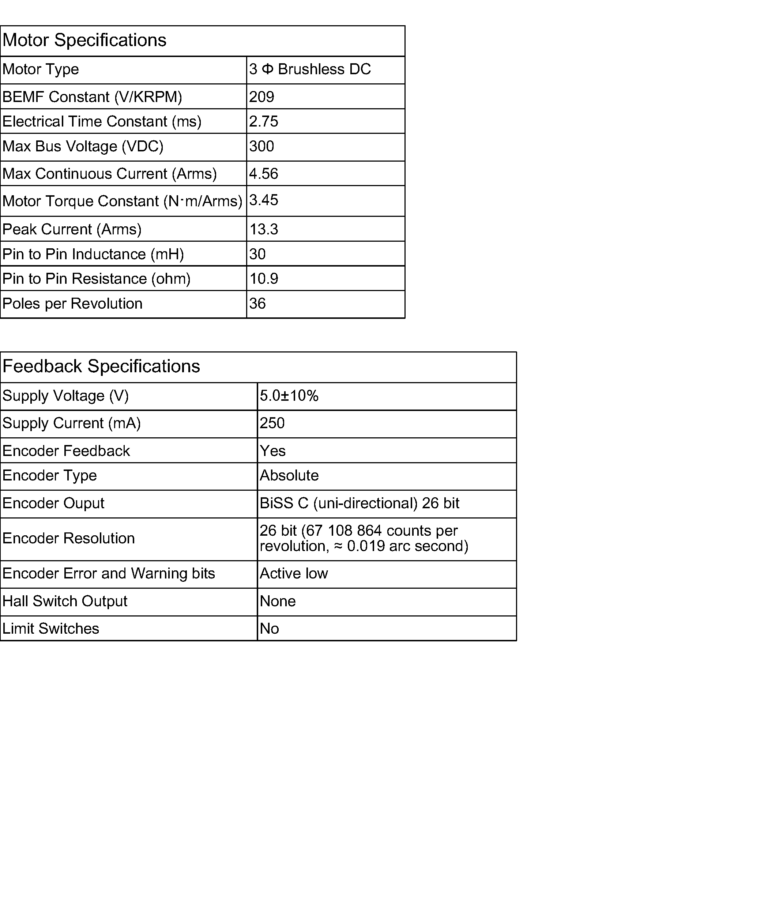

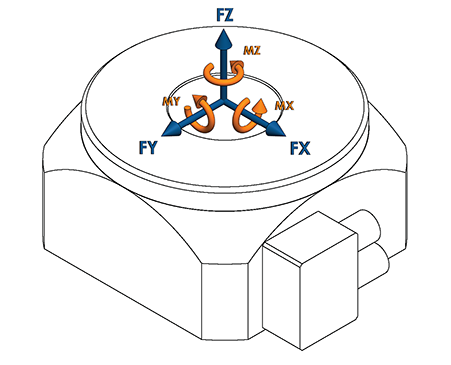

Force X:	250
Force Y:	250
Force Z:	500

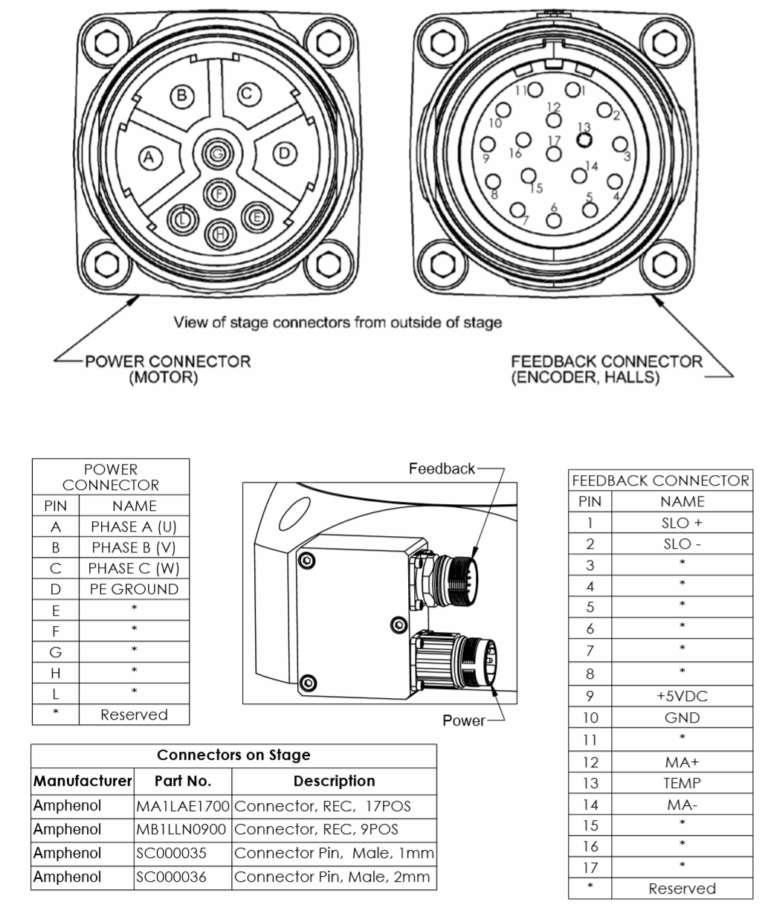

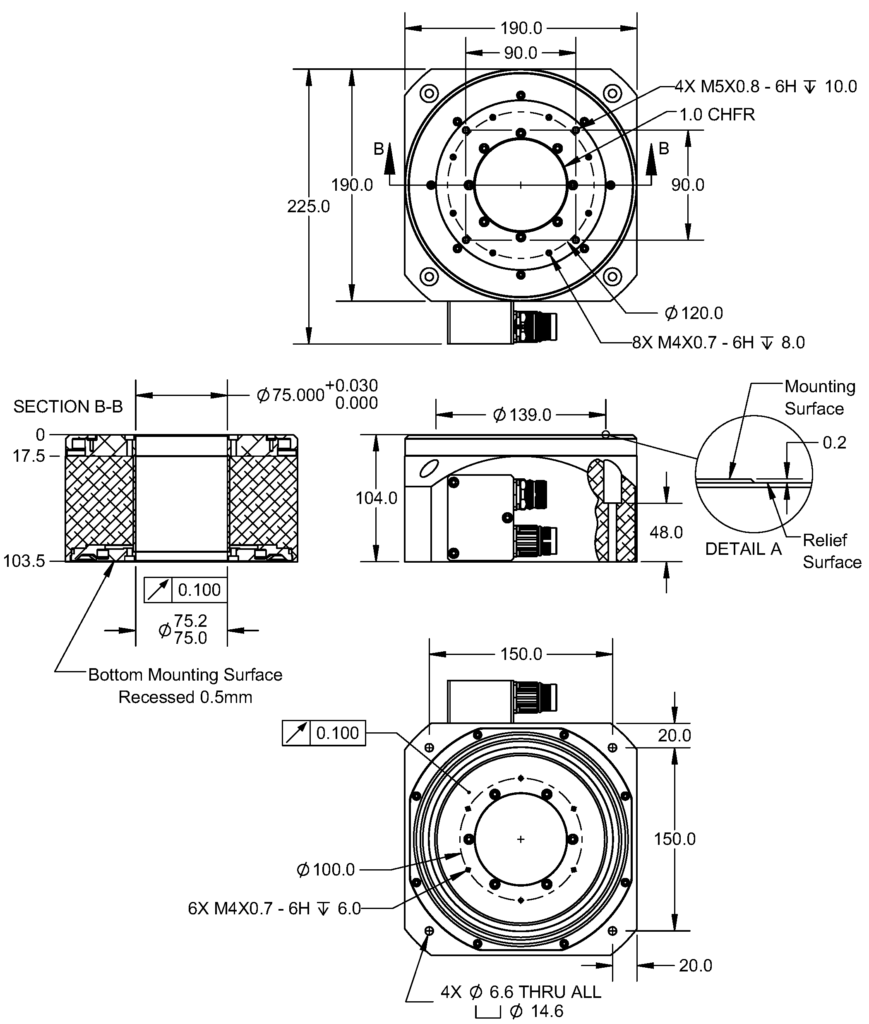

Height (mm):	104
Length (mm):	225
Limit Switches:	No
Moment X:	25
Moment Y:	25
Moment Z:	12
Radial Runout (µm):	10
Rotational Inertia (kgm):	0.008314
Stage Mass (kg):	8.98
Precision Class:	Standard Precision
Travel Range (deg):	360 continuous
Width:	190
