- Compact Low-Profile Design
- 100mm Travel
- Lead screw
- Optical limit switches with home
- Stepper motor drive
- Crossed Roller Bearings

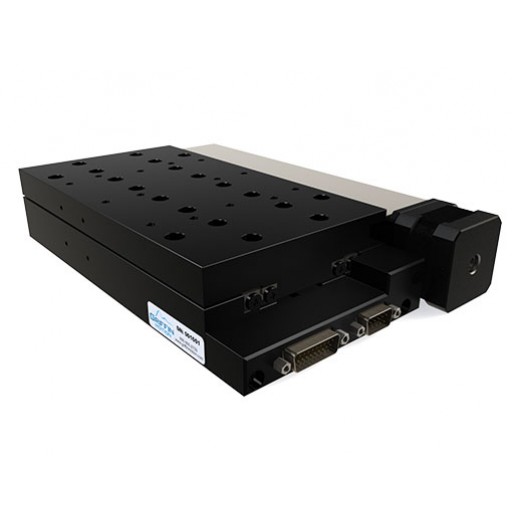

The LNS-HS Series stages are designed for a variety of applications. This compact low profile stage offers cost effective motion for laboratory and automation needs. This stage offers the same levels of flatness and straightness as the BS series tables. The hybrid stepper drive and crossed roller bearings provide smooth motion. The drive has an inherent braking action allowing it to maintain position when the motors are not powered. The LNS-BS Series stages can be stacked to create X, Y and Z motion. The stage can operate in any orientation.
| Product Family | LNS |
| Encoder Type | Limit and Home Switch Only |
| Precision | Standard Precision |
| Additional Options | No Additional Options |
| Travel (mm) | 100 |
| Drive Type | Hybrid Stepper Leadscrew |
| Motor | Hybrid Stepper lead screw |
| Precision Class | Standard Precision |
| Accuracy (μm) | 25 |
| Force X (N) | 75 |
| Force Y (N) | 250 |
| Force Z (N) | 500 |
| Flatness (μm) | 10 |
| Height (mm) | 45 |
| Length (mm) | 240 |
| Limit Switches | Yes |
| Repeatability (μm) | 5 |
| Linear Velocity (mm/s) | 25 |
| Moment X (N·m) | 60 |
| Moment Y (N·m) | 275 |
| Moment Z (N·m) | 110 |
| Moving Mass X (kg) | 1.67 |
| Encoder Type | Limit and Home Switch Only |
| Pitch (arc-sec) | 12 |
| Stage Mass (kg) | 3.67 |
| Stepper Motor Resolution | 200 |
| Straightness (μm) | 10 |
| Width (mm) | 155 |
| Yaw (arc-sec) | 12 |
