Linear Stages

LM7-BS

200mm Wide Ballscrew-Drive Linear Stage with Side Seals, Travels from 150 to 600mm

Product SKU:: LM7-BS

Do you have questions? Contact our Experts: (866) 906-2709

Overview

The LM7-BS is a ballscrew driven stage ideal for applications in optics, microscopy, medical device manufacturing and more. This stage offers micron-level precision, excellent repeatability, and exceptional durability. The ballscrew drive and optional power-off brake enable safe positioning in vertical applications. Crafted with high-quality materials, precision-engineered components and durable side seals, the LM7-BS is built to last, making it a reliable choice for demanding industrial settings. Invest in the LM7-BS linear stage and redefine the possibilities for precision motion in your application.

Features

150-600mm Travel

Brushless Servo Motor

Zero Backlash Ballscrew

High-Resolution Rotary or Linear Encoder

Optical Limit Switches and Home Index

Silicone Side Seals

Optional Power-Off Brake

Specifications

Mechanical Accuracy:	Travel Dependent, See Datasheet
Calibrated Accuracy:	±4.0µm
Bi-Directional Repeatability:	2.0µm
Maximum Velocity:	150 mm/s (250mm/s for "BF" Ballscrew)

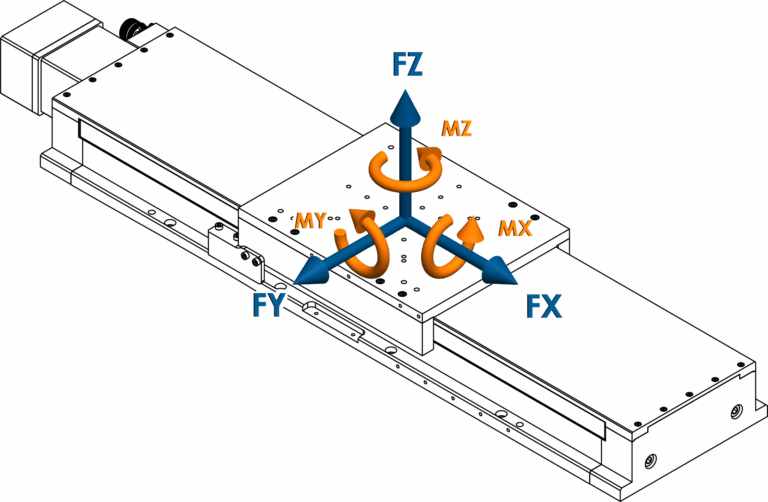

Continuous Motor Force, Fx:	700N (300N for "BF" Ballscrew)
Lateral Load Capacity, Fy:	1000N
Radial Load Capacity, Fz:	1500N
Moment X:	400Nm
Moment Y:	600Nm
Moment Z:	200Nm
Dynamic Mass:	4.5kg
Flatness (Off-Axis Z Motion):	Travel Dependent, See Datasheet
Straightness (Off-Axis Y Motion):	Travel Dependent, See Datasheet
Pitch Motion:	Travel Dependent, See Datasheet
Yaw Motion:	Travel Dependent, See Datasheet

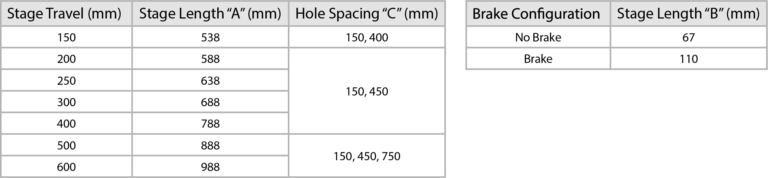

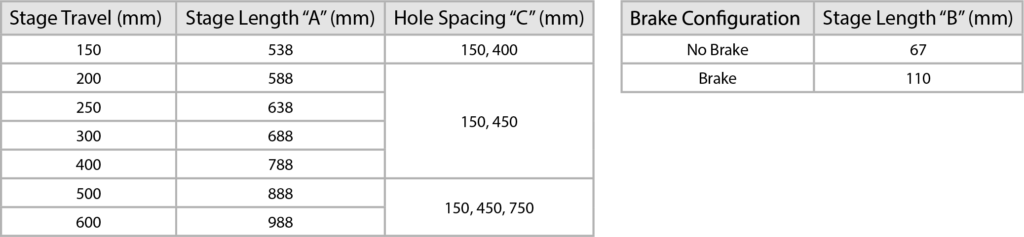

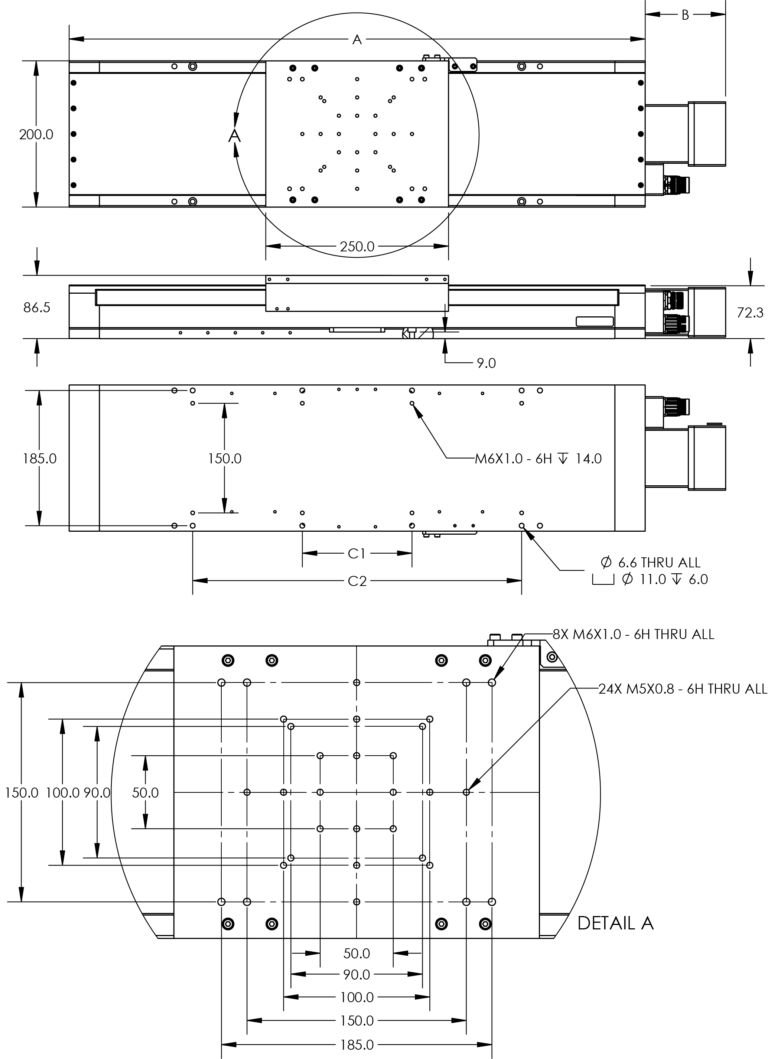

Stage Mass:	Travel Dependent, See Datasheet
