Linear Stages

LM7-LM

200mm Wide Linear Motor Driven Stage with Side Seals, Travels from 150 to 1000mm

Do you have questions? Contact our Experts: (866) 906-2709

Overview

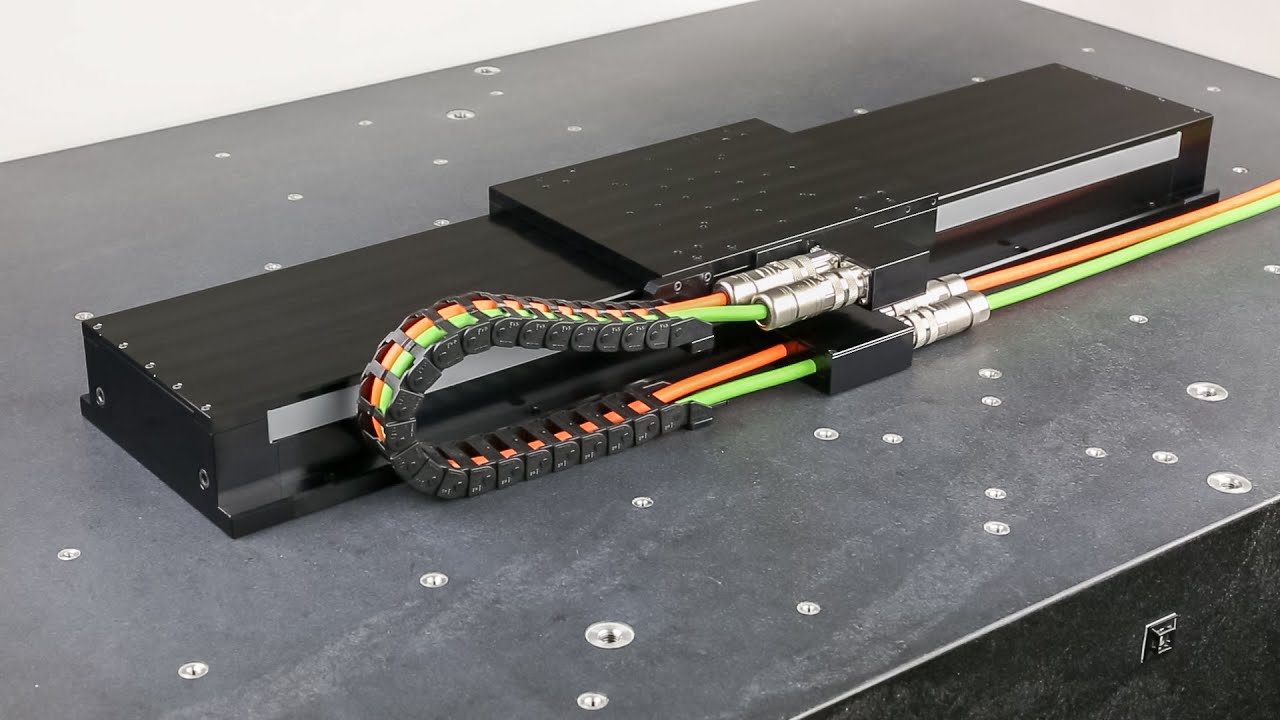

The LM7-LM is a linear motor driven stage ideal for applications in optics, microscopy, medical device manufacturing and more. This stage offers micron-level precision, excellent repeatability, and exceptional stability. The iron core linear motor has incredible force density, enabling high acceleration and process throughput. Crafted with high-quality materials, precision-engineered components and durable side seals, the LM7-LM is built to last, making it a reliable choice for demanding industrial settings. Invest in the LM7- LM linear stage and redefine the possibilities for precision motion in your application.

Features

150-1000mm Travel

Ironcore Linear Servo Motor

High-Resolution Linear Encoder

Optical Limit Switches and Home Index

Silicone Side Seals

Long-Life Silicone Ribbon Cable

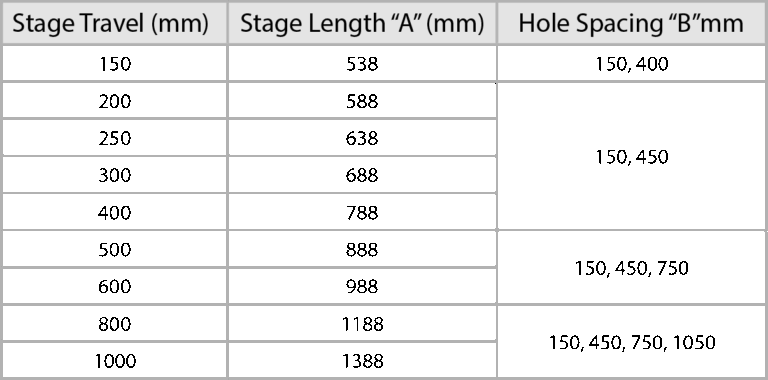

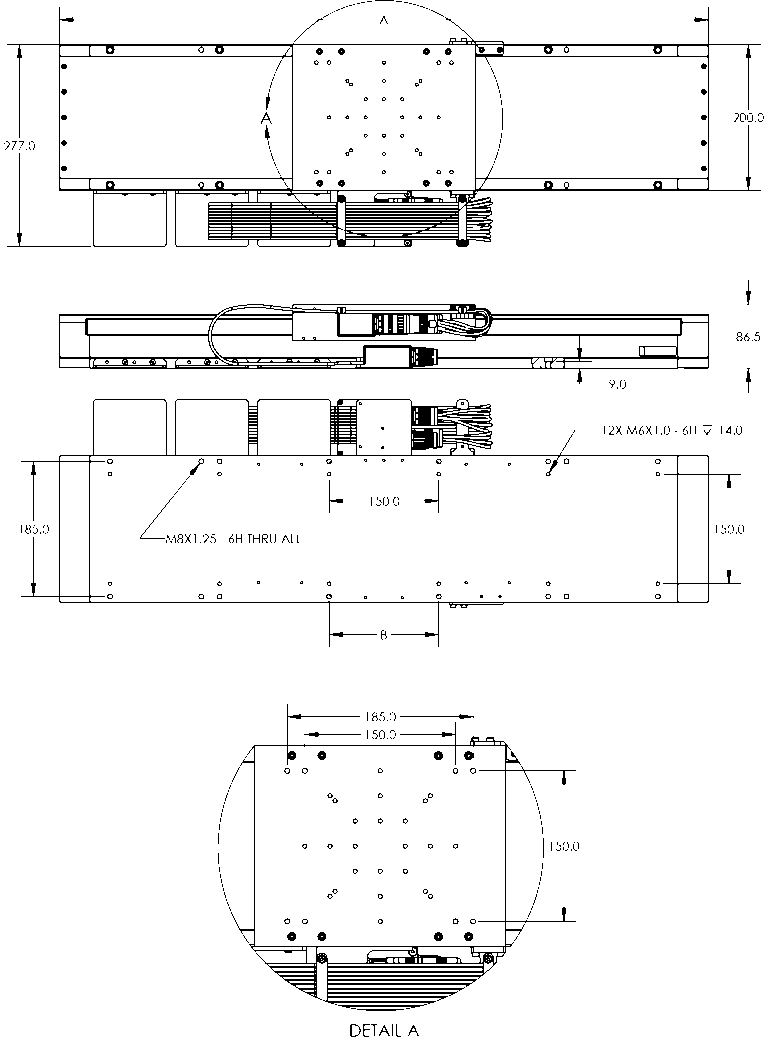

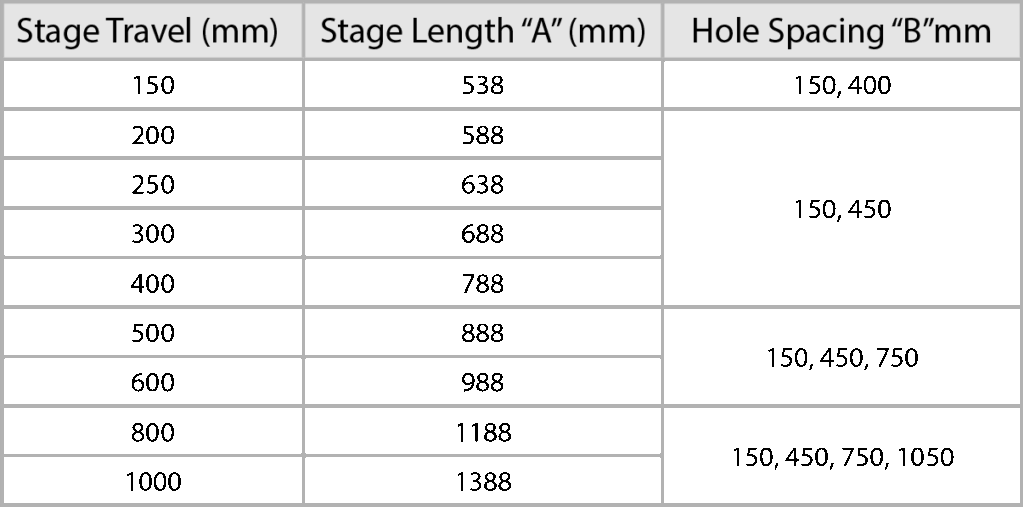

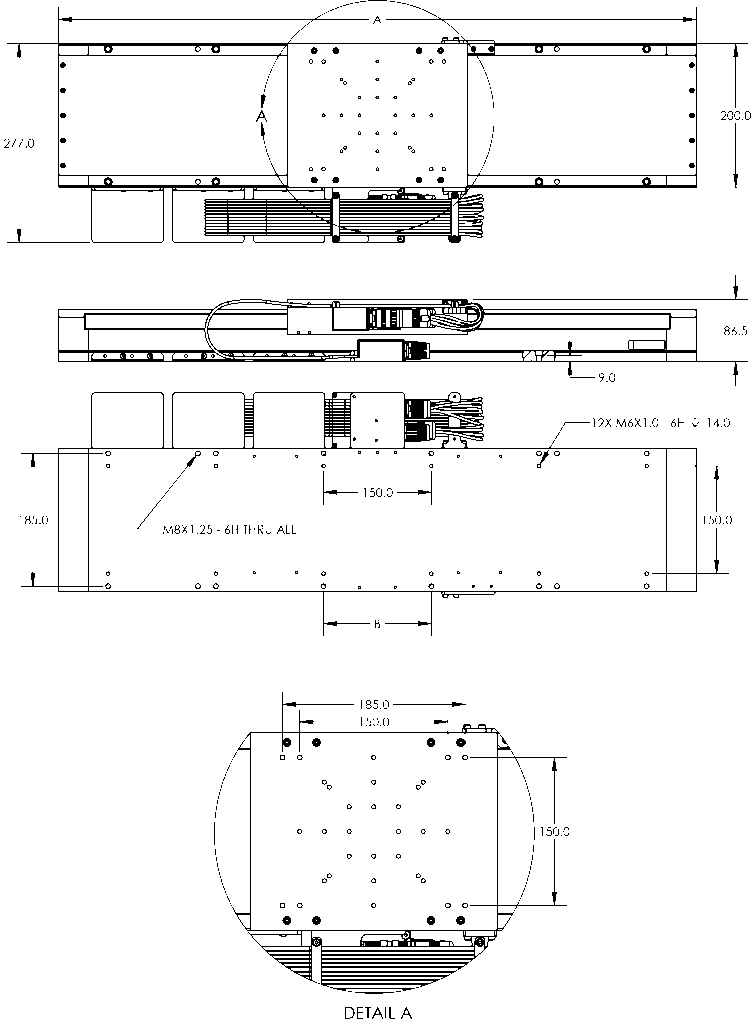

Specifications

Mechanical Accuracy:	Travel Dependent, See Datasheet
Calibrated Accuracy:	±2.0µm
Bi-Directional Repeatability:	1.0µm
Maximum Velocity:	2,000mm/s (1Vpp Encoder)

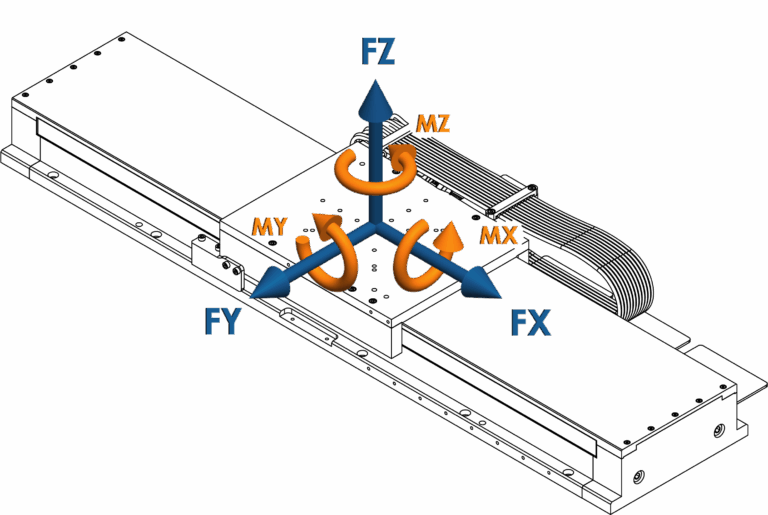

Continuous Motor Force, Fx:	250N
Lateral Load Capacity, Fy:	1000N
Radial Load Capacity, Fz:	1500N
Moment X:	400Nm
Moment Y:	600Nm
Moment Z:	200Nm
Dynamic Mass:	6.5kg
Flatness (Off-Axis Z Motion):	Travel Dependent, See Datasheet
Straightness (Off-Axis Y Motion):	Travel Dependent, See Datasheet
Pitch Motion:	Travel Dependent, See Datasheet
Yaw Motion:	Travel Dependent, See Datasheet
Stage Mass:	Travel Dependent, See Datasheet
