Linear Stages
LM9-LM
280mm Wide Linear Motor Driven Stage with Side Seals, Travels from 200 to 1000mm
- Product SKU:
- LM9-LM
Do you have questions? Contact our Experts: (866) 906-2709
Overview
The LM9-LM is a heavy duty linear stage ideal for applications in optics, microscopy, medical device, and more. Offering micron-level precision, excellent repeatability, and exceptional stability, the LM9-LM ensures smooth and reproducible movements with high levels of positioning accuracy. Crafted with high-quality materials, precision-engineered components and durable side seals, the LM9-LM is built to last, making it a reliable choice for demanding industrial settings. Invest in the LM9-LM linear stage and redefine the possibilities for precision motion in your application.
Features
• 300-1000mm Travels Available
• High Force Ironless Linear Motor
• Optical Limit Switches and Home Index
• High Resolution Linear Encoder, 1Vpp and RS422 Available
• Heavy Duty Construction
• Recirculating Linear Bearings
• Silicone Side Seals
Specifications

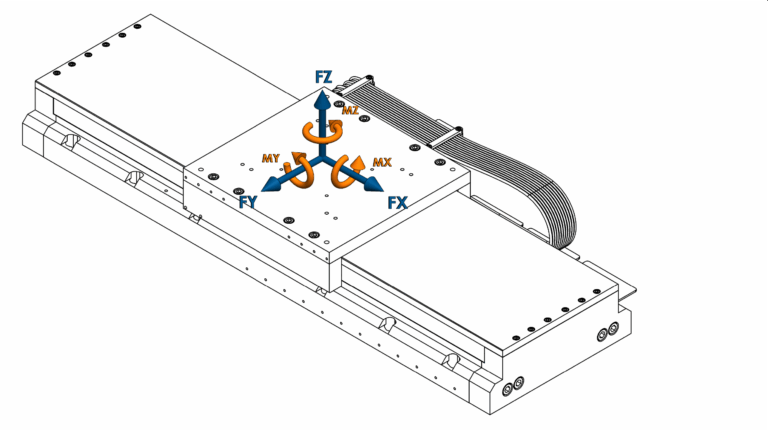

| Drive Type: | Linear Motor |
|---|---|
| Force X Continuous: | 199 |
| Force Y: | 1500 |
| Force Z: | 2000 |
| Moment X: | 400 |
| Moment Y: | 750 |
| Moment Z: | 250 |
| Moving Mass X: | 12 |

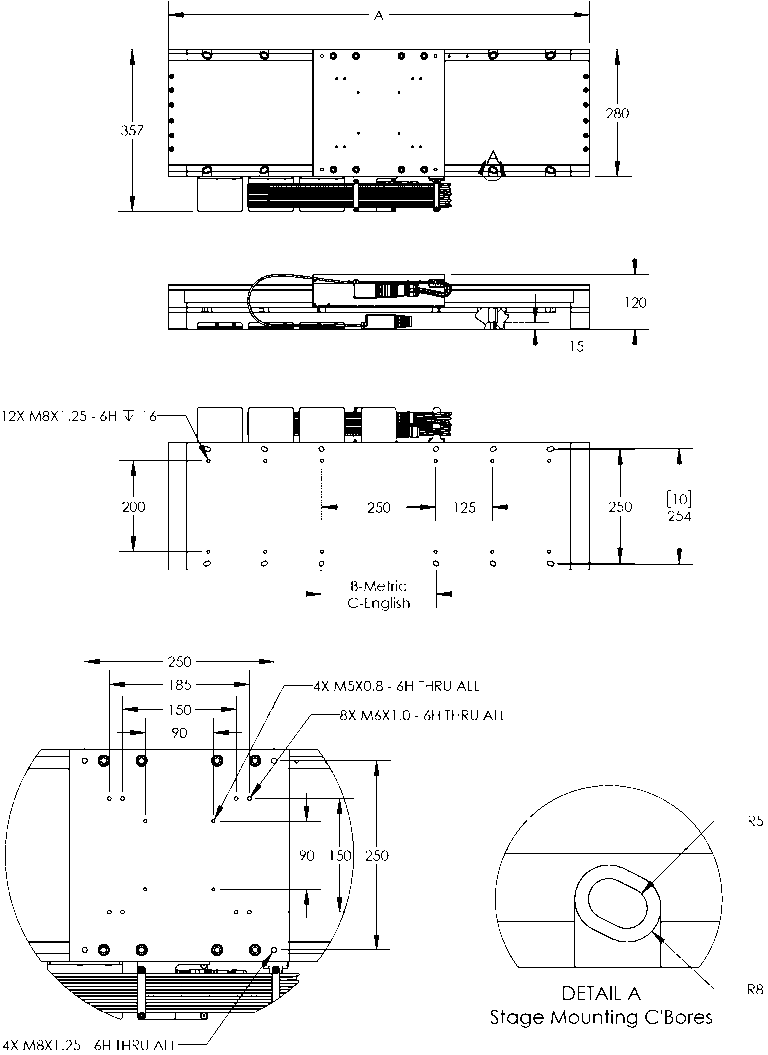

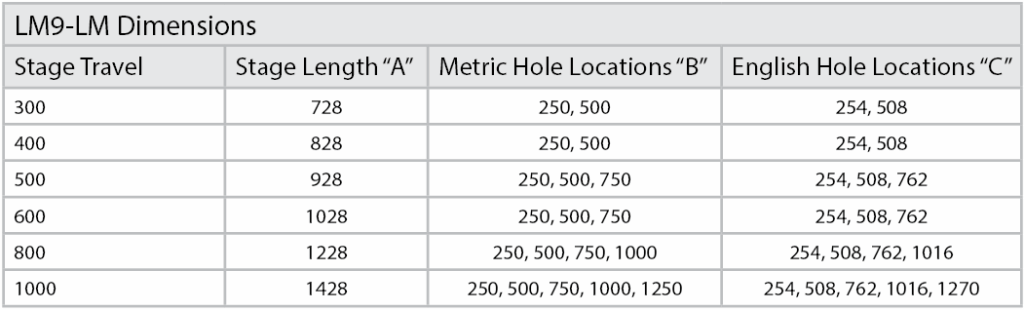

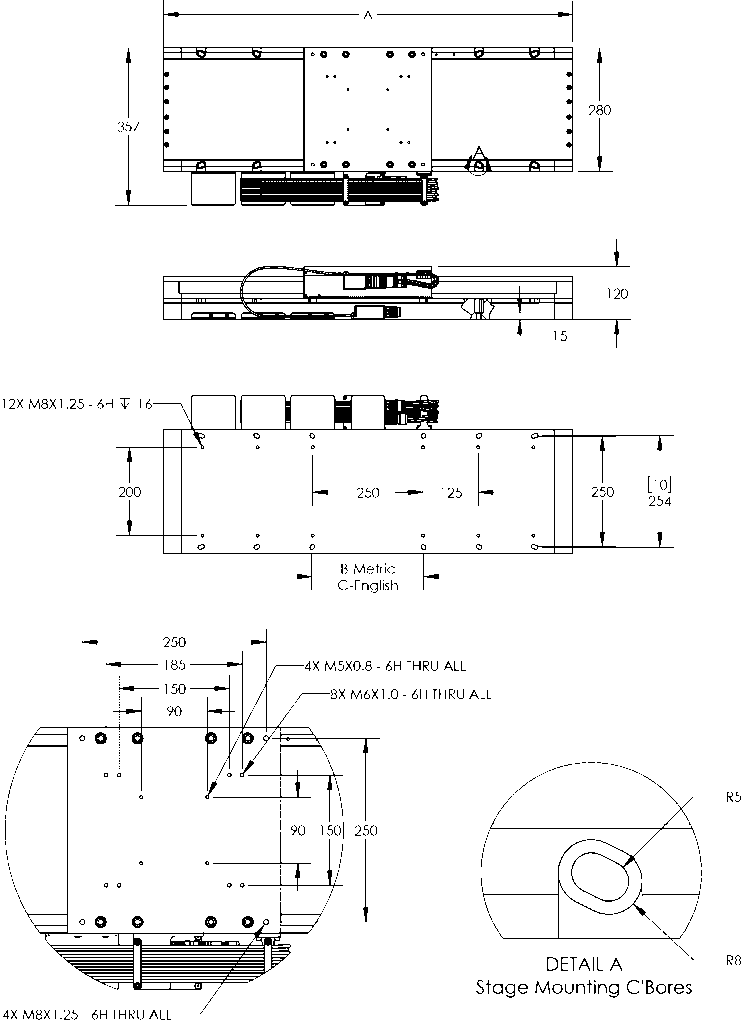

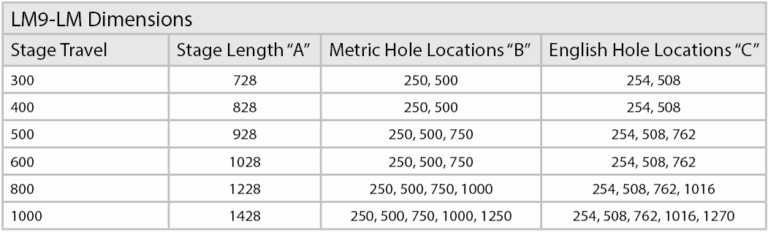

Mechanical Details
Downloads
