Linear Stages

LM3-LM

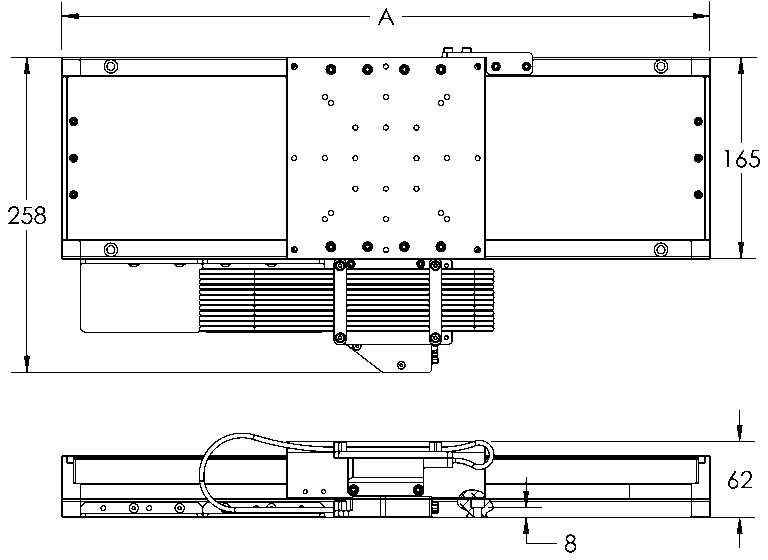

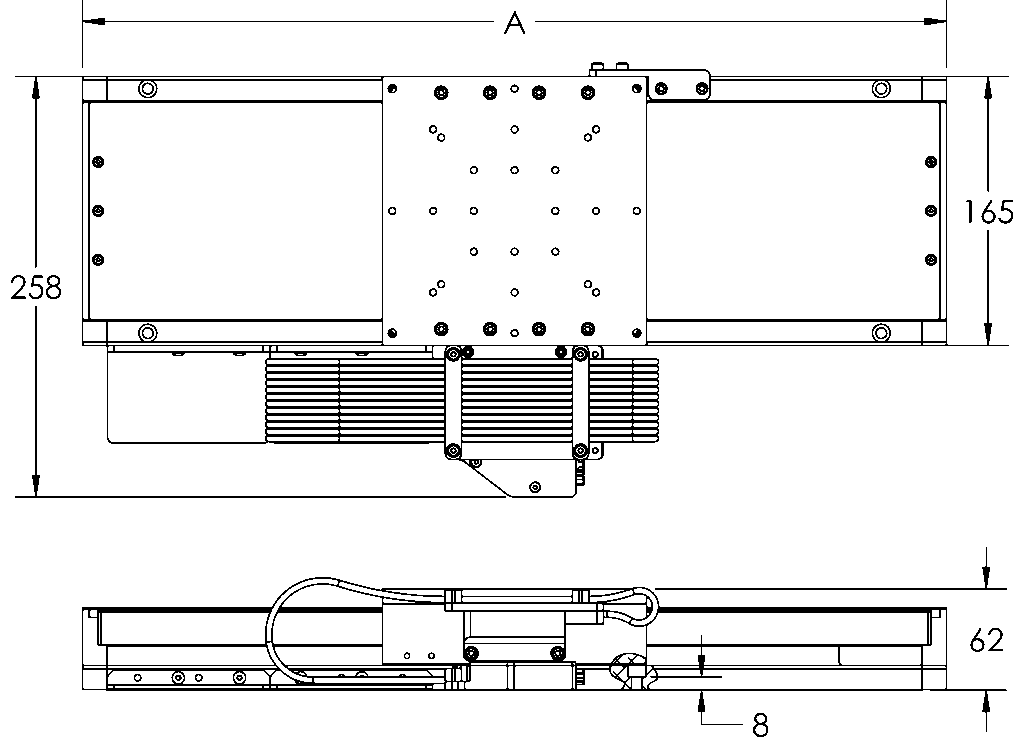

165mm Wide Linear Motor Driven Stage with Side Seals, Travels from 100 to 800mm

Product SKU:: LM3-LM

Do you have questions? Contact our Experts: (866) 906-2709

Overview

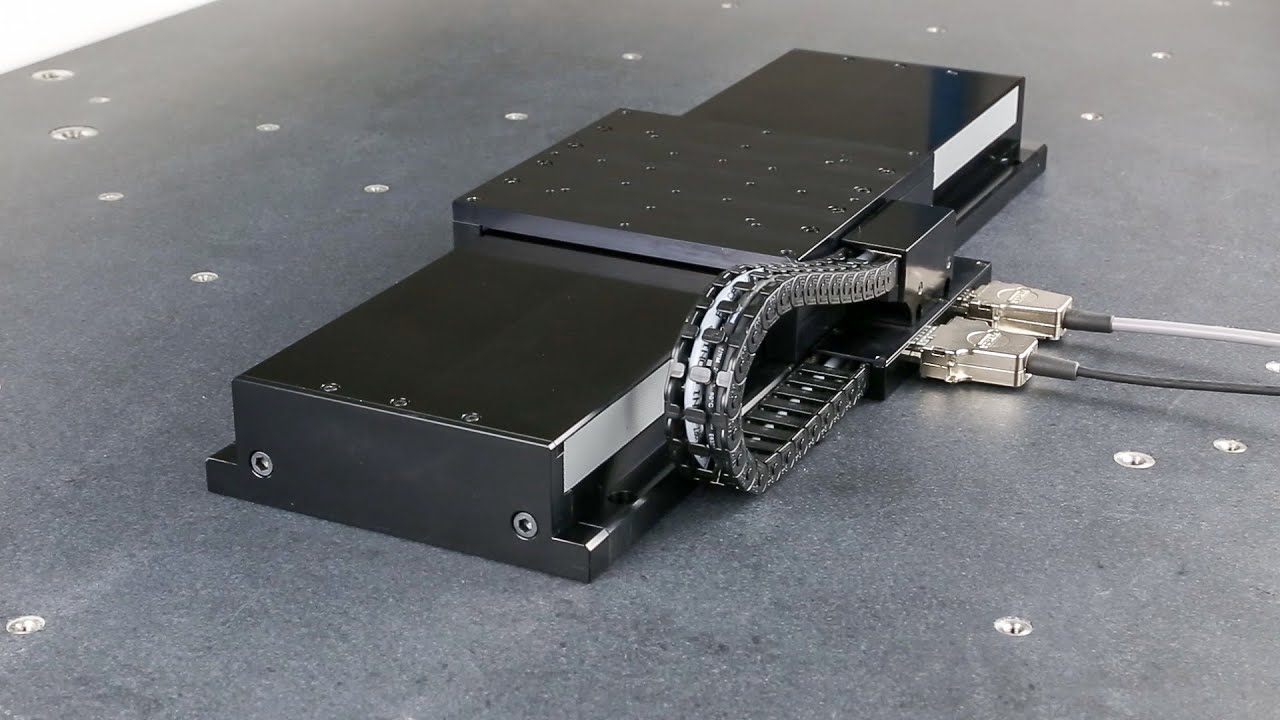

The LM3 Series stages are designed for a variety of applications. This compact low profile linear motor stage is built for high duty cycles and long life and attains high velocities for factory automation and semiconductor processing equipment. This stage has exceptional levels of accuracy, repeatability, flatness and straightness. Recirculating ball linear ways and the linear motor offer extremely smooth operation and velocity control. The trackless cable minimizes vibrations and increases service life. Side seals and a hard cover make it an excellent choice for dirty environments. The LM3 Series stages can be stacked to create XY motion.

Features

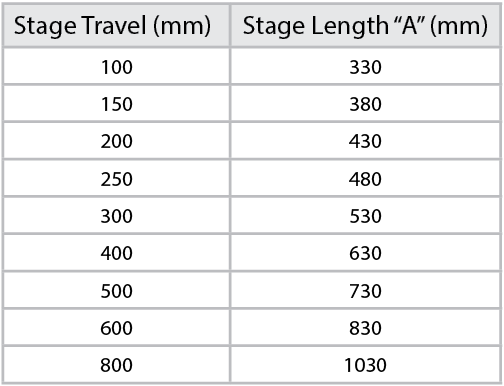

100-800mm Travels Available

Linear Motor

Optical limit switches with home

High resolution linear encoder, RS422 or 1Vpp

Recirculating ball linear ways

Side seals

Extended life trackless cable

Specifications

Accuracy (µm):	±2.0 (Calibrated)
Additional Options:	Side Seals
Drive Type:	Direct Drive
Encoder Output:	RS422 or 1Vpp

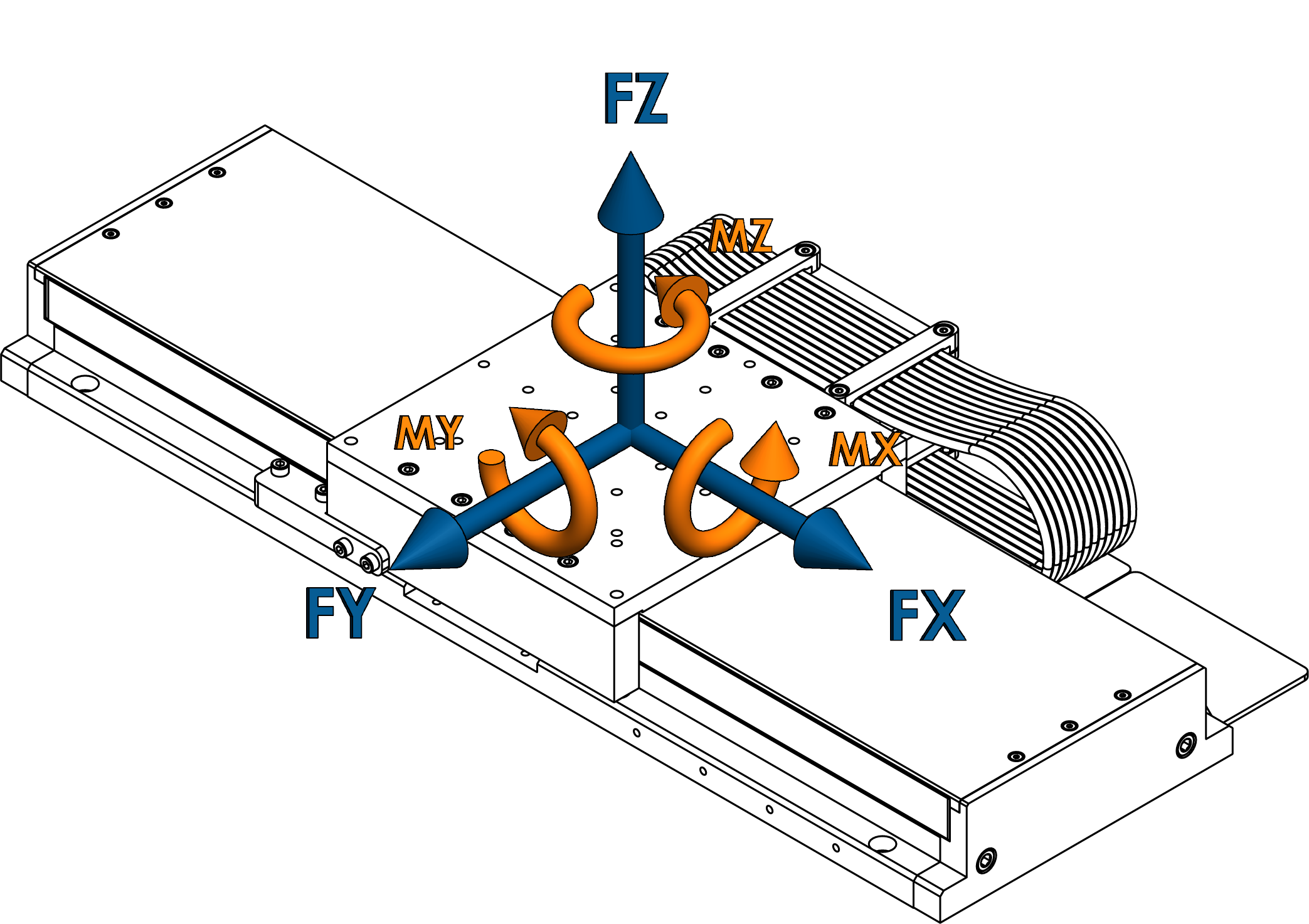

Force X Peak:	141
Force X Continuous:	41
Force Y:	200
Force Z:	440
Moving Mass X:	2.02
