Linear Stages
LM3-BS

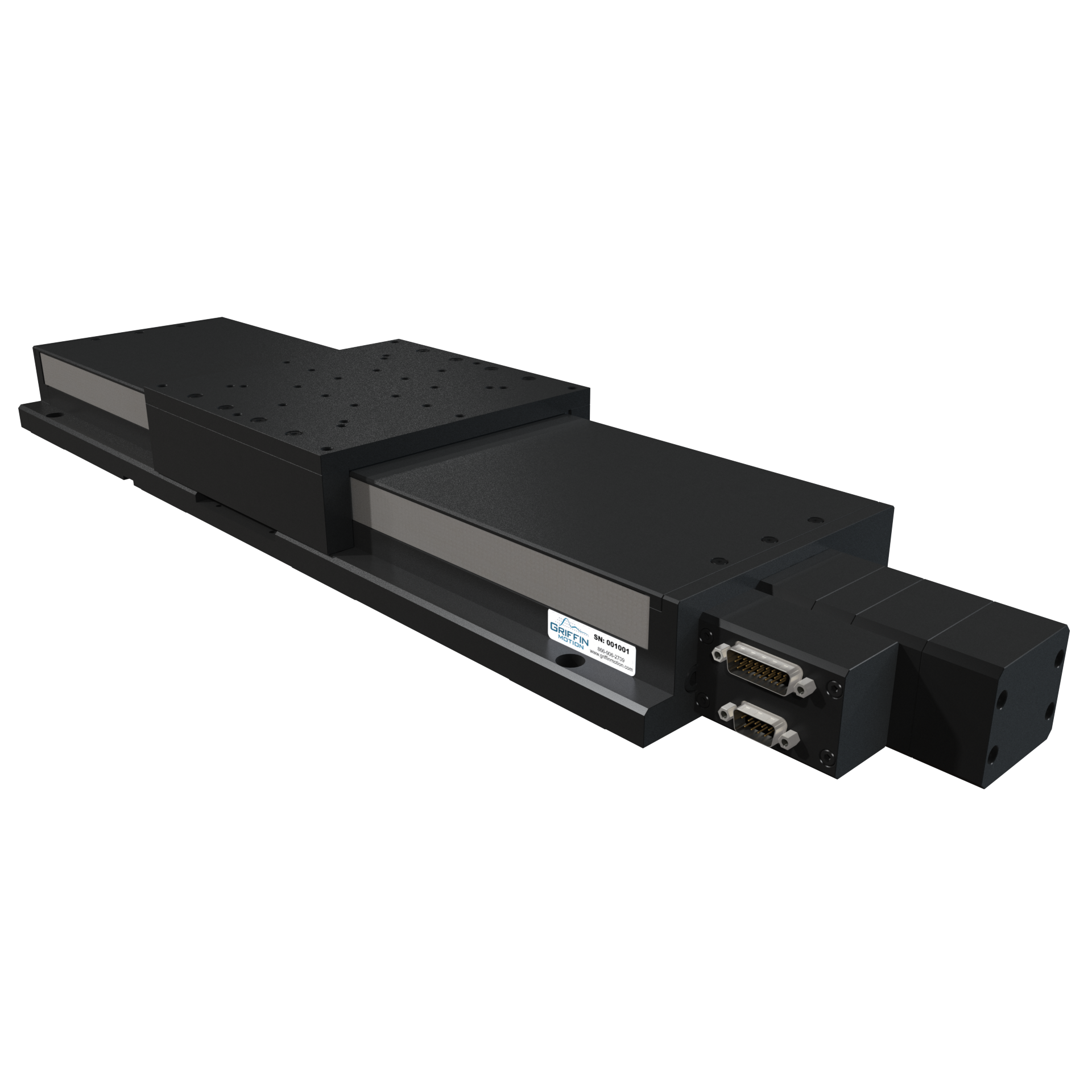

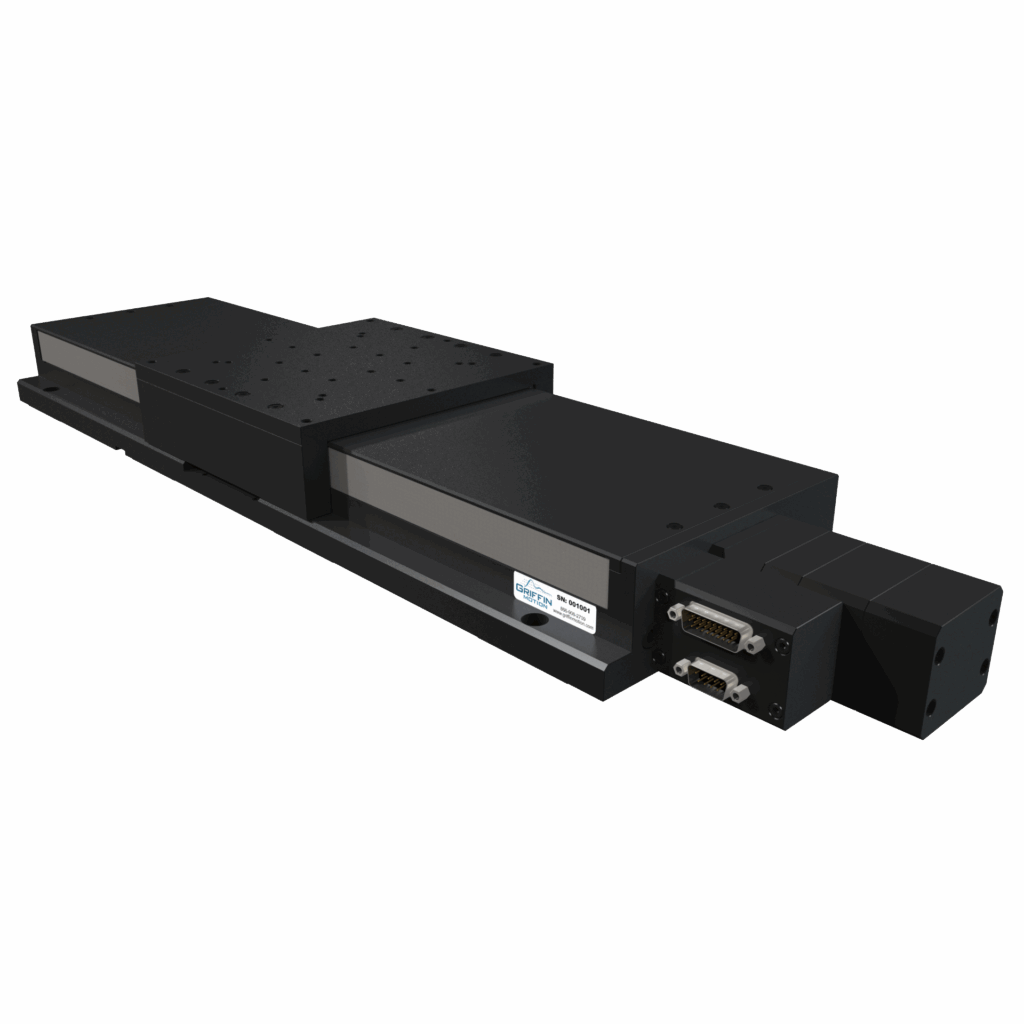

165mm Wide Ballscrew Driven Linear Stage with Side Seals, Travels from 100 to 300mm
- Product SKU:
- LM3-BS
Do you have questions? Contact our Experts: (866) 906-2709
Overview
The LM3-BS is a light-duty linear stage ideal for applications in optics, microscopy, medical device, and more. Offering micron-level precision, excellent repeatability, the LM3-BS ensures smooth and reproducible movements with high levels of positioning accuracy. Crafted with high-quality materials, precision-engineered components and durable side seals, the LM3-BS is built to last. The optional power-off brake allows for vertical operation. Invest in the LM3-BS linear stage and redefine the possibilities for precision motion in your light-duty application.
Features
Precision ground ball screw drive
Optical limit and home switches
High resolution rotary encoder
Recirculating ball linear ways
Side seals
Optional power-off brake
Specifications
| Accuracy (µm): | ±4.0 (Calibrated) |
|---|---|
| Additional Options: | Side Seals, Optional Brake |
| Drive Type: | Ball Screw |
| Encoder Output: | A quad B, index |
| Encoder Resolution (µm): | 0.125 |
| Precision Class: | Standard Precision |
| Repeatability (µm): | 2 |

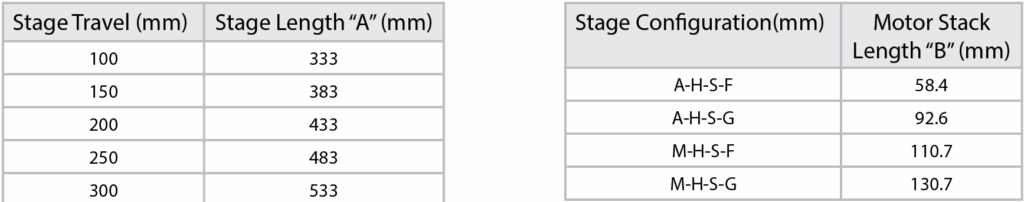

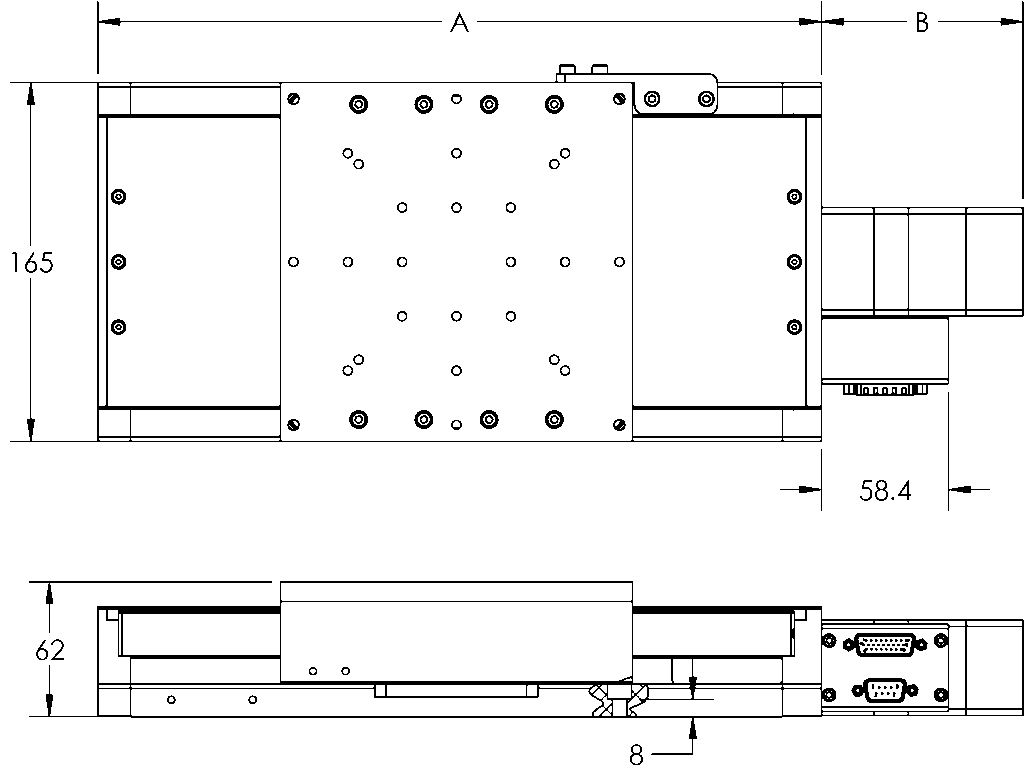

Mechanical Details
