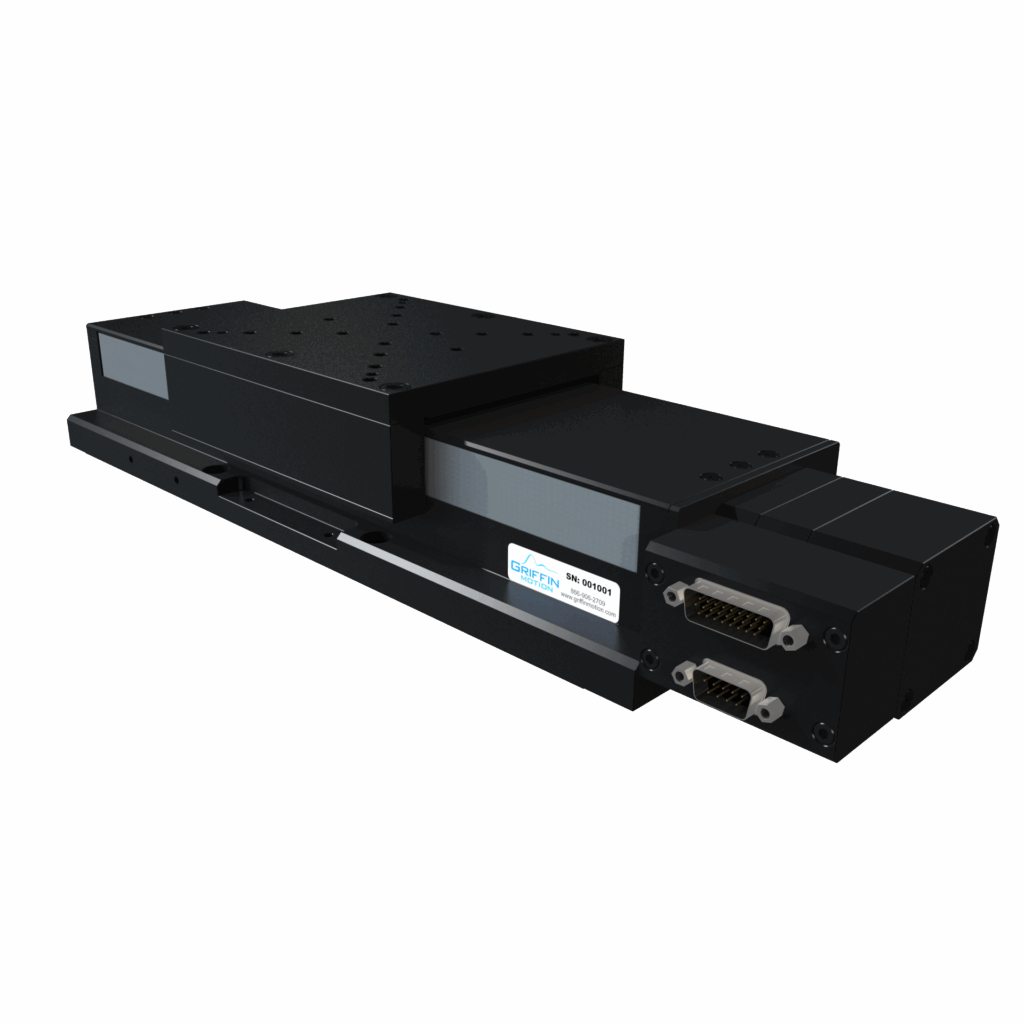

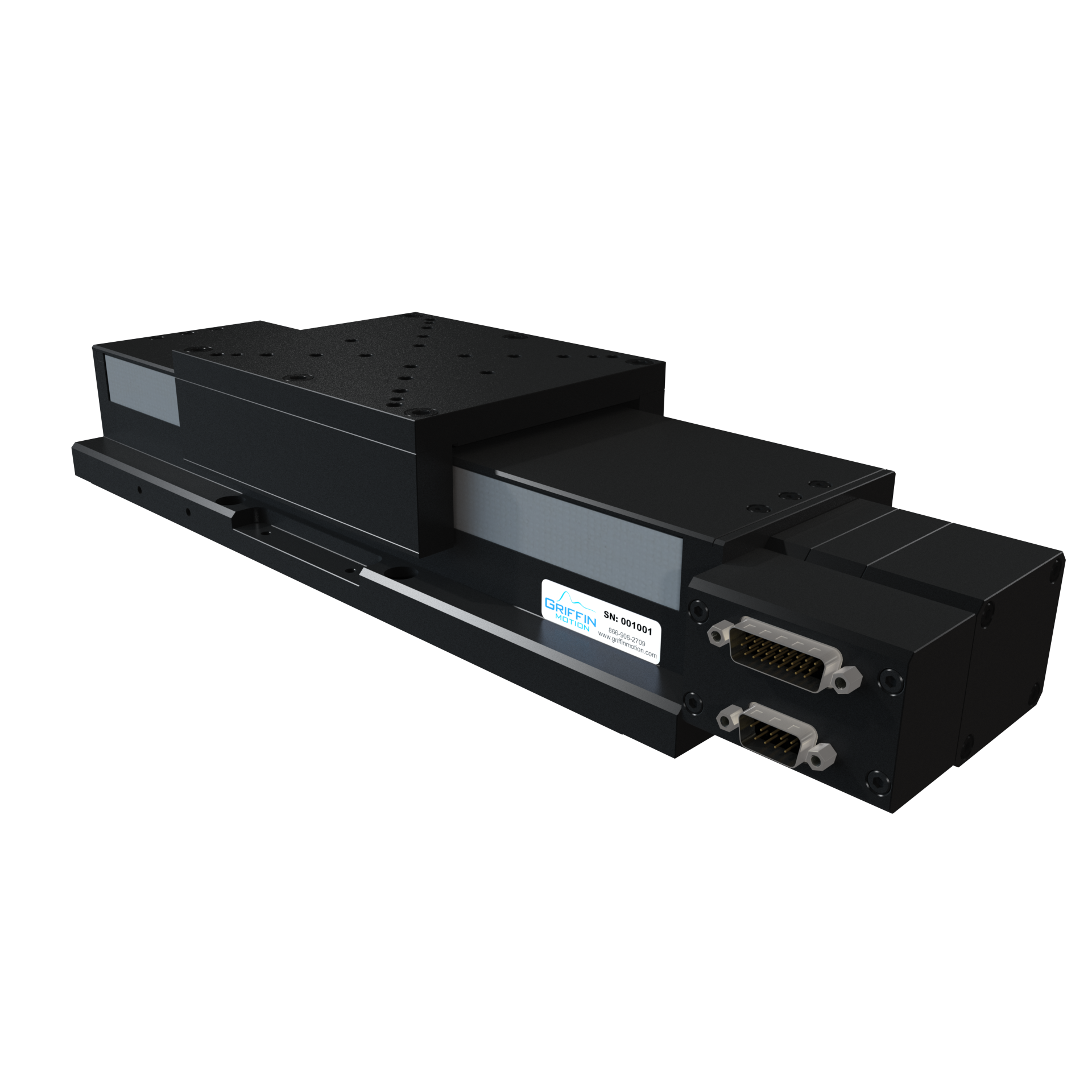

115mm Wide Ballscrew Driven Linear Stage with Side Seals, Travels from 50 to 300mm

Product SKU:: LM2-BS

Do you have questions? Contact our Experts: (866) 906-2709

Overview

The LM2 Series stages are designed for a variety of applications. This compact low profile linear stage is built for high duty cycles and long life and attains high velocities for factory automation and semiconductor processing equipment. This stage has exceptional levels of accuracy, repeatability, flatness and straightness. The recirculating ball linear ways and the precision ground ball screw offer extremely smooth operation and velocity control. Side seals and a hard cover make it excellent choice for dirty environments. The LM2 Series stages can be stacked to create XY motion.

Features

50-300mm Travel

Precision ground ball screw drive

Optical limit switches with home

High-resolution rotary encoder

Recirculating ball linear ways

Side seals

Optional Power-off Brake

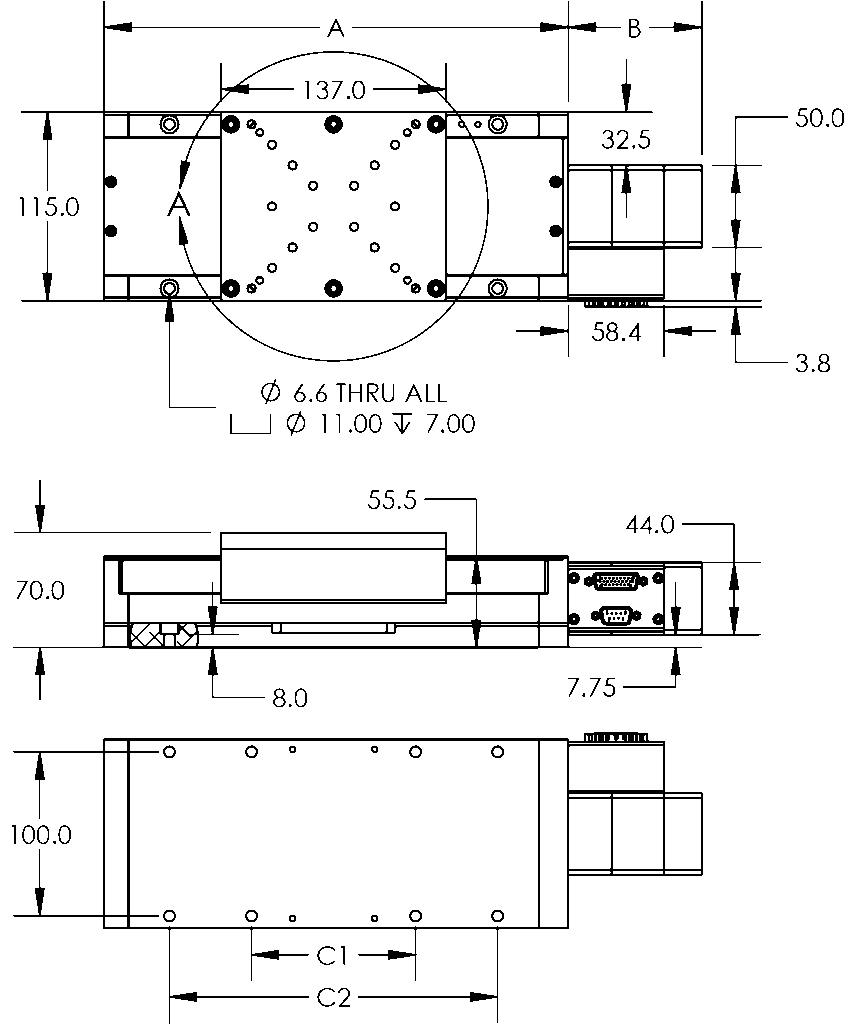

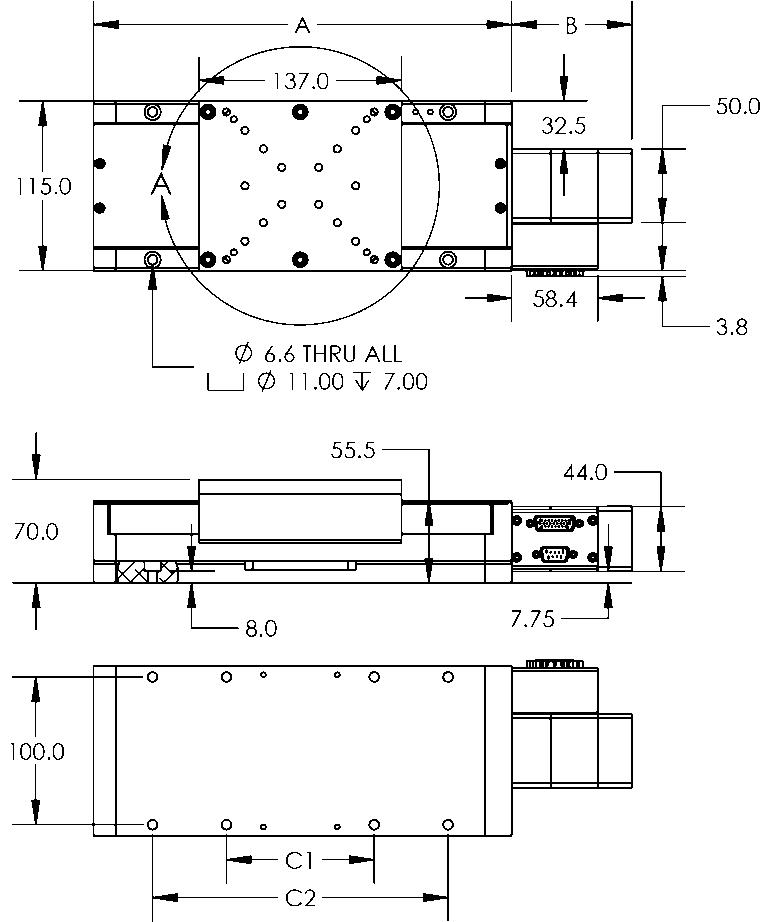

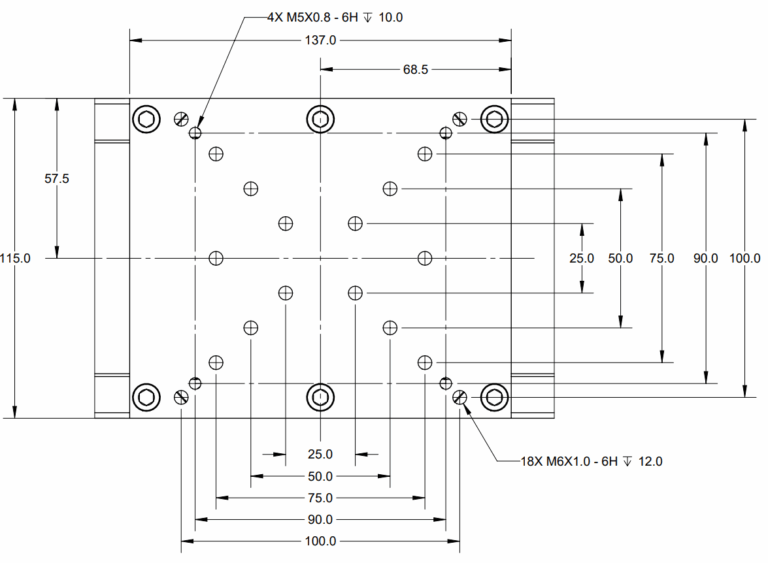

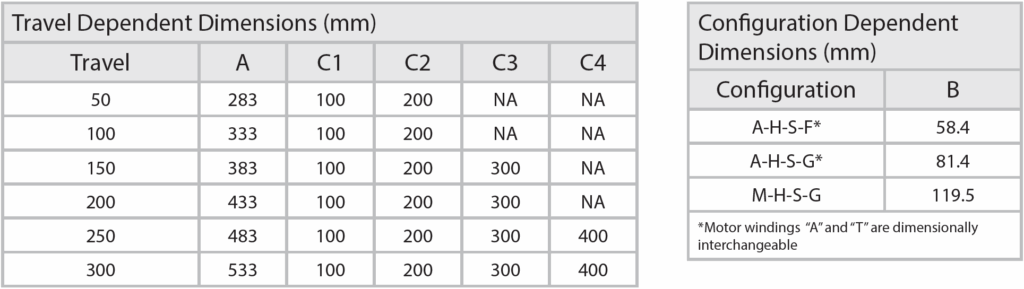

Specifications

Accuracy (µm):	Up to ±4.0µm (with Calibration)
Drive Type:	Ball Screw
Encoder Output:	A quad B, index
Encoder Resolution (µm):	0.125
Flatness (µm):	5
Force X:	180
Force Y:	180
Force Z:	360
Linear Velocity (mm/s):	150
Moment X:	30
Moment Y:	30
Moment Z:	20
Moving Mass X:	1.1
Repeatability (µm):	2
