Linear Stages
LNS-100
Precision Linear Motion Stage
- Product SKU:
- LNS-100
Do you have questions? Contact our Experts: (866) 906-2709
Overview
This 100mm linear stage features high-stiffness crossed roller bearings for smooth, precise motion. The stage is side-driven by a precision-ground ballscrew coupled directly to the brushless motor. This provides a low-profile along with excellent accuracy, repeatability, stiffness and bandwidth. Multiple encoder options are available—including rotary, linear, and absolute linear—to suit a wide range of accuracy, resolution, and interface requirements. Stepper motor variants are also available for more cost-sensitive applications.
Features
100mm Travel
Zero-Backlash Precision-Ground Ballscrew Drive
Optical Limit Switches and Home Markers
Variety of Feedback Options
Low Profile Design
Crossed Roller Bearings
Integrated frameless servo motors
Power-Off Brake Available for Vertical Operation
Specifications
| Accuracy (µm): | Up to 2.0 (with Calibration) |
|---|---|
| Drive Type: | Ballscrew or Leadscrew |
| Encoder Resolution (µm): | Up to 0.1 |
| Encoder Type: | Incremental Rotary or Linear, Absolute Linear |
| Flatness (µm): | 5 |

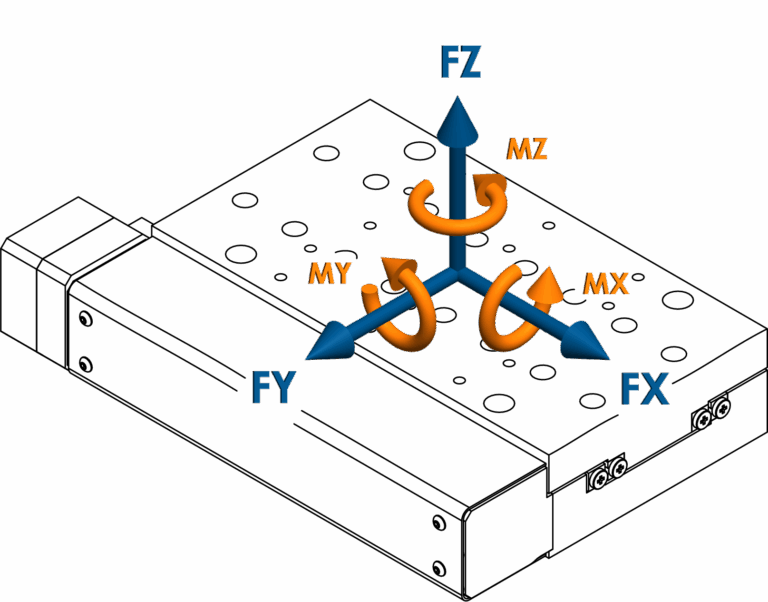

| Force Y: | 250 |
| Force Z: | 400 |
| Moment X: | 60 |
| Moment Y: | 275 |
| Moment Z: | 110 |
| Moving Mass X: | 1.25 |
| Pitch (arc-sec): | 10 |
| Stage Mass (kg): | 3.75 |
| Straightness (µm): | 5 |
| Yaw: | 10 |

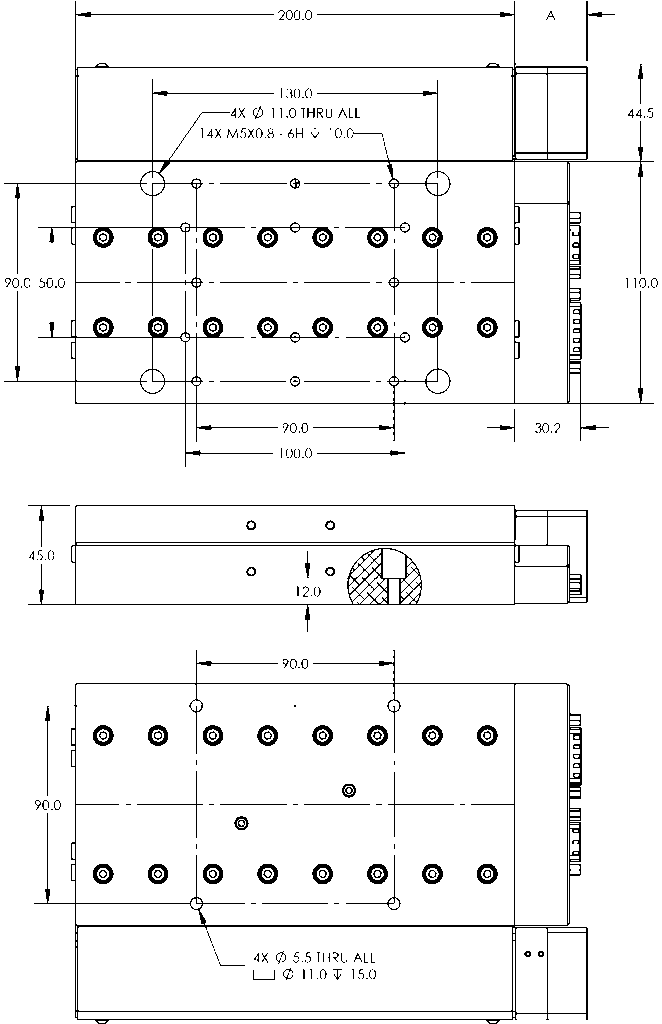

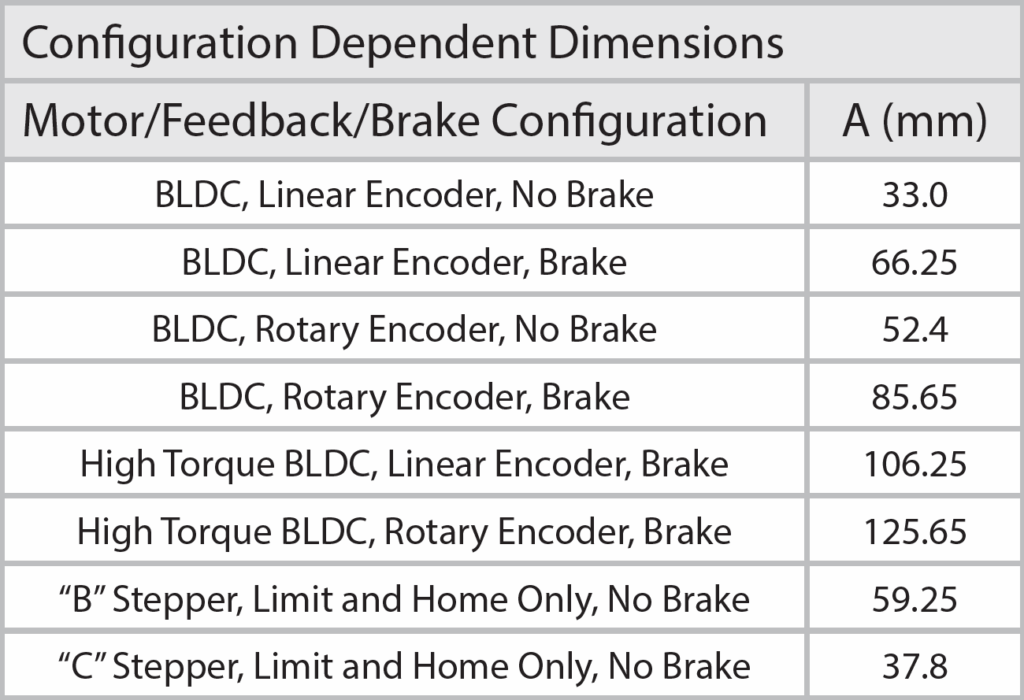

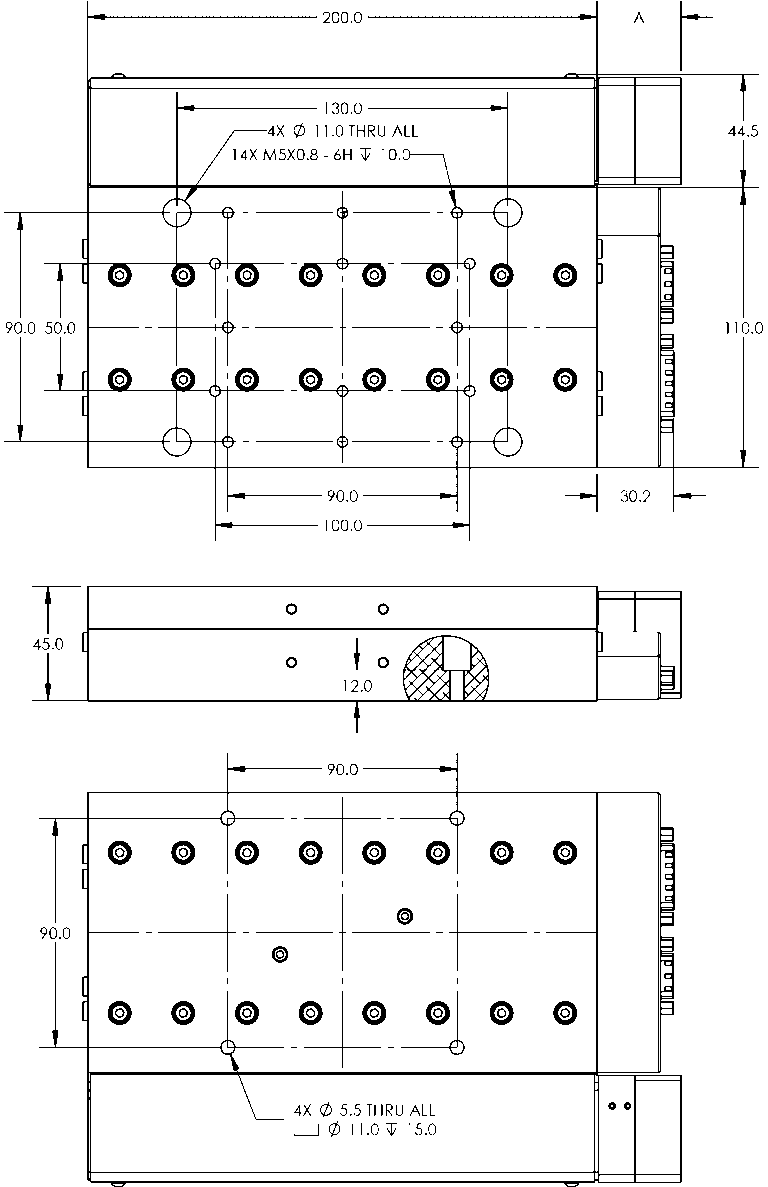

Mechanical Details
