LM3 Series- Single Axis Linear Motion

165mm wide stage with travels from 100 to 800mm. Recirculating linear guideways. Enclosed design with side seals. Available with linear motor or ball-screw drives.

No Products found matching the selected criteria. Please refine your search criteria.

lm3-150-bs-a-h-s-f-00_01

LM3-150-BS-A-H-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 150
  • Accuracy (μm): 15
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

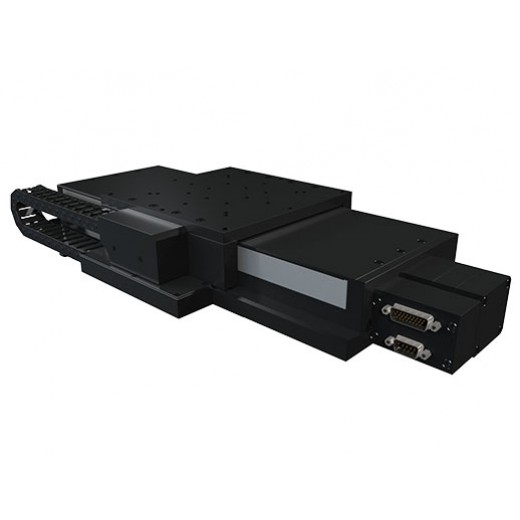

lm3-150-bs-a-m-s-f-00_01_jpg

LM3-150-BS-A-M-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 150
  • Accuracy (μm): 8
  • Repeatability (μm): 1
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

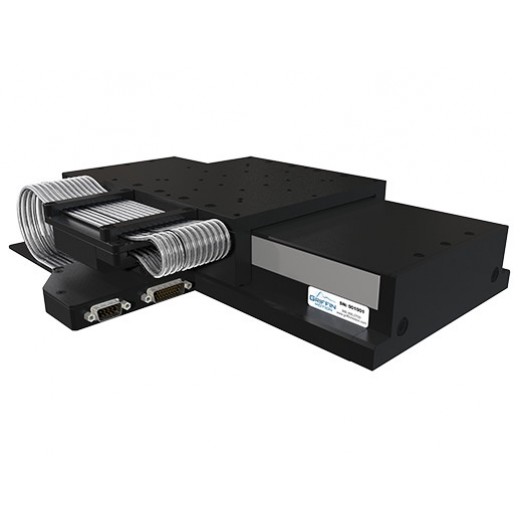

lm3-150-lm-g-l-s-f-00_05

LM3-150-LM-G-L-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 150
  • Accuracy (μm): 8*
  • Repeatability (μm): 1*
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor
lm3-150-lm-g-m-s-f-00_05

LM3-150-LM-G-M-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 150
  • Accuracy (μm): 8
  • Repeatability (μm): 1
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor

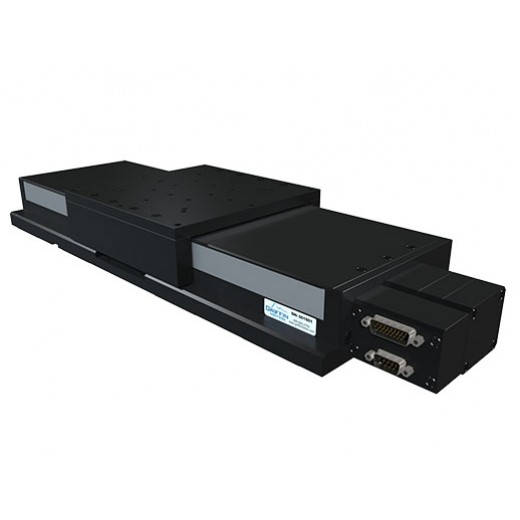

lm3-200-bs-a-h-s-f-00_01

LM3-200-BS-A-H-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 200
  • Accuracy (μm): 17
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

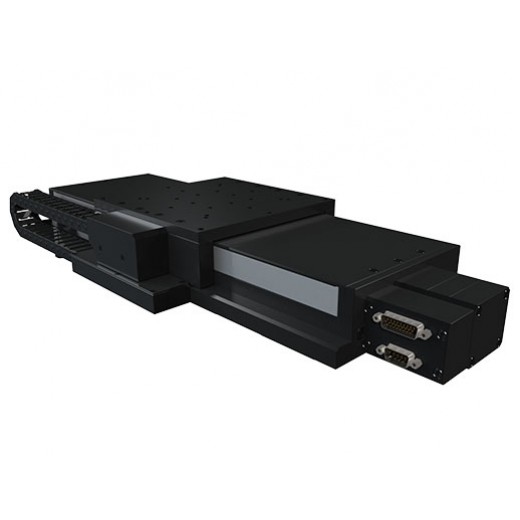

The LM3-200 is a compact, low profile linear stage that is built for a long life with high duty cycles. It features an optical limit switch, rotary encoder, and precision ground ball screw drive.

LM3-200-BS-A-M-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 200
  • Accuracy (μm): 10
  • Repeatability (μm): 1
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

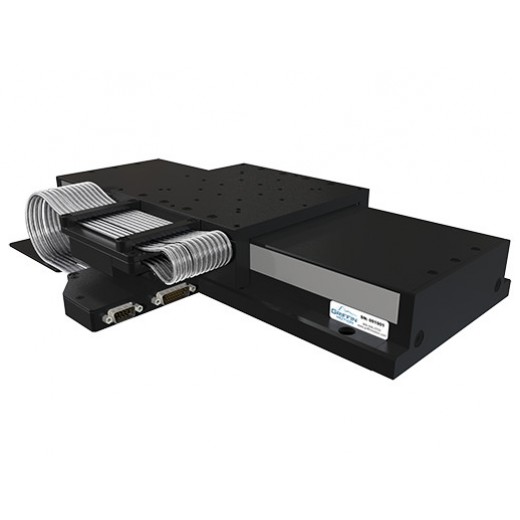

Precision Linear Stage with Ironless Linear Servo Drive, Recirculating Linear Guide Ways, Linear Encoder, and Side Seals

LM3-200-LM-G-L-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 200
  • Accuracy (μm): 10*
  • Repeatability (μm): 1*
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor
lm3-200-lm-g-m-s-f-00_03

LM3-200-LM-G-M-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 200
  • Accuracy (μm): 10
  • Repeatability (μm): 1
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor

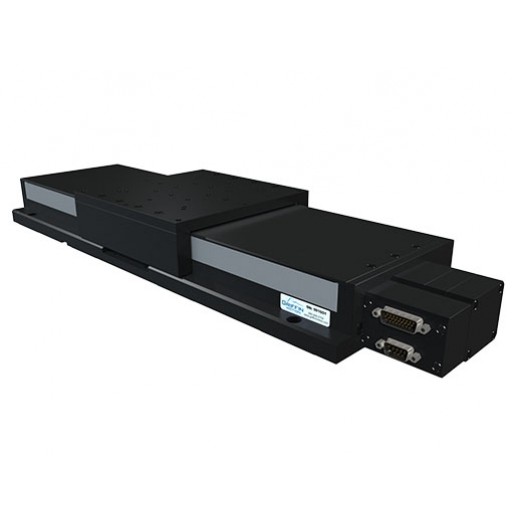

lm3-250-bs-a-h-s-f-00_01

LM3-250-BS-A-H-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 250
  • Accuracy (μm): 20
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

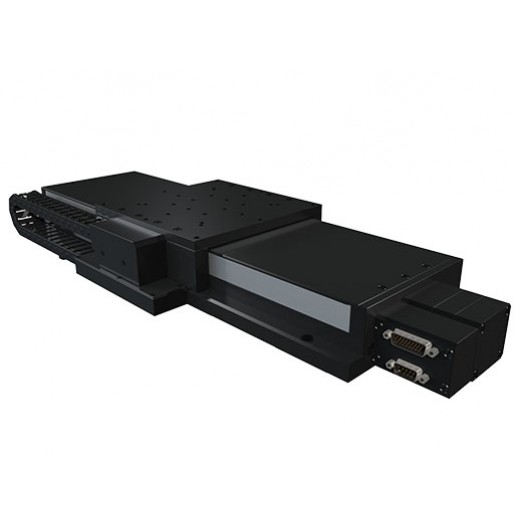

lm3-250-bs-a-m-s-f-00_02_jpg

LM3-250-BS-A-M-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 250
  • Accuracy (μm): 12
  • Repeatability (μm): 1
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
lm3-250-lm-g-l-s-f-00_03

LM3-250-LM-G-L-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 250
  • Accuracy (μm): 12*
  • Repeatability (μm): 1*
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor

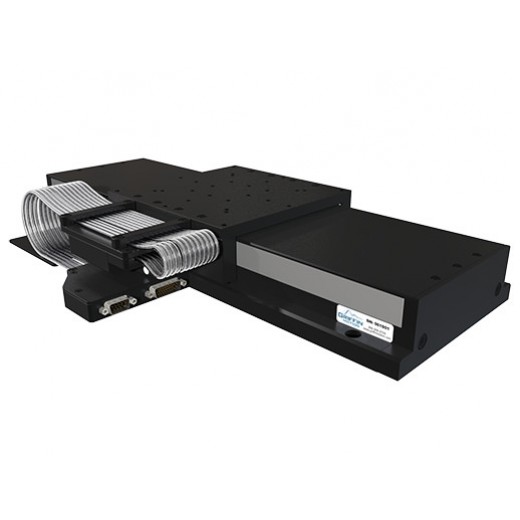

lm3-250-lm-g-m-s-f-00_03

LM3-250-LM-G-M-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 250
  • Accuracy (μm): 12
  • Repeatability (μm): 1
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor

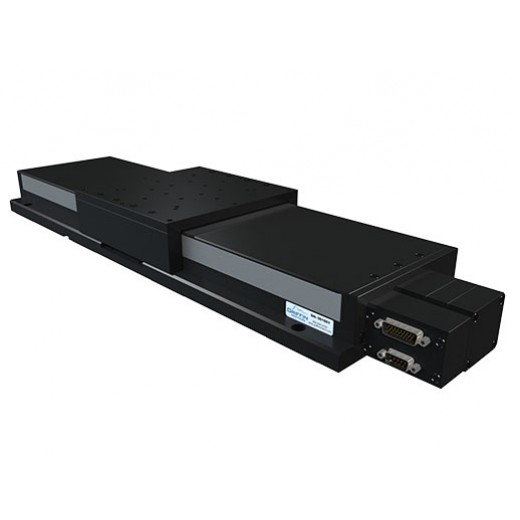

lm3-300-bs-a-h-s-f-00_02

LM3-300-BS-A-H-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 300
  • Accuracy (μm): 25
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
Precision Linear Stage with Brushless Servo Ball Screw Drive, Recirculating Linear Guide Ways, Rotary Encoder, and Side Seals and Brake

LM3-300-BS-A-H-S-G-00 Precision Linear Motion Platform

  • Travel (mm): 300
  • Accuracy (μm): 25
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

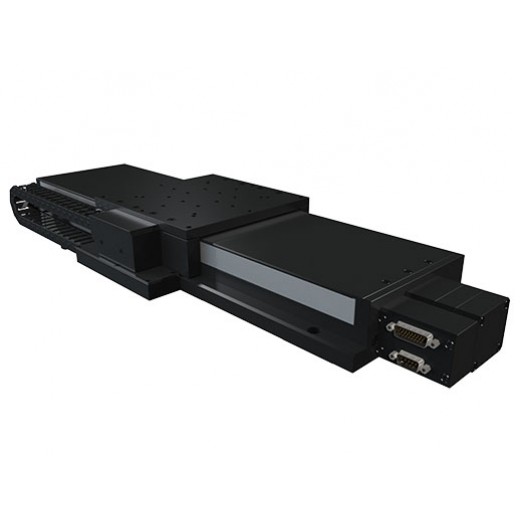

lm3-300-bs-a-m-s-f-00_01_jpg

LM3-300-BS-A-M-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 300
  • Accuracy (μm): 15
  • Repeatability (μm): 1
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

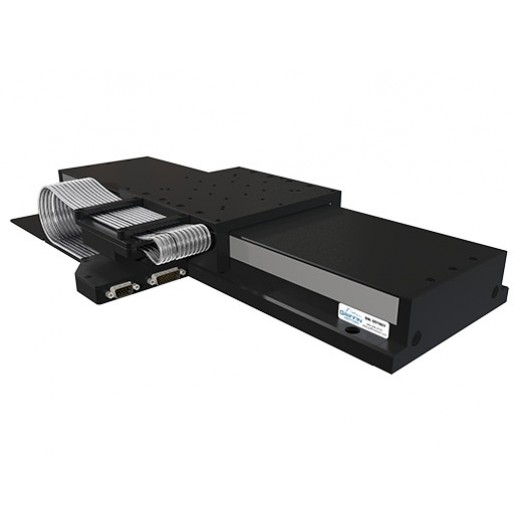

lm3-300-lm-g-l-s-f-00_07

LM3-300-LM-G-L-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 300
  • Accuracy (μm): 15*
  • Repeatability (μm): 1*
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor
lm3-300-lm-g-m-s-f-00_07

LM3-300-LM-G-M-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 300
  • Accuracy (μm): 15
  • Repeatability (μm): 1
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor
lm3-400-lm-g-l-s-f-00_03

LM3-400-LM-G-L-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 400
  • Accuracy (μm): 15*
  • Repeatability (μm): 1*
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor

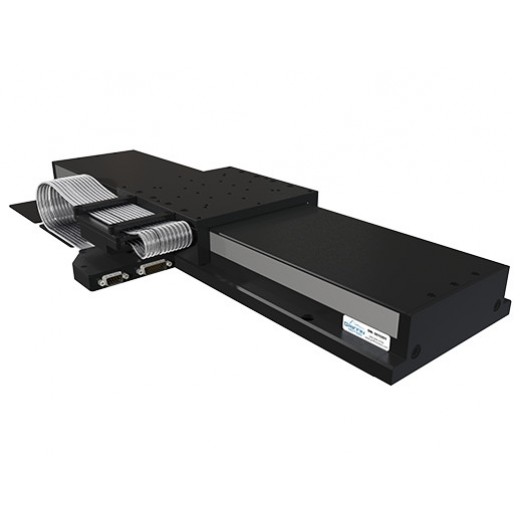

lm3-400-lm-g-m-s-f-00_03

LM3-400-LM-G-M-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 400
  • Accuracy (μm): 15
  • Repeatability (μm): 1
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor
lm3-500-lm-g-l-s-f-00_04

LM3-500-LM-G-L-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 500
  • Accuracy (μm): 18*
  • Repeatability (μm): 1*
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor

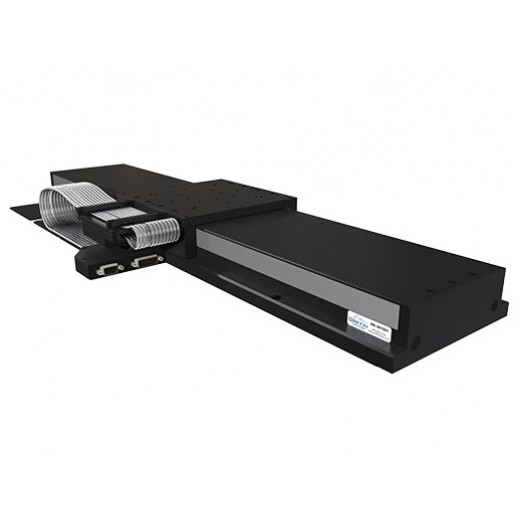

lm3-500-lm-g-m-s-f-00_04

LM3-500-LM-G-M-S-F-00 Precision Linear Motion Platform

  • Travel (mm): 500
  • Accuracy (μm): 18
  • Repeatability (μm): 1
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor
