Linear Stages

Griffin Motion linear stages are available in both ball screw and linear motor drive. Rotary or linear encoders are offered on most product families. Travels from 50mm up to 1000mm are available. Customized travel lengths are possible. Braking mechanisms can be added to most ball screw driven stage for added safety while operating in a vertical orientation. Mounting holes on most stages allow for easy stacking to create a variety of combinations of custom multi-axis systems. Different levels of accuracy and resolution are offered to ensure that your precision needs are met at the most effective price point. Error mapping of stages can be implemented to improve the accuracy of most stages for demanding applications.

No Products found matching the selected criteria. Please refine your search criteria.

hds-150-bs-a-h-s-e-00_01_jpg

HDS-150-BS-A-H-S-E-00 Precision Linear Motion Platform


  • Travel (mm): 150
  • Accuracy (μm): 12
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

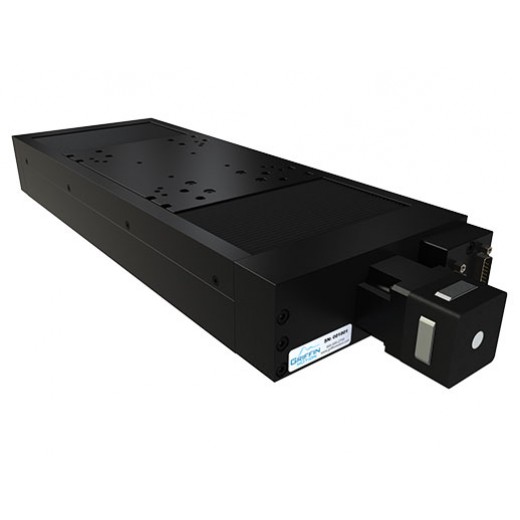

hds-150-bs-b-n-s-e-00_00_jpg

HDS-150-BS-B-N-S-E-00 Precision Linear Motion Platform


  • Travel (mm): 150
  • Accuracy (μm): 15
  • Repeatability (μm): 3
  • Motor: Stepper
  • Drive Type: Ball Screw

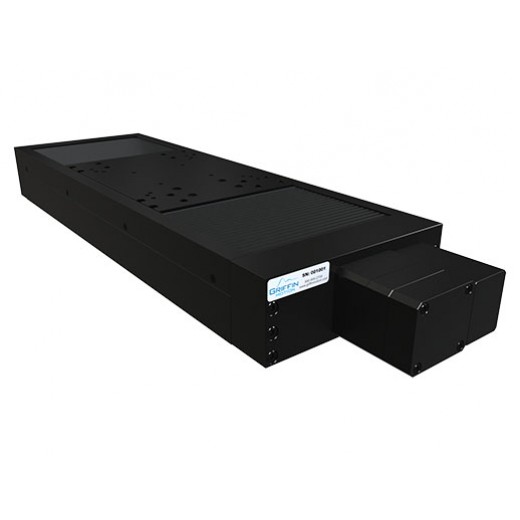

hds-200-bs-a-h-s-e-00_02_jpg

HDS-200-BS-A-H-S-E-00 Precision Linear Motion Platform


  • Travel (mm): 200
  • Accuracy (μm): 16
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

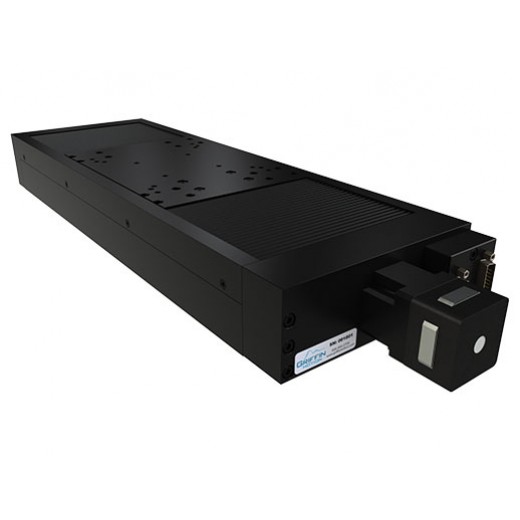

hds-200-bs-b-n-s-e-00_00_jpg

HDS-200-BS-B-N-S-E-00 Precision Linear Motion Platform


  • Travel (mm): 200
  • Accuracy (μm): 20
  • Repeatability (μm): 3
  • Motor: Stepper
  • Drive Type: Ball Screw

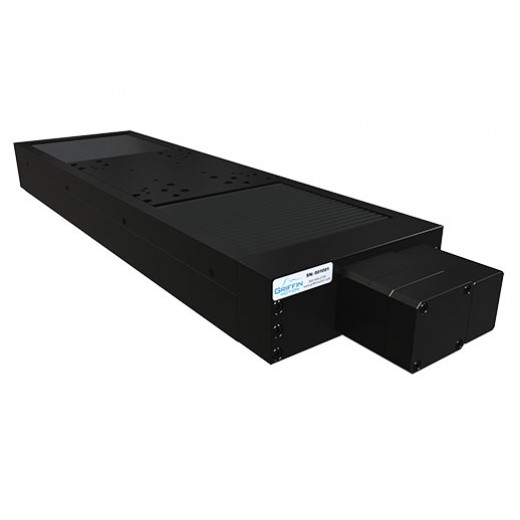

hds-250-bs-a-h-s-e-00_16_jpg

HDS-250-BS-A-H-S-E-00 Precision Linear Motion Platform


  • Travel (mm): 250
  • Accuracy (μm): 20
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

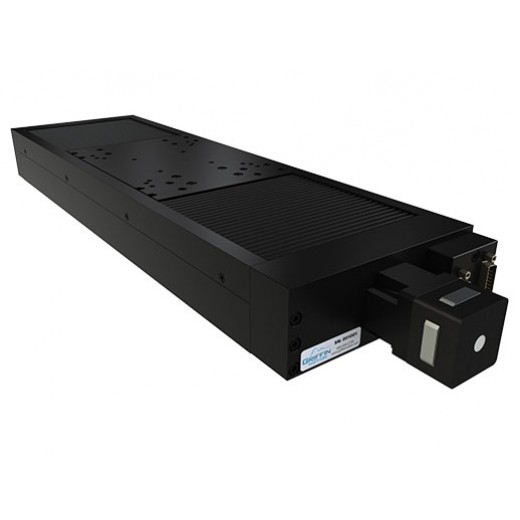

hds-250-bs-b-n-s-e-00_00_jpg

HDS-250-BS-B-N-S-E-00 Precision Linear Motion Platform


  • Travel (mm): 250
  • Accuracy (μm): 25
  • Repeatability (μm): 3
  • Motor: Stepper
  • Drive Type: Ball Screw

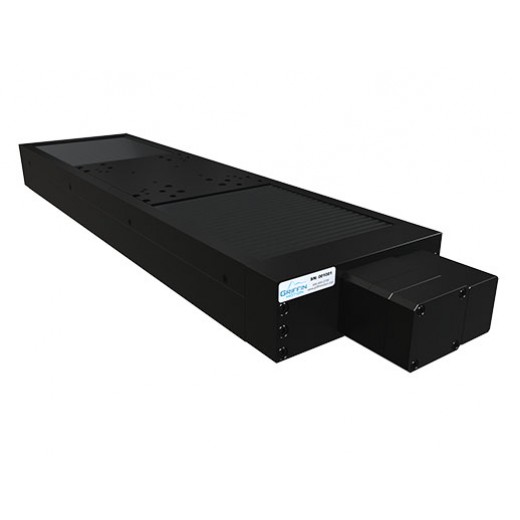

hds-300-bs-a-h-s-e-00_04_jpg

HDS-300-BS-A-H-S-E-00 Precision Linear Motion Platform


  • Travel (mm): 300
  • Accuracy (μm): 25
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

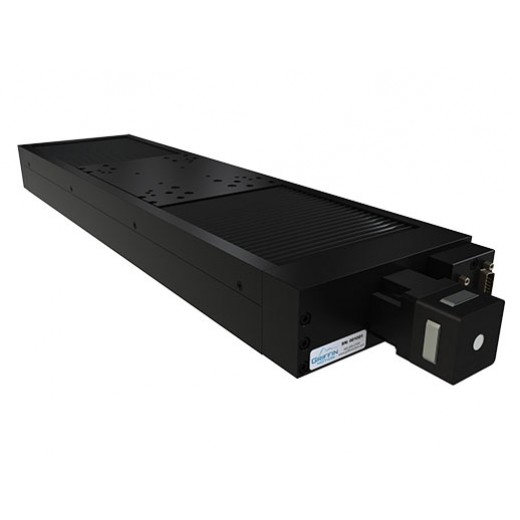

hds-300-bs-b-n-s-e-00_00_jpg

HDS-300-BS-B-N-S-E-00 Precision Linear Motion Platform


  • Travel (mm): 300
  • Accuracy (μm): 30
  • Repeatability (μm): 3
  • Motor: Stepper
  • Drive Type: Ball Screw
LM2-100-BS-A-H-S-F-00

LM2-100-BS-A-H-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 100
  • Accuracy (μm): 8
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
LM2-150-BS-A-H-S-F-00

LM2-150-BS-A-H-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 150
  • Accuracy (μm): 10
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
LM2-200-BS-A-H-S-F-00

LM2-200-BS-A-H-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 200
  • Accuracy (μm): 12
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
LM2-300-BS-A-H-S-F-00

LM2-300-BS-A-H-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 300
  • Accuracy (μm): 15
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

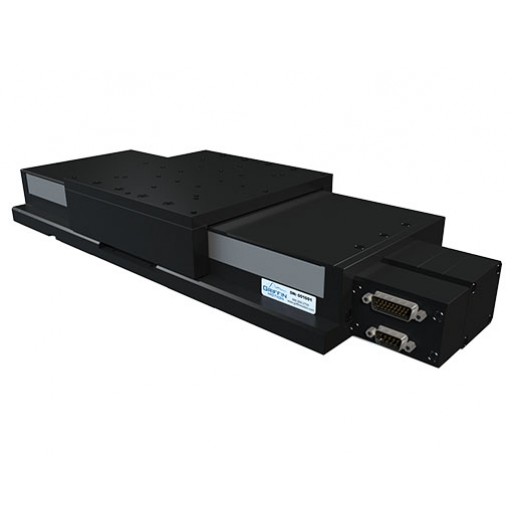

lm3-150-bs-a-h-s-f-00_01

LM3-150-BS-A-H-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 150
  • Accuracy (μm): 15
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

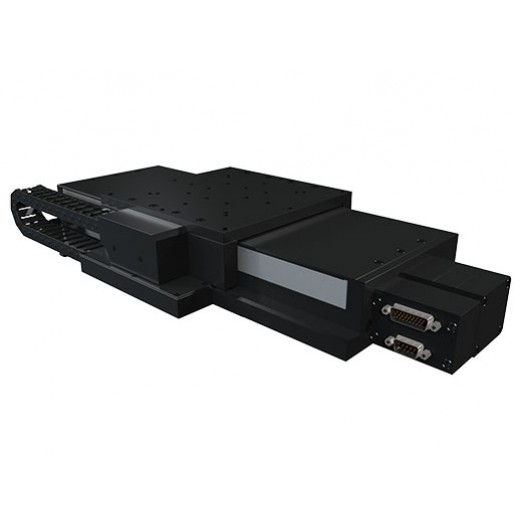

lm3-150-bs-a-m-s-f-00_01_jpg

LM3-150-BS-A-M-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 150
  • Accuracy (μm): 8
  • Repeatability (μm): 1
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
lm3-150-lm-g-l-s-f-00_05

LM3-150-LM-G-L-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 150
  • Accuracy (μm): 8*
  • Repeatability (μm): 1*
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor

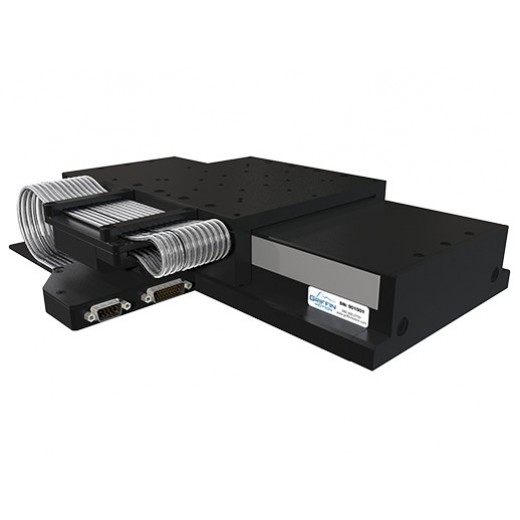

lm3-150-lm-g-m-s-f-00_05

LM3-150-LM-G-M-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 150
  • Accuracy (μm): 8
  • Repeatability (μm): 1
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor

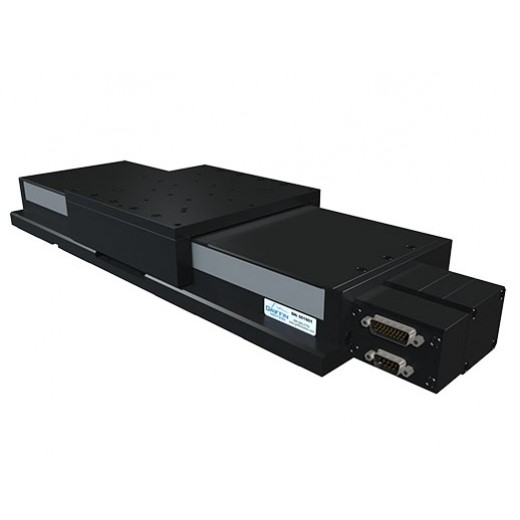

lm3-200-bs-a-h-s-f-00_01

LM3-200-BS-A-H-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 200
  • Accuracy (μm): 17
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

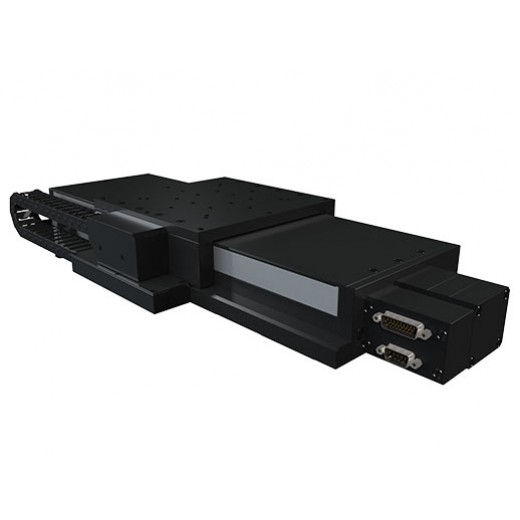

lm3-200-bs-a-m-s-f-00_01_jpg

LM3-200-BS-A-M-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 200
  • Accuracy (μm): 10
  • Repeatability (μm): 1
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

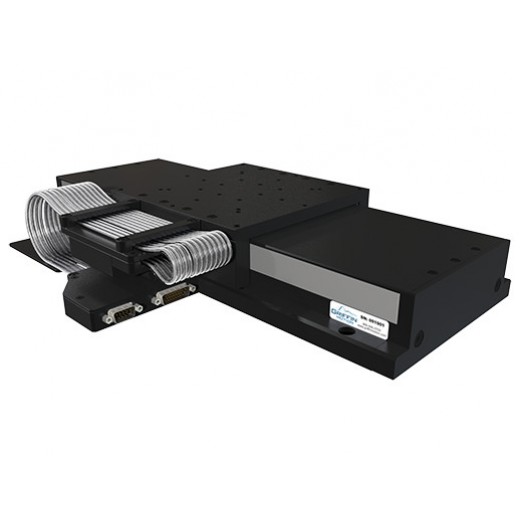

lm3-200-lm-g-l-s-f-00_03

LM3-200-LM-G-L-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 200
  • Accuracy (μm): 10*
  • Repeatability (μm): 1*
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor
lm3-200-lm-g-m-s-f-00_03

LM3-200-LM-G-M-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 200
  • Accuracy (μm): 10
  • Repeatability (μm): 1
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor

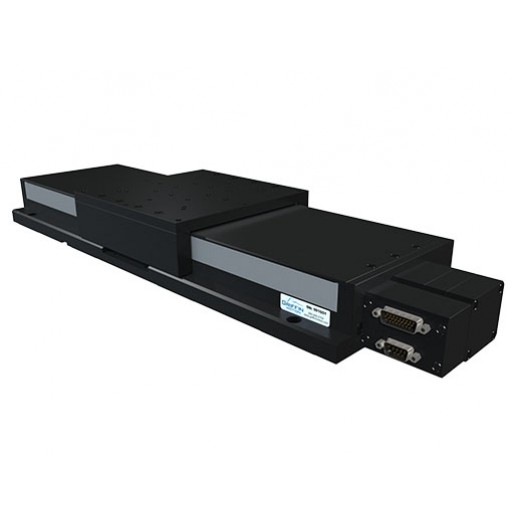

lm3-250-bs-a-h-s-f-00_01

LM3-250-BS-A-H-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 250
  • Accuracy (μm): 20
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

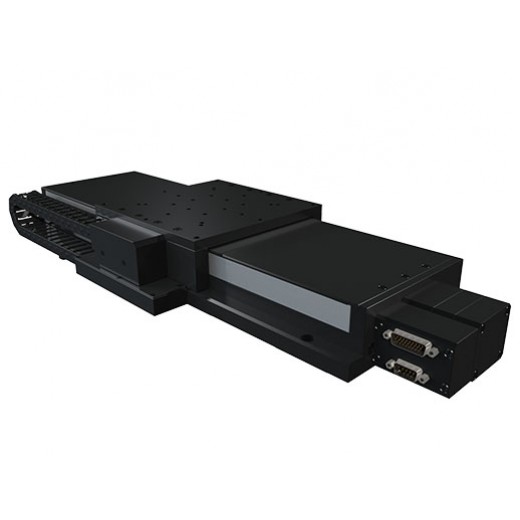

lm3-250-bs-a-m-s-f-00_02_jpg

LM3-250-BS-A-M-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 250
  • Accuracy (μm): 12
  • Repeatability (μm): 1
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
lm3-250-lm-g-l-s-f-00_03

LM3-250-LM-G-L-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 250
  • Accuracy (μm): 12*
  • Repeatability (μm): 1*
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor

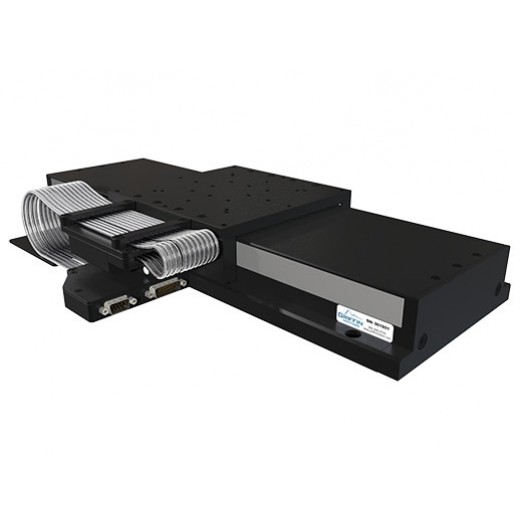

lm3-250-lm-g-m-s-f-00_03

LM3-250-LM-G-M-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 250
  • Accuracy (μm): 12
  • Repeatability (μm): 1
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor

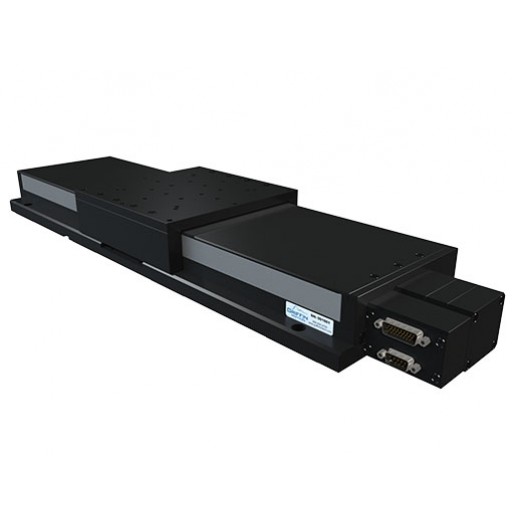

lm3-300-bs-a-h-s-f-00_02

LM3-300-BS-A-H-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 300
  • Accuracy (μm): 25
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
LM3-300-BS-A-H-S-G-00_00

LM3-300-BS-A-H-S-G-00 Precision Linear Motion Platform


  • Travel (mm): 300
  • Accuracy (μm): 25
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

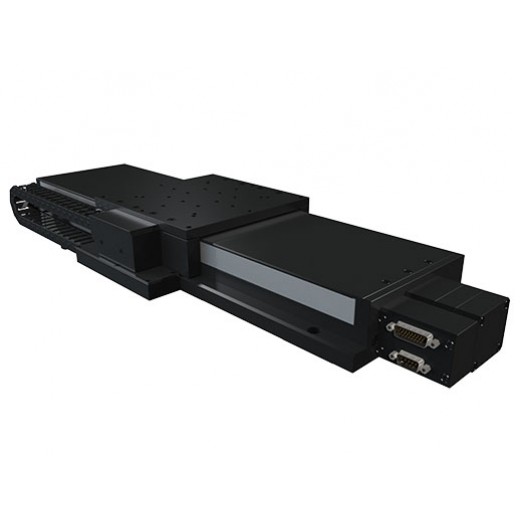

lm3-300-bs-a-m-s-f-00_01_jpg

LM3-300-BS-A-M-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 300
  • Accuracy (μm): 15
  • Repeatability (μm): 1
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

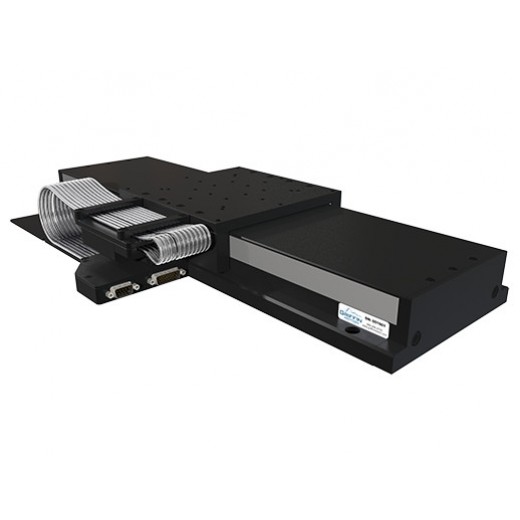

lm3-300-lm-g-l-s-f-00_07

LM3-300-LM-G-L-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 300
  • Accuracy (μm): 15*
  • Repeatability (μm): 1*
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor
lm3-300-lm-g-m-s-f-00_07

LM3-300-LM-G-M-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 300
  • Accuracy (μm): 15
  • Repeatability (μm): 1
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor

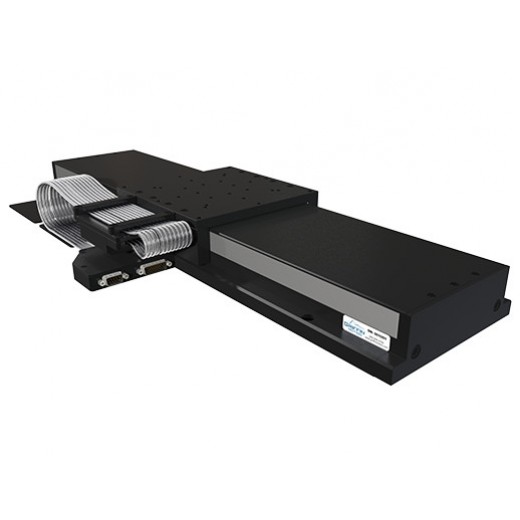

lm3-400-lm-g-l-s-f-00_03

LM3-400-LM-G-L-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 400
  • Accuracy (μm): 15*
  • Repeatability (μm): 1*
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor
lm3-400-lm-g-m-s-f-00_03

LM3-400-LM-G-M-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 400
  • Accuracy (μm): 15
  • Repeatability (μm): 1
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor

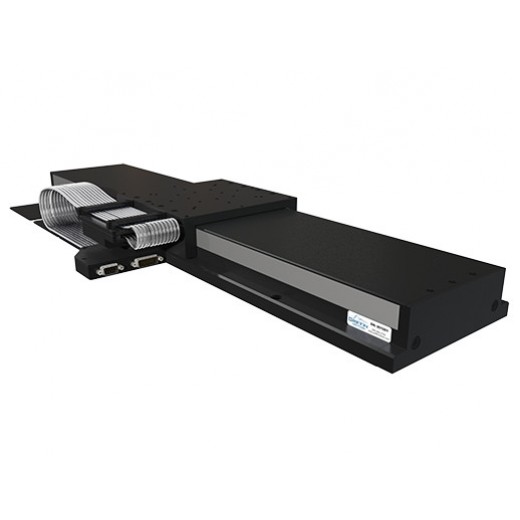

lm3-500-lm-g-l-s-f-00_04

LM3-500-LM-G-L-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 500
  • Accuracy (μm): 18*
  • Repeatability (μm): 1*
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor
lm3-500-lm-g-m-s-f-00_04

LM3-500-LM-G-M-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 500
  • Accuracy (μm): 18
  • Repeatability (μm): 1
  • Motor: Ironless Linear Servo
  • Drive Type: Linear Motor

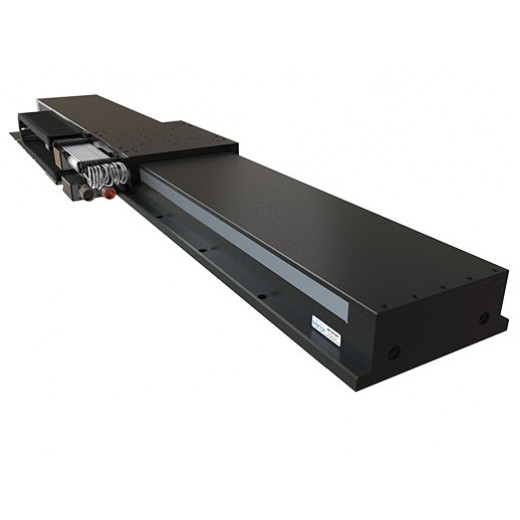

lm7-1000-lm-f-u-s-f-00_00_1

LM7-1000-LM-F-U-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 1000
  • Accuracy (μm): 30
  • Repeatability (μm): 1
  • Motor: Ironcore Linear Servo
  • Drive Type: Linear Motor

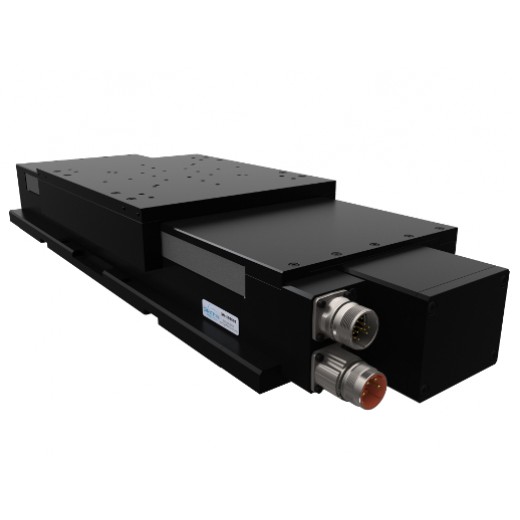

lm7-150-bs-d-w-s-f-00_00

LM7-150-BS-D-W-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 150
  • Accuracy (μm): 20
  • Repeatability (μm): 2
  • Motor: High Torque Brushless Servo
  • Drive Type: Ball Screw

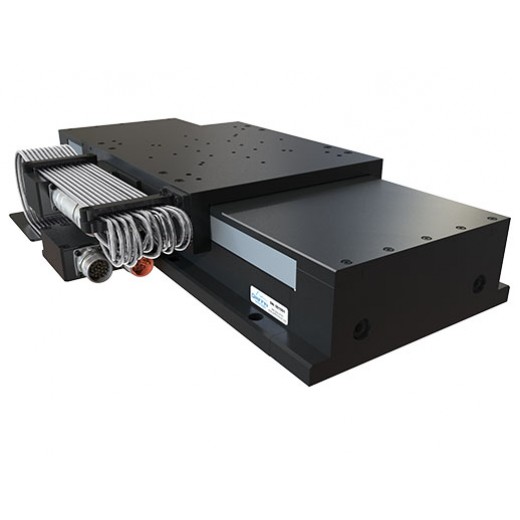

lm7-150-lm-f-u-s-f-00_00_1

LM7-150-LM-F-U-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 150
  • Accuracy (μm): 10
  • Repeatability (μm): 1
  • Motor: Ironcore Linear Servo
  • Drive Type: Linear Motor
lm7-500-bf-d-y-s-f-00_00

LM7-500-BF-D-W-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 500
  • Accuracy (μm): 50
  • Repeatability (μm): 2
  • Motor: High Torque Brushless Servo
  • Drive Type: Ball Screw

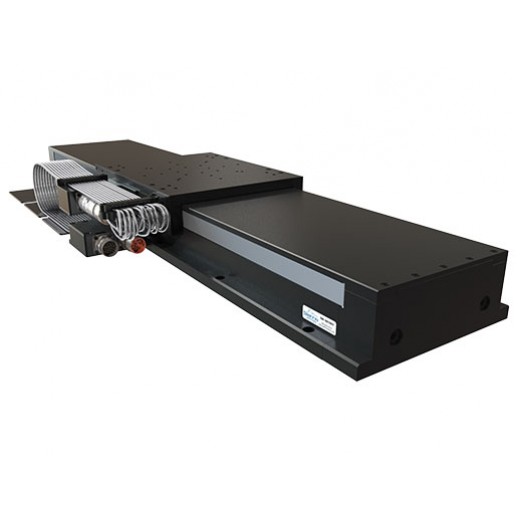

lm7-500-lm-f-u-s-f-00_00_3

LM7-500-LM-F-U-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 500
  • Accuracy (μm): 22
  • Repeatability (μm): 1
  • Motor: Ironcore Linear Servo
  • Drive Type: Linear Motor

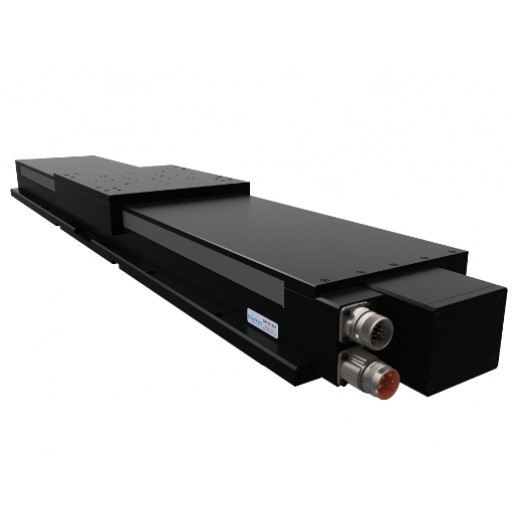

lm7-600-bf-d-y-s-f-00_00

LM7-600-BF-D-W-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 600
  • Accuracy (μm): 54
  • Repeatability (μm): 2
  • Motor: High Torque Brushless Servo
  • Drive Type: Ball Screw

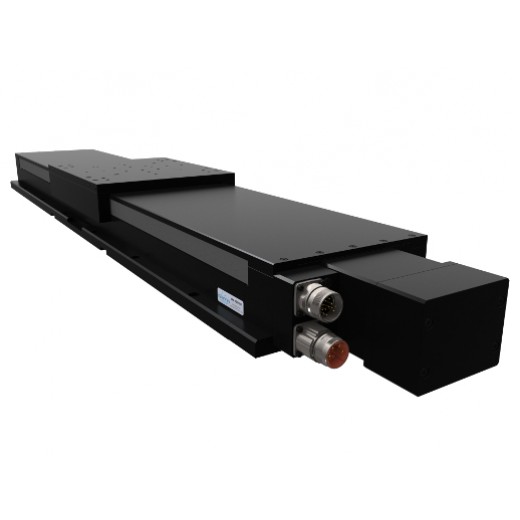

lm7-600-bs-d-w-s-g-00_00

LM7-600-BS-D-W-S-G-00 Precision Linear Motion Platform


  • Travel (mm): 600
  • Accuracy (μm): 54
  • Repeatability (μm): 2
  • Motor: High Torque Brushless Servo
  • Drive Type: Ball Screw

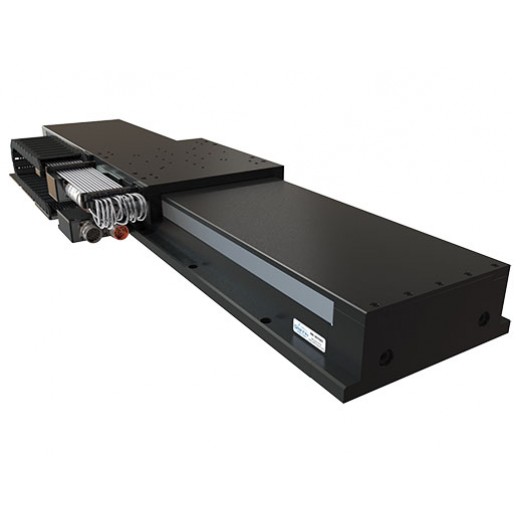

lm7-600-lm-f-u-s-f-00_00

LM7-600-LM-F-U-S-F-00 Precision Linear Motion Platform


  • Travel (mm): 600
  • Accuracy (μm): 26
  • Repeatability (μm): 1
  • Motor: Ironcore Linear Servo
  • Drive Type: Linear Motor
lns-050-bs-a-c-s-b-00_01_mod

LNS-050-BS-A-C-S-B-00 Precision Linear Motion Platform


  • Travel (mm): 50
  • Accuracy (μm): 6
  • Repeatability (μm): 1
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

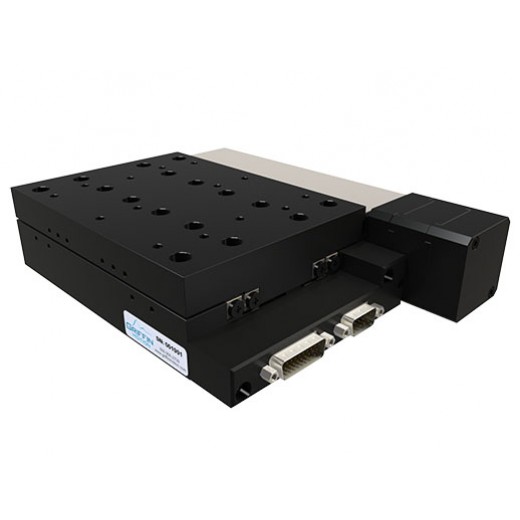

lns-050-bs-a-h-s-0-00_05_jpg

LNS-050-BS-A-H-S-0-00 Precision Linear Motion Platform


  • Travel (mm): 50
  • Accuracy (μm): 10
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

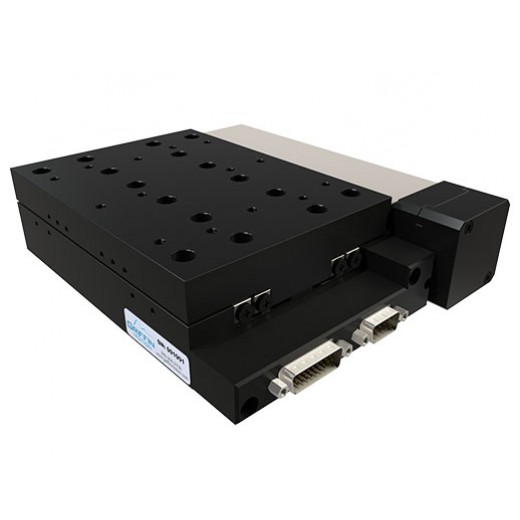

lns-050-bs-a-m-p-0-00_06_jpg

LNS-050-BS-A-M-P-0-00 Precision Linear Motion Platform


  • Travel (mm): 50
  • Accuracy (μm): 3
  • Repeatability (μm): 0.5
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
lns-050-bs-a-m-s-0-00_06_jpg

LNS-050-BS-A-M-S-0-00 Precision Linear Motion Platform


  • Travel (mm): 50
  • Accuracy (μm): 6
  • Repeatability (μm): 1
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

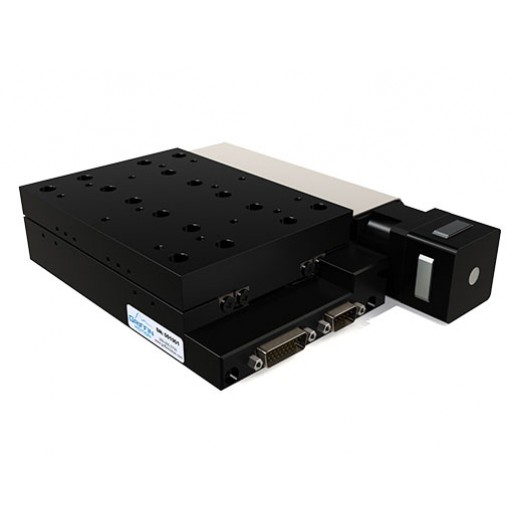

lns-050-bs-b-n-s-0-00_05_jpg

LNS-050-BS-B-N-S-0-00 Precision Linear Motion Platform


  • Travel (mm): 50
  • Accuracy (μm): 15
  • Repeatability (μm): 3
  • Motor: Stepper
  • Drive Type: Ball Screw

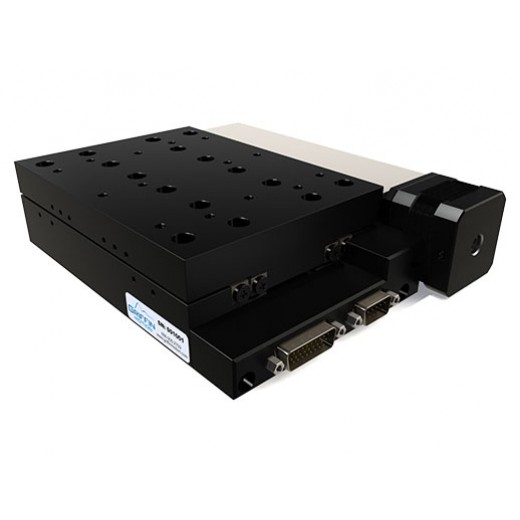

lns-050-hs-c-n-s-0-00_02_jpg

LNS-050-HS-C-N-S-0-00 Precision Linear Motion Platform


  • Travel (mm): 50
  • Accuracy (μm): 20
  • Repeatability (μm): 5
  • Motor: Hybrid Stepper lead screw
  • Drive Type: Hybrid Stepper Leadscrew

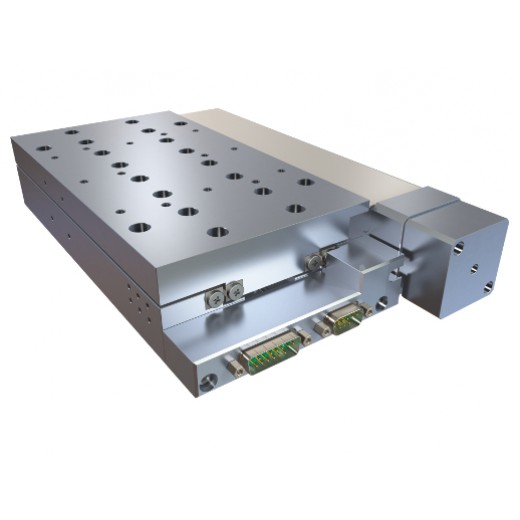

lns-100-bs-a-c-s-b-00_00_-_mod

LNS-100-BS-A-C-S-B-00 Precision Linear Motion Platform


  • Travel (mm): 100
  • Accuracy (μm): 8
  • Repeatability (μm): 1
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

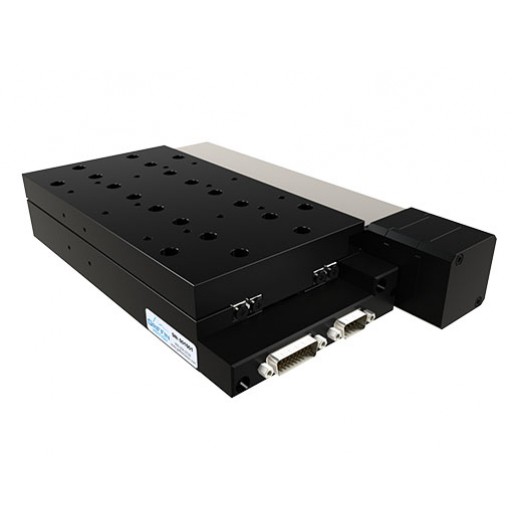

lns-100-bs-a-h-s-0-00_03_jpg

LNS-100-BS-A-H-S-0-00 Precision Linear Motion Platform


  • Travel (mm): 100
  • Accuracy (μm): 12
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
LNS-100-BS-A-H-S-D-00_00

LNS-100-BS-A-H-S-D-00 Precision Linear Motion Platform


  • Travel (mm): 100
  • Accuracy (μm): 12
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
lns-100-bs-a-m-p-0-00_03_jpg

LNS-100-BS-A-M-P-0-00 Precision Linear Motion Platform


  • Travel (mm): 100
  • Accuracy (μm): 4
  • Repeatability (μm): 0.5
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

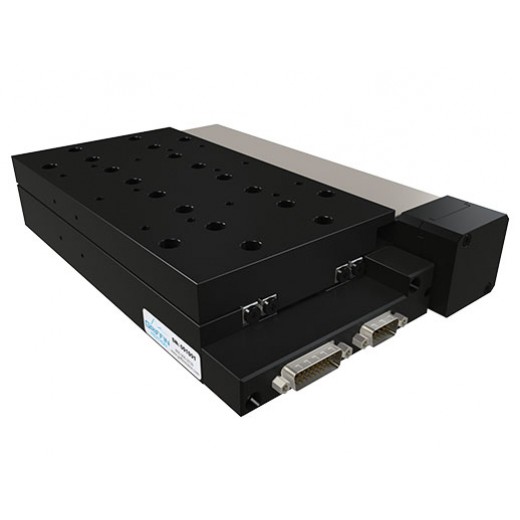

lns-100-bs-a-m-s-0-00_03_jpg

LNS-100-BS-A-M-S-0-00 Precision Linear Motion Platform


  • Travel (mm): 100
  • Accuracy (μm): 8
  • Repeatability (μm): 1
  • Motor: Brushless Servo
  • Drive Type: Ball Screw

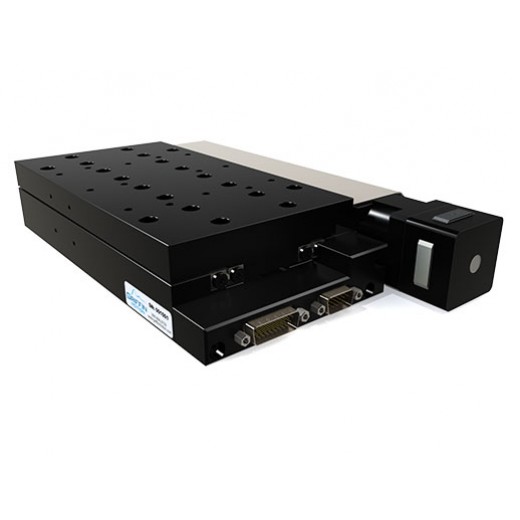

lns-100-bs-b-n-s-0-00_02_jpg

LNS-100-BS-B-N-S-0-00 Precision Linear Motion Platform


  • Travel (mm): 100
  • Accuracy (μm): 17
  • Repeatability (μm): 2
  • Motor: Stepper
  • Drive Type: Ball Screw
lns-100-hs-c-n-s-0-00_02_jpg

LNS-100-HS-C-N-S-0-00 Precision Linear Motion Platform


  • Travel (mm): 100
  • Accuracy (μm): 25
  • Repeatability (μm): 5
  • Motor: Hybrid Stepper lead screw
  • Drive Type: Hybrid Stepper Leadscrew
lns-150-bs-a-c-s-b-00_00_-_mod

LNS-150-BS-A-C-S-B-00 Precision Linear Motion Platform


  • Travel (mm): 150
  • Accuracy (μm): 10
  • Repeatability (μm): 1
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
lns-150-bs-a-h-s-0-00_04_jpg

LNS-150-BS-A-H-S-0-00 Precision Linear Motion Platform


  • Travel (mm): 150
  • Accuracy (μm): 15
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
LNS-150-BS-A-H-S-D-00_00

LNS-150-BS-A-H-S-D-00 Precision Linear Motion Platform


  • Travel (mm): 150
  • Accuracy (μm): 15
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
lns-150-bs-a-m-p-0-00_03_jpg

LNS-150-BS-A-M-P-0-00 Precision Linear Motion Platform


  • Travel (mm): 150
  • Accuracy (μm): 5
  • Repeatability (μm): 0.5
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
lns-150-bs-a-m-s-0-00_03_jpg

LNS-150-BS-A-M-S-0-00 Precision Linear Motion Platform


  • Travel (mm): 150
  • Accuracy (μm): 10
  • Repeatability (μm): 1
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
lns-150-bs-b-n-s-0-00_01_jpg

LNS-150-BS-B-N-S-0-00 Precision Linear Motion Platform


  • Travel (mm): 150
  • Accuracy (μm): 20
  • Repeatability (μm): 2
  • Motor: Stepper
  • Drive Type: Ball Screw
lns-150-hs-c-n-s-0-00_02_jpg

LNS-150-HS-C-N-S-0-00 Precision Linear Motion Platform


  • Travel (mm): 150
  • Accuracy (μm): 30
  • Repeatability (μm): 5
  • Motor: Hybrid Stepper lead screw
  • Drive Type: Hybrid Stepper Leadscrew
MCS-050-BS-A-H-S-0-00

MCS-050-BS-A-H-S-0-00 Precision Linear Motion Platform


  • Travel (mm): 50
  • Accuracy (μm): 10
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
MCS-050-BS-A-H-S-D-00

MCS-050-BS-A-H-S-D-00 Precision Linear Motion Platform


  • Travel (mm): 50
  • Accuracy (μm): 10
  • Repeatability (μm): 2
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
MCS-050-BS-A-M-S-0-00

MCS-050-BS-A-M-S-0-00 Precision Linear Motion Platform


  • Travel (mm): 50
  • Accuracy (μm): 5
  • Repeatability (μm): 1
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
MCS-050-BS-A-M-S-D-00

MCS-050-BS-A-M-S-D-00 Precision Linear Motion Platform


  • Travel (mm): 50
  • Accuracy (μm): 5
  • Repeatability (μm): 1
  • Motor: Brushless Servo
  • Drive Type: Ball Screw
MCS-050-BS-B-N-S-0-00

MCS-050-BS-B-N-S-0-00 Precision Linear Motion Platform


  • Travel (mm): 50
  • Accuracy (μm): 13
  • Repeatability (μm): 3
  • Motor: Stepper Motor
  • Drive Type: Ball Screw
MCS-050-HS-C-N-S-0-00

MCS-050-HS-C-N-S-0-00 Precision Linear Motion Platform


  • Travel (mm): 50
  • Accuracy (μm): 20
  • Repeatability (μm): 5
  • Motor: Hybrid Stepper Leadscrew
  • Drive Type: Hybrid Stepper Leadscrew
Linear Stages, 110mm Linear Travel Stage, NPS-110-LM-G-HH-S-0-00

NPS-110-LM-G-HH-S-0-00 Precision Linear Motion Platform


  • Travel (mm): 110
  • Accuracy (μm): 4
  • Repeatability (μm): 0.2
  • Motor:
  • Drive Type: Linear Motor
NPS-160

NPS-160-LM-G-HH-S-0-00 Precision Linear Motion Platform


  • Travel (mm): 160
  • Accuracy (μm): 4
  • Repeatability (μm): 0.2
  • Motor:
  • Drive Type: Linear Motor
