Rotary Stages

This series of rotary tables from Griffin Motion are direct-drive, precision positioning tables designed for laboratory, factory automation, and semiconductor processing equipment. The high-torque, brushless direct-drive technology eliminates backlash and improves reliability by minimizing sliding friction throughout the stage. The large bore allows convenient routing of tubing and cabling for application requirements. Positioning resolution can be selected, with most controls, to meet the needs of the final application.

No Products found matching the selected criteria. Please refine your search criteria.

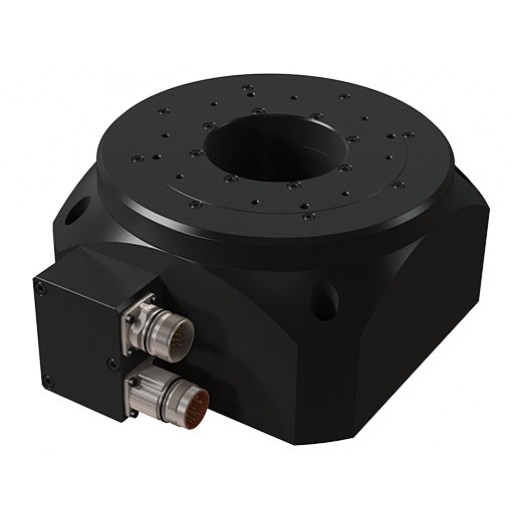

htr-dd-200-aa-m-a-s-0-00_01

HTR-DD-200-AA-M-A-S-0-00 Precision Rotary Table


  • Accuracy (arc-sec): 30
  • Repeatability (arc-sec): 3
  • Resolution (arc-sec): 0.019
  • Peak Torque: 12
  • Drive Type: Direct Drive
htr-dd-200-aa-m-a-s-j-00_01

HTR-DD-200-AA-M-A-S-J-00 Precision Rotary Table


  • Accuracy (arc-sec): 30
  • Repeatability (arc-sec): 3
  • Resolution (arc-sec): 0.019
  • Peak Torque: 8.4
  • Drive Type: Direct Drive
rts-dd-100-m-c-a-p-0-00_00_jpg

RTS-DD-100-M-C-A-P-0-00 Precision Rotary Table


  • Accuracy (arc-sec): 20
  • Repeatability (arc-sec): 4
  • Resolution (arc-sec): 1.296
  • Peak Torque: 0.75
  • Drive Type: Direct Drive

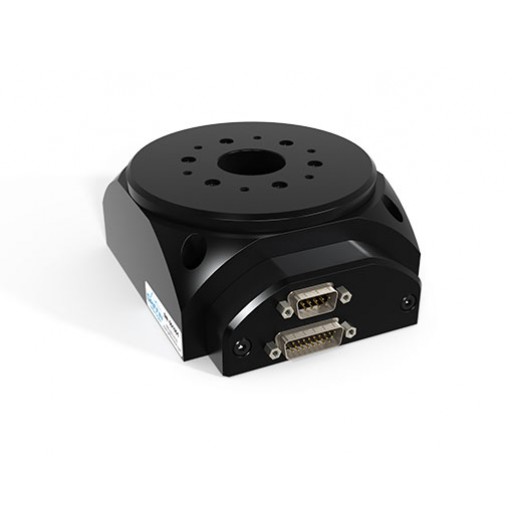

rts-dd-100-m-c-a-s-0-00_00_jpg1

RTS-DD-100-M-C-A-S-0-00 Precision Rotary Table


  • Accuracy (arc-sec): 30
  • Repeatability (arc-sec): 5
  • Resolution (arc-sec): 1.296
  • Peak Torque: 0.75
  • Drive Type: Direct Drive
rts-dd-100-m-d-a-p-0-00_00_jpg

RTS-DD-100-M-D-A-P-0-00 Precision Rotary Table


  • Accuracy (arc-sec): 20
  • Repeatability (arc-sec): 2
  • Resolution (arc-sec): 0.324
  • Peak Torque: 0.75
  • Drive Type: Direct Drive
rts-dd-100-m-d-a-s-0-00_00_jpg

RTS-DD-100-M-D-A-S-0-00 Precision Rotary Table


  • Accuracy (arc-sec): 30
  • Repeatability (arc-sec): 3
  • Resolution (arc-sec): 0.324
  • Peak Torque: 0.75
  • Drive Type: Direct Drive
rts-dd-100-m-d-s-u-0-00_09_jpg

RTS-DD-100-M-D-S-U-0-00 Precision Rotary Table


  • Accuracy (arc-sec): 5
  • Repeatability (arc-sec): 1
  • Resolution (arc-sec): 0.324
  • Peak Torque: 0.75
  • Drive Type: Direct Drive
rts-dd-100-m-e-a-s-0-00_00_jpg_1

RTS-DD-100-M-E-A-P-0-00 Precision Rotary Table


  • Accuracy (arc-sec): 20*
  • Repeatability (arc-sec): 2*
  • Resolution (arc-sec):
  • Peak Torque: 0.75
  • Drive Type: Direct Drive
rts-dd-100-m-e-a-s-0-00_00_jpg

RTS-DD-100-M-E-A-S-0-00 Precision Rotary Table


  • Accuracy (arc-sec): 30*
  • Repeatability (arc-sec): 3*
  • Resolution (arc-sec):
  • Peak Torque: 0.75
  • Drive Type: Direct Drive

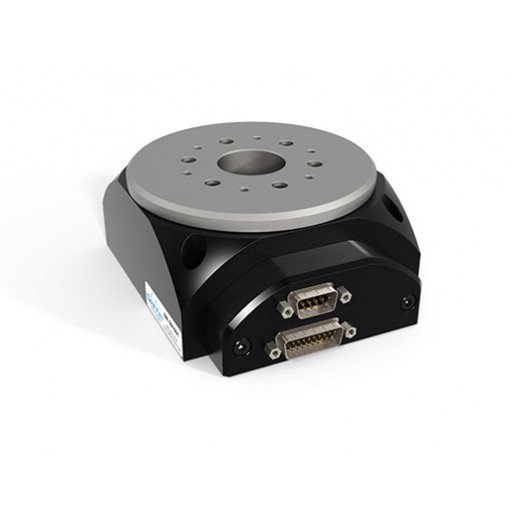

rts-dd-100-m-e-s-p-0-00_09_jpg

RTS-DD-100-M-E-S-P-0-00 Precision Rotary Table


  • Accuracy (arc-sec): 20*
  • Repeatability (arc-sec): 2*
  • Resolution (arc-sec):
  • Peak Torque: 0.75
  • Drive Type: Direct Drive
rts-dd-100-q-g-a-s-0-00_00_jpg_1_1

RTS-DD-100-Q-G-A-S-0-00 Precision Rotary Table


  • Accuracy (arc-sec): 1080
  • Repeatability (arc-sec): 360
  • Resolution (arc-sec):
  • Peak Torque: 0.75
  • Drive Type: Direct Drive

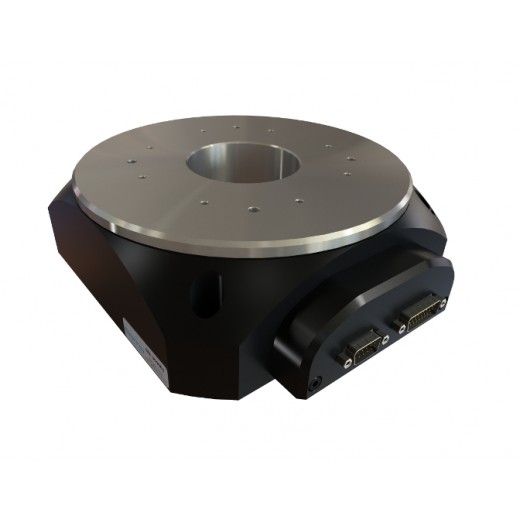

rts-dd-200-l-d-s-p-0-00_01_jpg_mod_2

RTS-DD-200-N-F-S-P-0-00 Precision Rotary Table


  • Accuracy (arc-sec): 20
  • Repeatability (arc-sec): 2
  • Resolution (arc-sec): 0.72
  • Peak Torque: 3.5
  • Drive Type: Direct Drive
rts-dd-200-l-d-s-u-0-00_01_jpg_mod_1

RTS-DD-200-N-J-S-U-0-00 Precision Rotary Table


  • Accuracy (arc-sec): 10
  • Repeatability (arc-sec): 1
  • Resolution (arc-sec): 0.36
  • Peak Torque: 3.5
  • Drive Type: Direct Drive

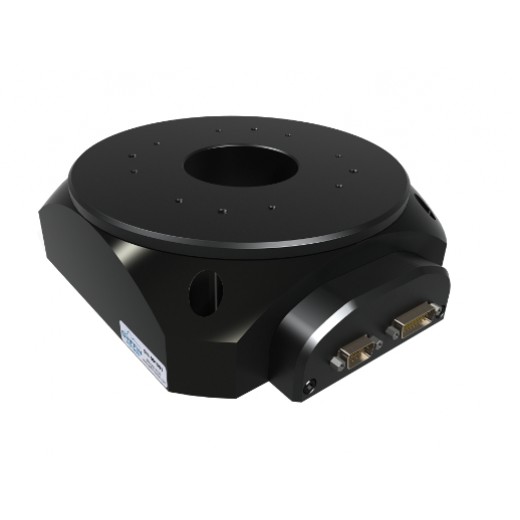

rts-dd-200-p-0-a-s-0-00_01_1

RTS-DD-200-P-H-A-S-0-00 Precision Rotary Table


  • Accuracy (arc-sec): 300
  • Repeatability (arc-sec): 200
  • Resolution (arc-sec): 71.429
  • Peak Torque: 3.5
  • Drive Type: Direct Drive
rts-dd-200-s-m-s-s-a-00_01_jpg_mod

RTS-DD-200-S-M-S-S-A-00 Precision Rotary Table


  • Accuracy (arc-sec): 20
  • Repeatability (arc-sec): 3
  • Resolution (arc-sec): 0.019
  • Peak Torque: 3.5
  • Drive Type: Direct Drive
rts-dd-200-l-d-a-p-0-00_00_jpg_3

RTS-DD-200-Y-C-A-P-0-00 Precision Rotary Table


  • Accuracy (arc-sec): 20
  • Repeatability (arc-sec): 2
  • Resolution (arc-sec): 0.6
  • Peak Torque: 3.5
  • Drive Type: Direct Drive
rts-dd-200-l-d-a-p-0-00_00_jpg_1_3

RTS-DD-200-Y-C-A-S-0-00 Precision Rotary Table


  • Accuracy (arc-sec): 30
  • Repeatability (arc-sec): 3
  • Resolution (arc-sec): 0.6
  • Peak Torque: 3.5
  • Drive Type: Direct Drive
rts-dd-200-y-c-s-p-0-00_01_jpg_mod

RTS-DD-200-Y-C-S-P-0-00 Precision Rotary Table


  • Accuracy (arc-sec): 20
  • Repeatability (arc-sec): 2
  • Resolution (arc-sec): 0.6
  • Peak Torque: 3.5
  • Drive Type: Direct Drive
rts-dd-200-l-d-s-u-0-00_01_jpg_mod_2

RTS-DD-200-Y-C-S-U-0-00 Precision Rotary Table


  • Accuracy (arc-sec): 10
  • Repeatability (arc-sec): 1
  • Resolution (arc-sec): 0.6
  • Peak Torque: 3.5
  • Drive Type: Direct Drive
rts-dd-200-l-e-a-s-0-00_00_jpg_1

RTS-DD-200-Y-E-A-S-0-00 Precision Rotary Table


  • Accuracy (arc-sec): 30
  • Repeatability (arc-sec): 3
  • Resolution (arc-sec):
  • Peak Torque: 3.5
  • Drive Type: Direct Drive

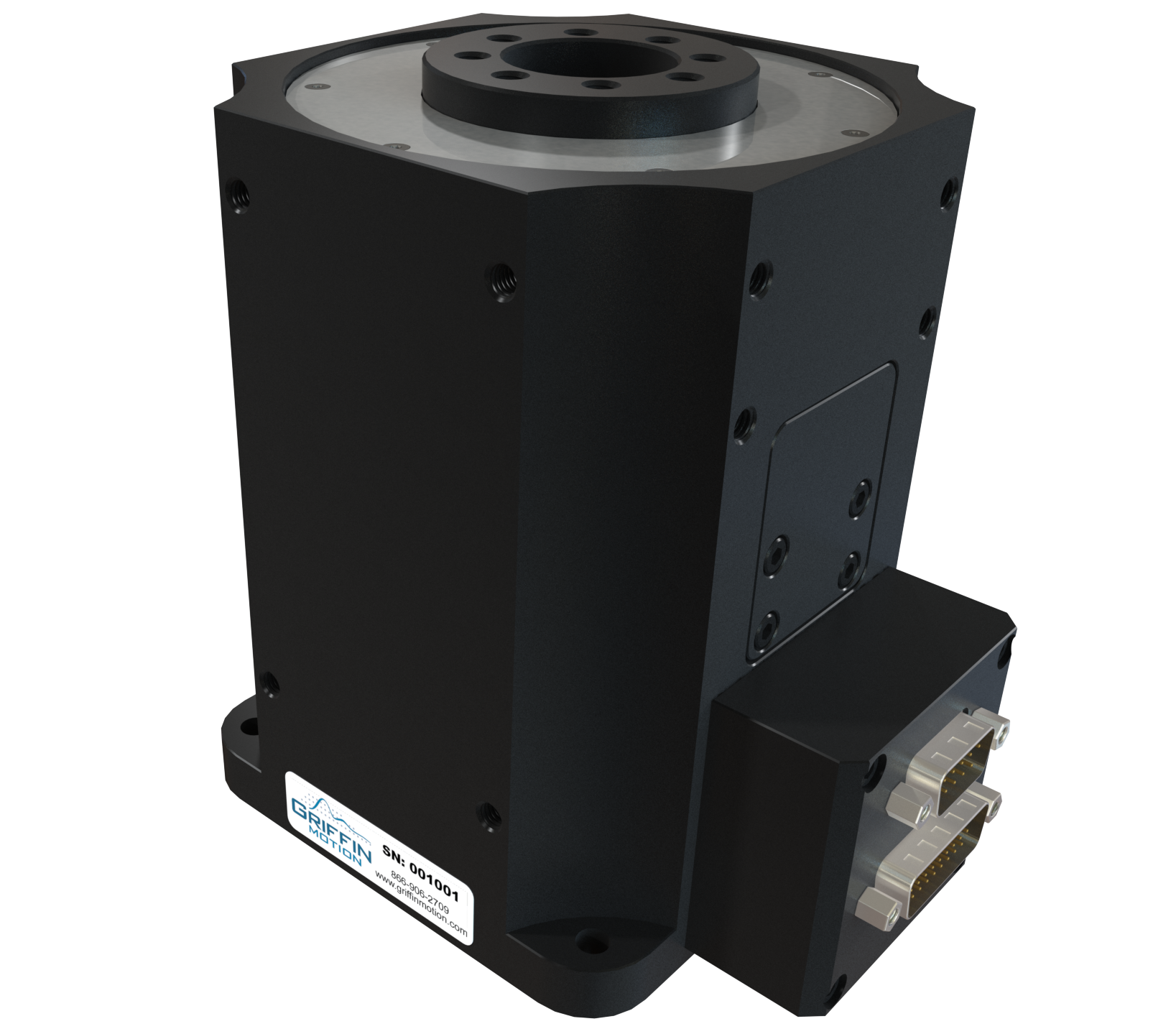

SRS-DD-100-M-E-A-S-0-00_01

SRS-DD-100-M-E-A-S-0-00 Precision Rotary Stage


  • Accuracy (arc-sec): 40*
  • Repeatability (arc-sec): 3*
  • Resolution (arc-sec): 10000 Sine Periods / rev
  • Peak Torque: 1.9
  • Drive Type: Direct Drive
