Gantry Systems
GT3-300-300

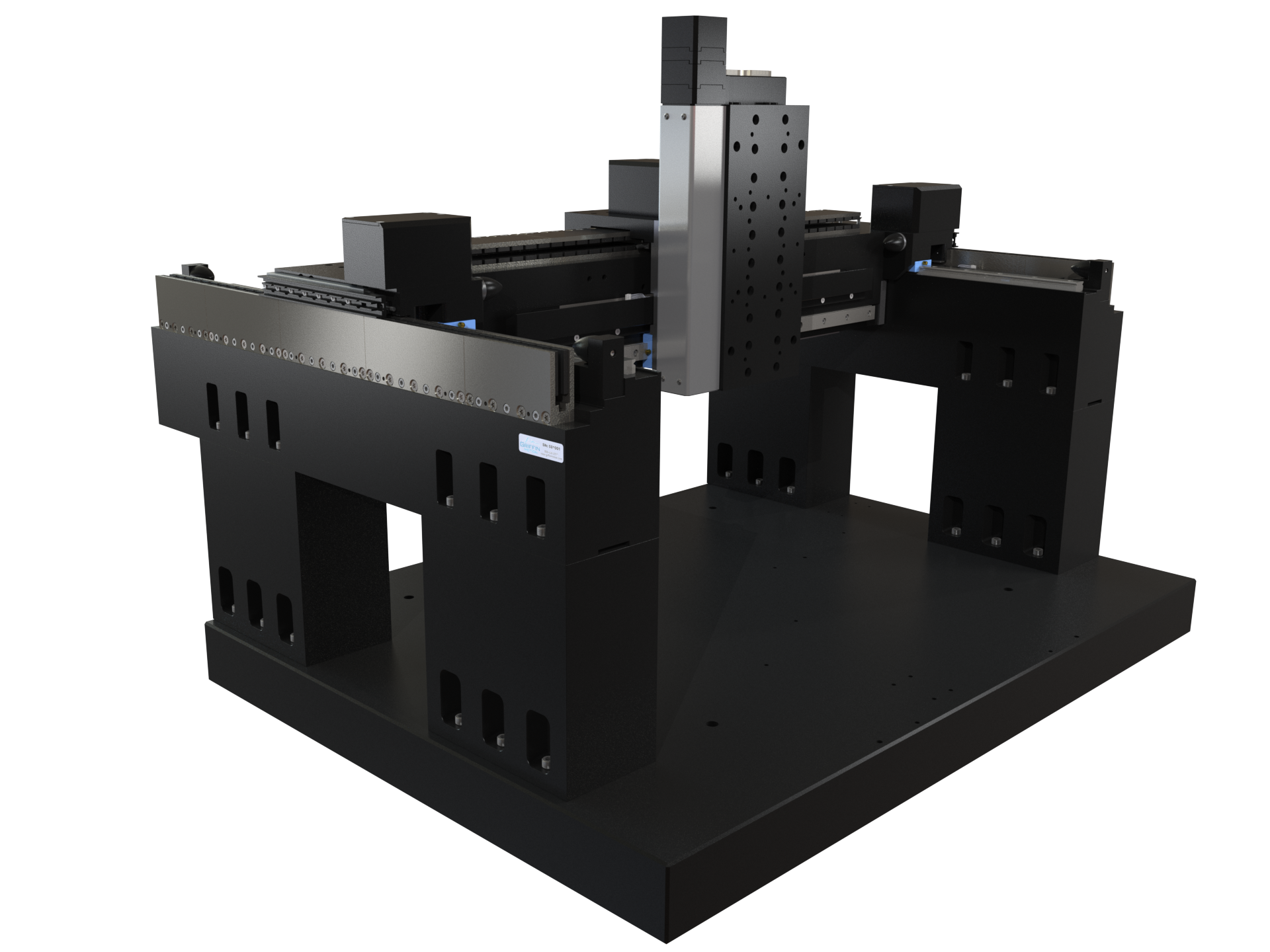

300 mm XYZ Granite Gantry Systems
- Product SKU:
- GT3-300-300
Do you have questions? Contact our Experts: (866) 906-2709
Overview
Gantry system assemblies are designed for a variety of applications. They combine multiple axis of motion to create a high precision work envelope. This system is built for high duty cycles and long life and can attain high velocities for factory automation and semiconductor processing equipment. The precision Z ball screw stage can be configured for different required travels ranging from 50mm to 150mm. Integrated cable management for both the stage and customer mounted pieces are available.
Features
300mm X and Y Travel
50-150mm Z Travel
High speed linear motors
Precision Z ball screw stage with optional brake
Full cable management for stages and customer application
Extremely high levels of orthogonality, flatness, and repeatability
Specifications
| Accuracy (µm): | 15 |
|---|---|
| Height (mm): | 603 |
| Length (mm): | 677 |
| Stage Mass (kg): | 160 |
| Repeatability (µm): | 2 |
| Width: | 800 |

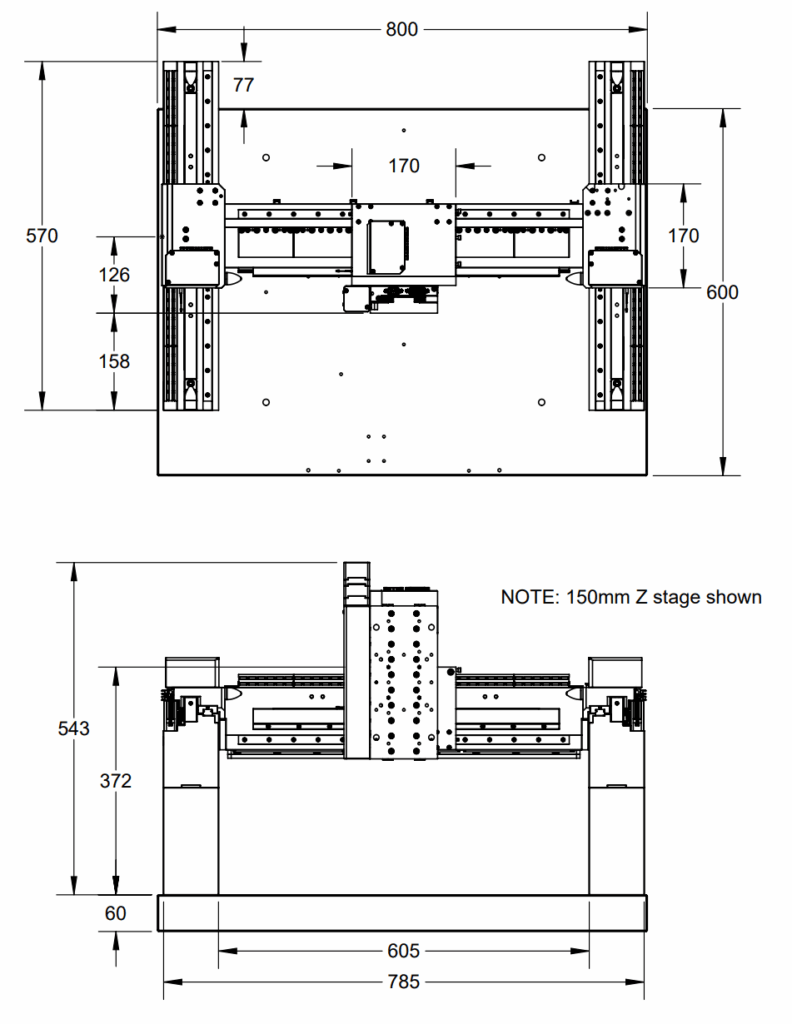

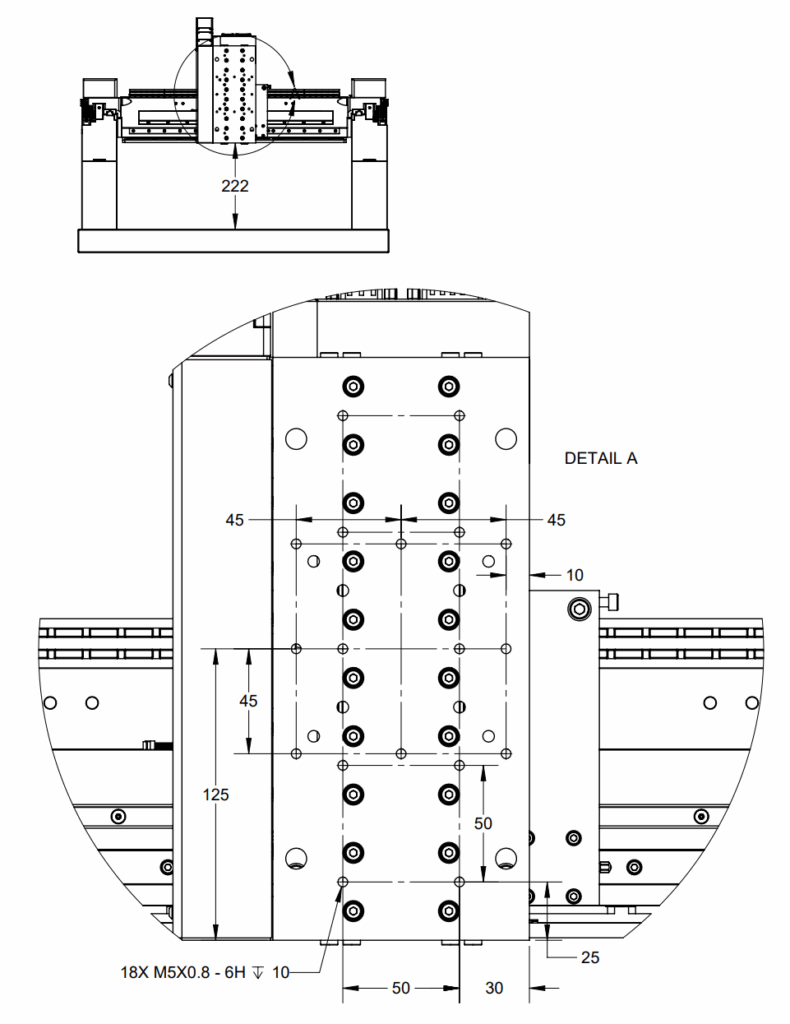

Mechanical Details

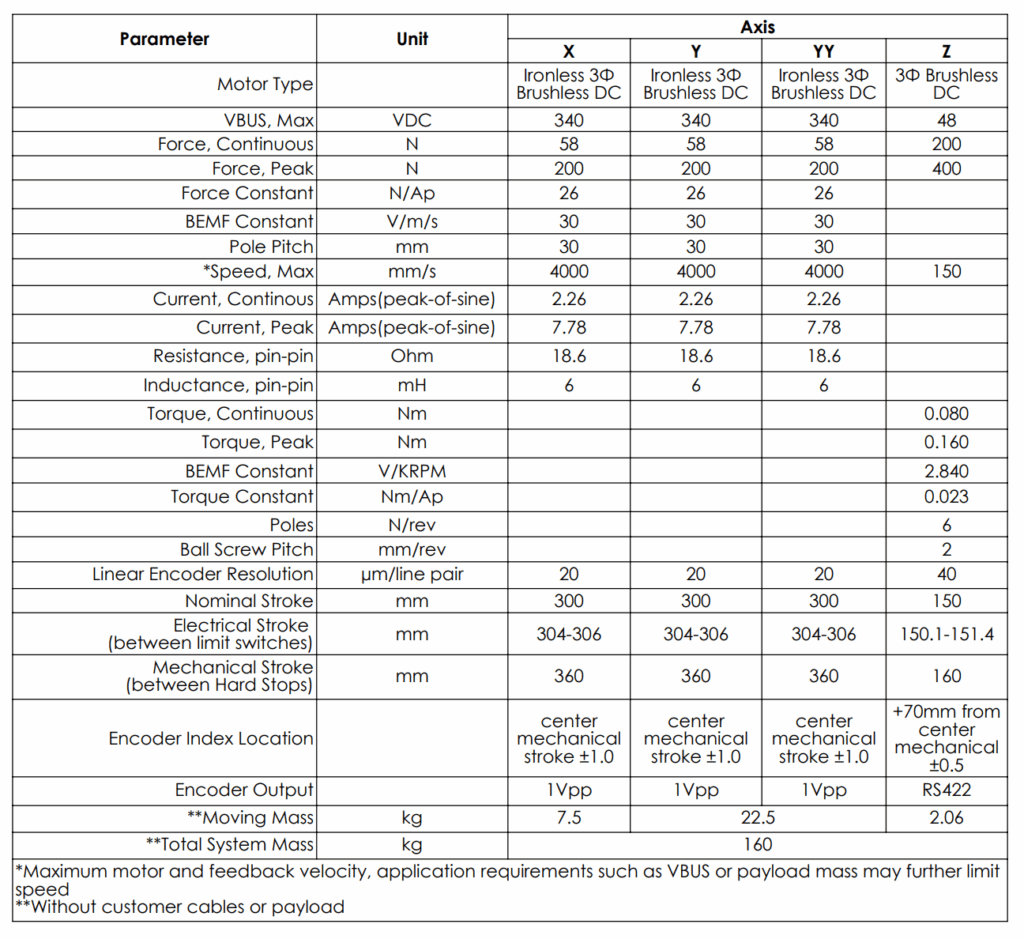

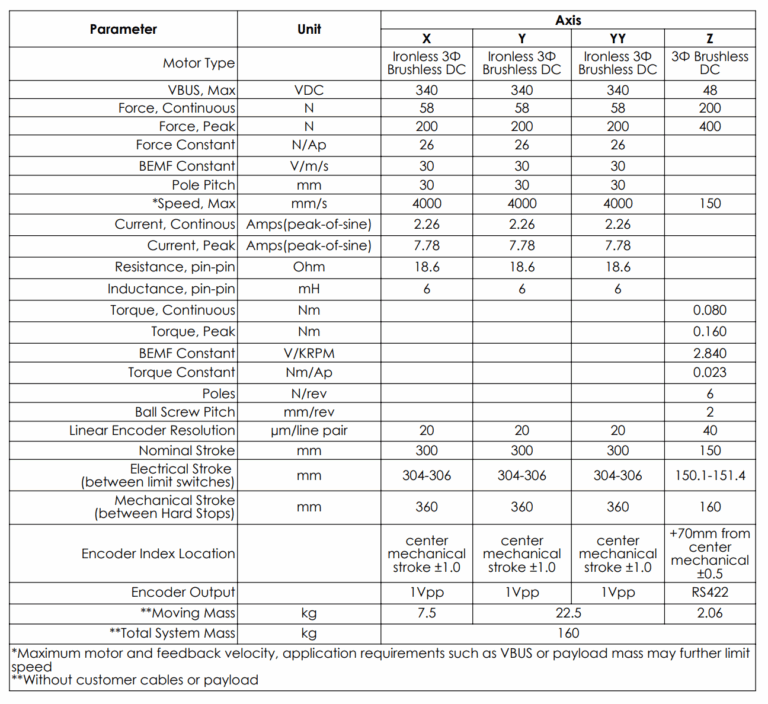

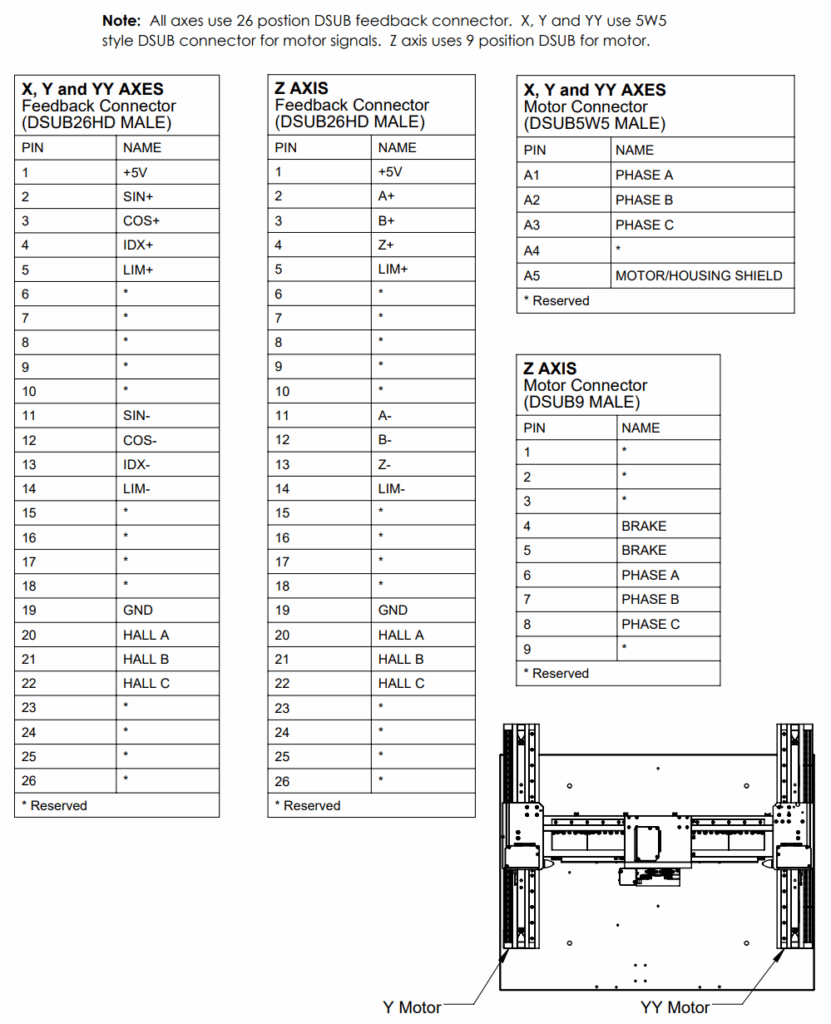

Electrical Details
