Rotary Stages

RTS-DD-150-BB-C-A-S-0-00

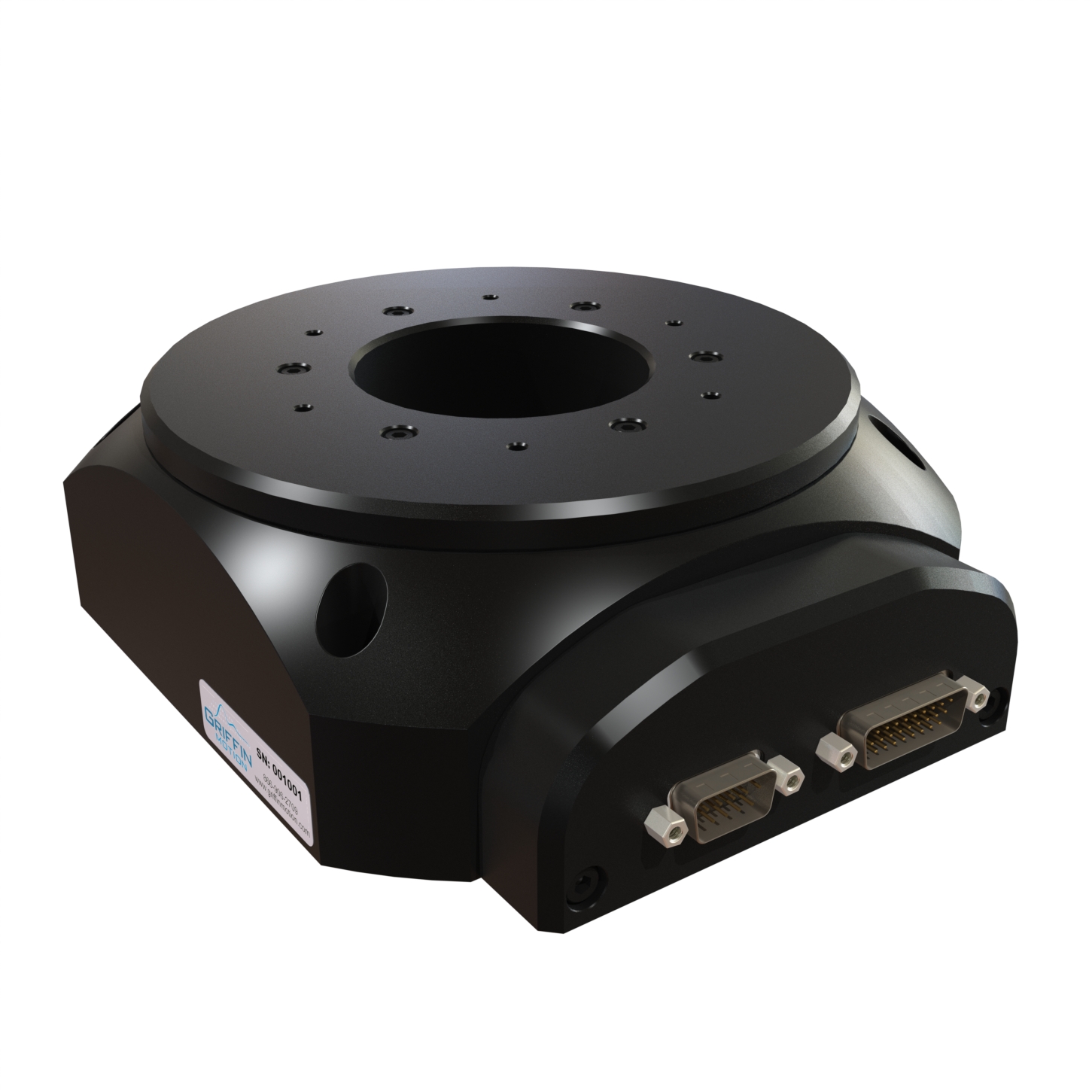

Precision Rotary Table

Product SKU:: RTS-DD-150-BB-C-A-S-0-00

Do you have questions? Contact our Experts: (866) 906-2709

Overview

The RTS-DD Series Rotary tables are compact, direct drive, precision positioning tables designed for laboratory, factory automation and semiconductor processing equipment.

Features

Compact Low-Profile Design

Continuous 360° rotation

60mm through bore

High resolution encoder

Precision index mark for homing

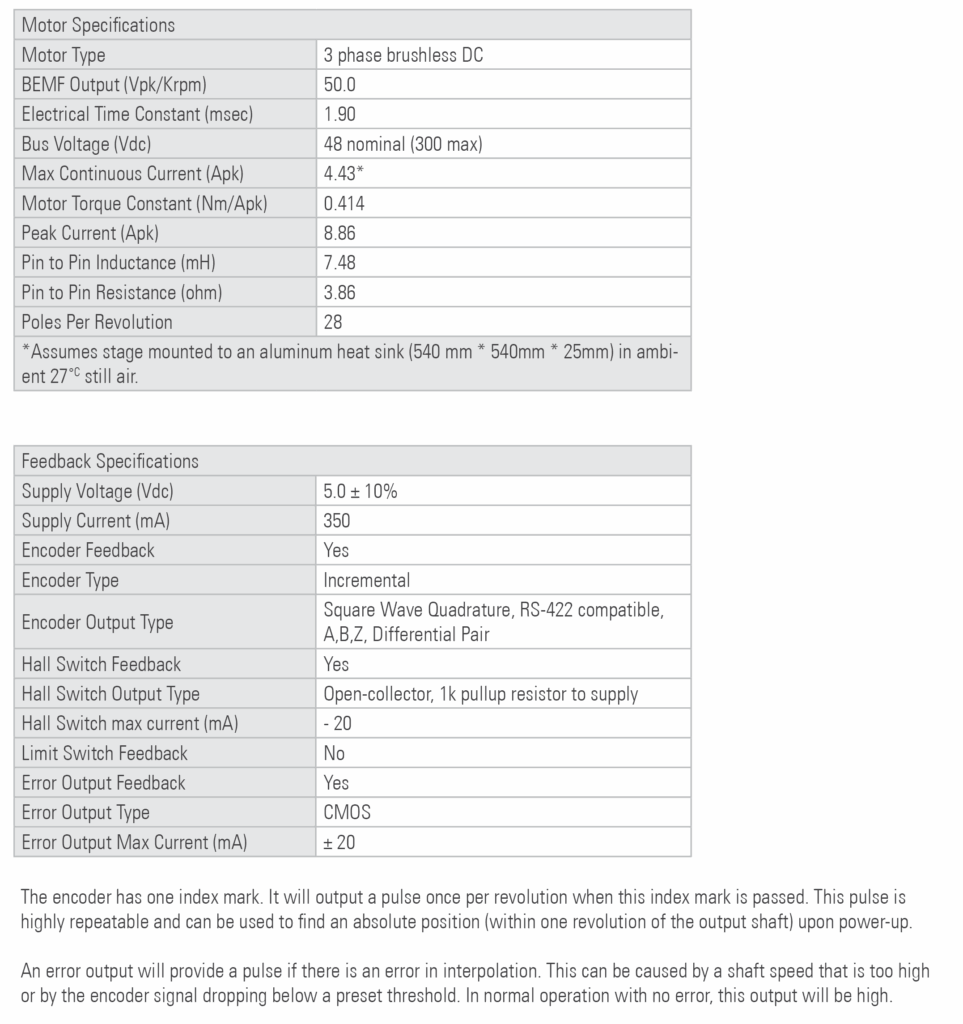

Direct drive brushless servo motor

Specifications

Additional Options:	No Additional Options
Drive Type:	Direct Drive
Encoder Output:	A quad B, index

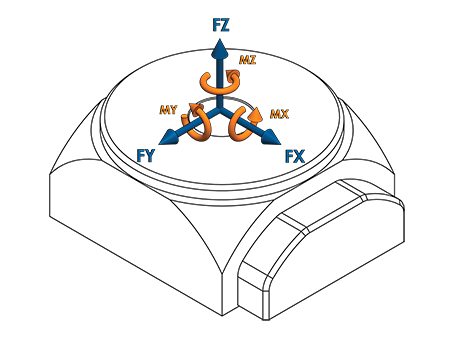

Force X:	180
Force Y:	180
Force Z:	350

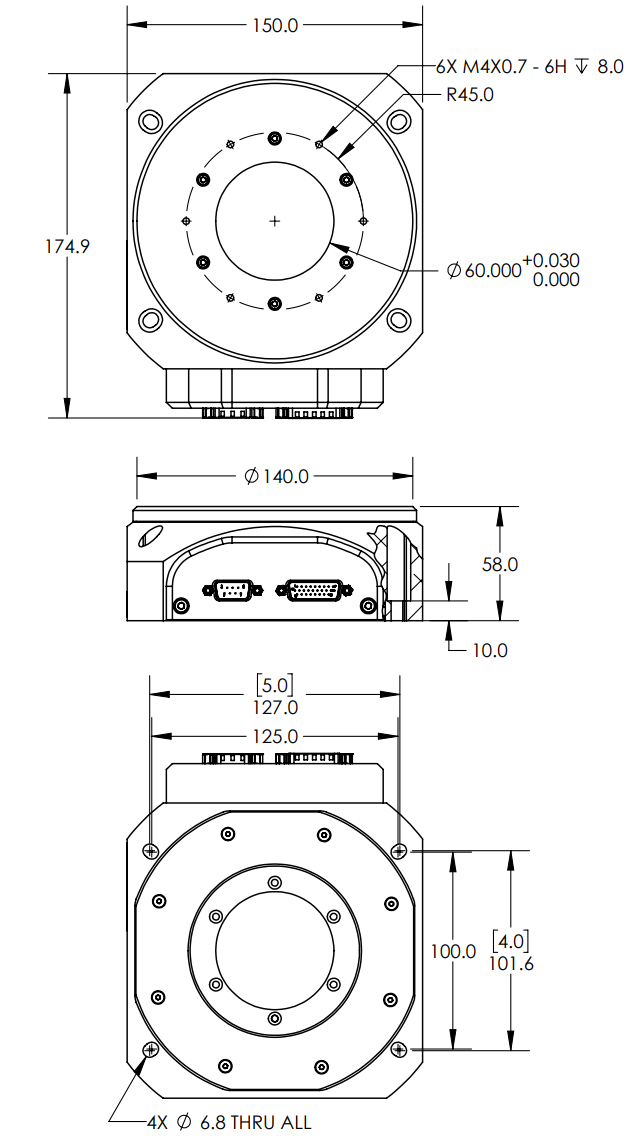

Height (mm):	58
Length (mm):	175
Limit Switches:	No
Moment X:	15
Moment Y:	15
Radial Runout (µm):	10
Rotational Inertia (kgm):	0.0025
Stage Mass (kg):	2.7
Precision Class:	Standard Precision
Travel Range (deg):	360 continuous
Width:	150
