RCS-150-AD-BB-D-ER25-00

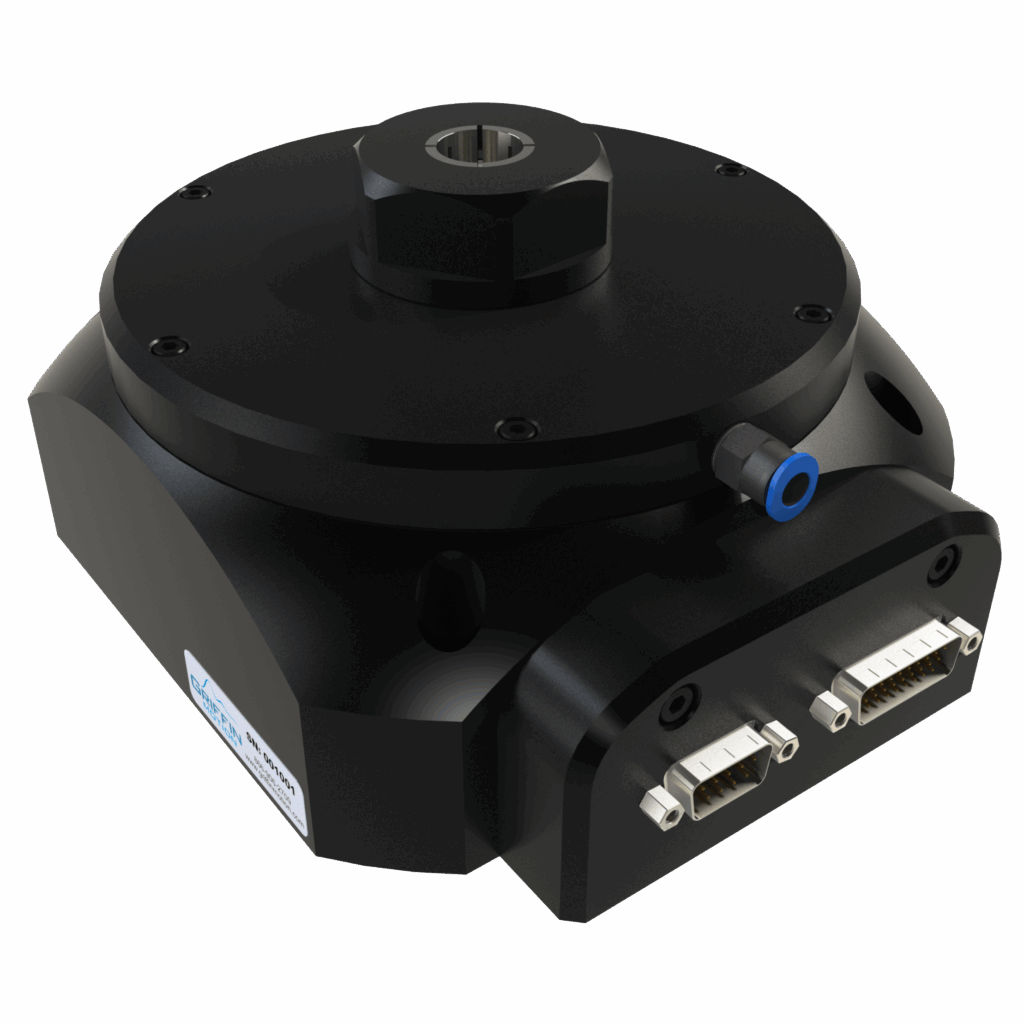

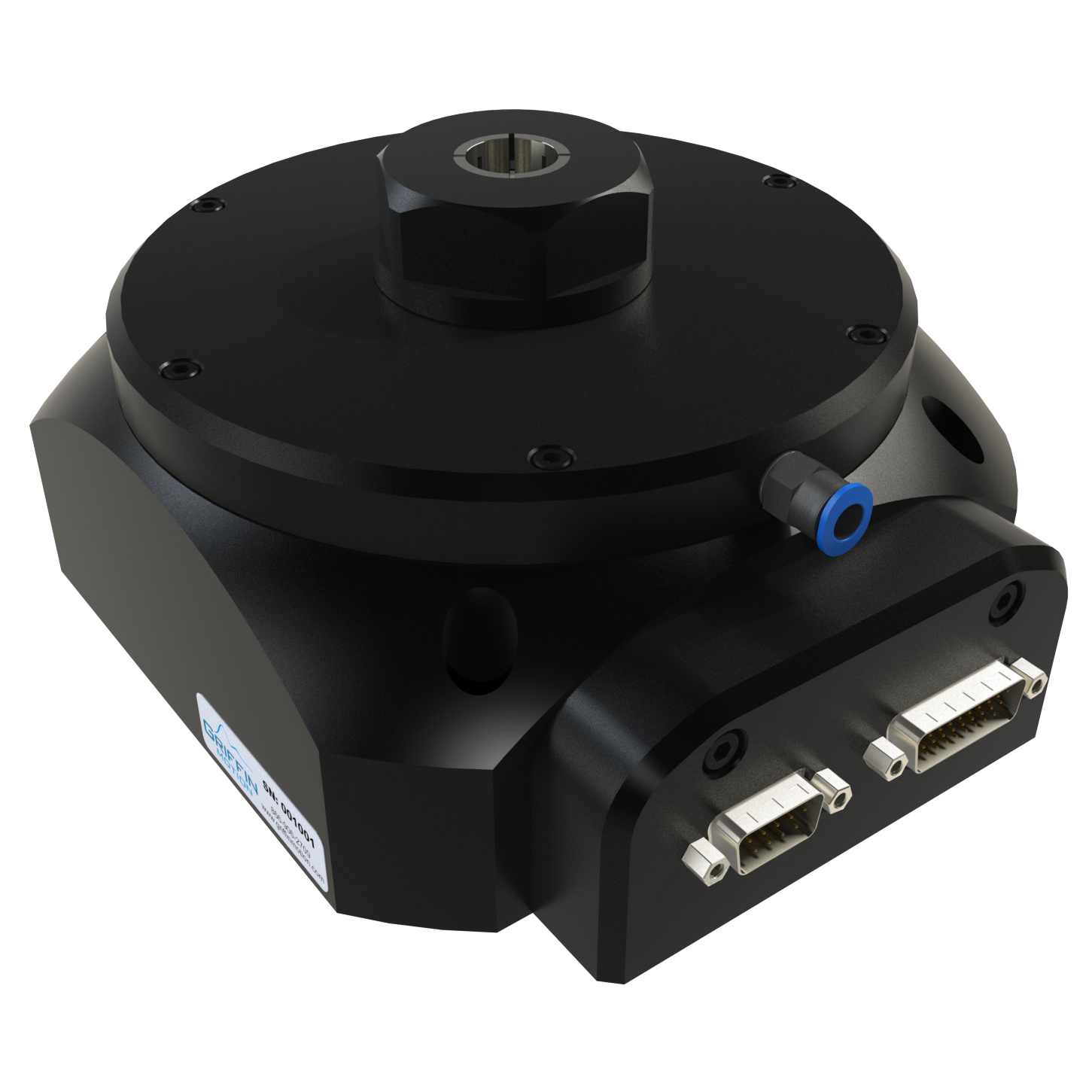

Precision ER25 Collet Rotary Stage with Pneumatic Collet Actuation

Product SKU:: RCS-150-AD-BB-D-ER25-00

Do you have questions? Contact our Experts: (866) 906-2709

Overview

The RCS series rotary stages are designed for precise positioning and workholding to suit a variety of applications. The brushless direct drive technology eliminates backlash and improves reliability by eliminating sliding friction throughout the stage. The pneumatic open, spring close system allows for a range of collet sizes with exceptional runout capability.

Features

Compact Low-Profile Design

Continuous 360° rotation

16mm through bore

High resolution encoder

Spring close, pneumatic open collet

Accepts ER25 type collets

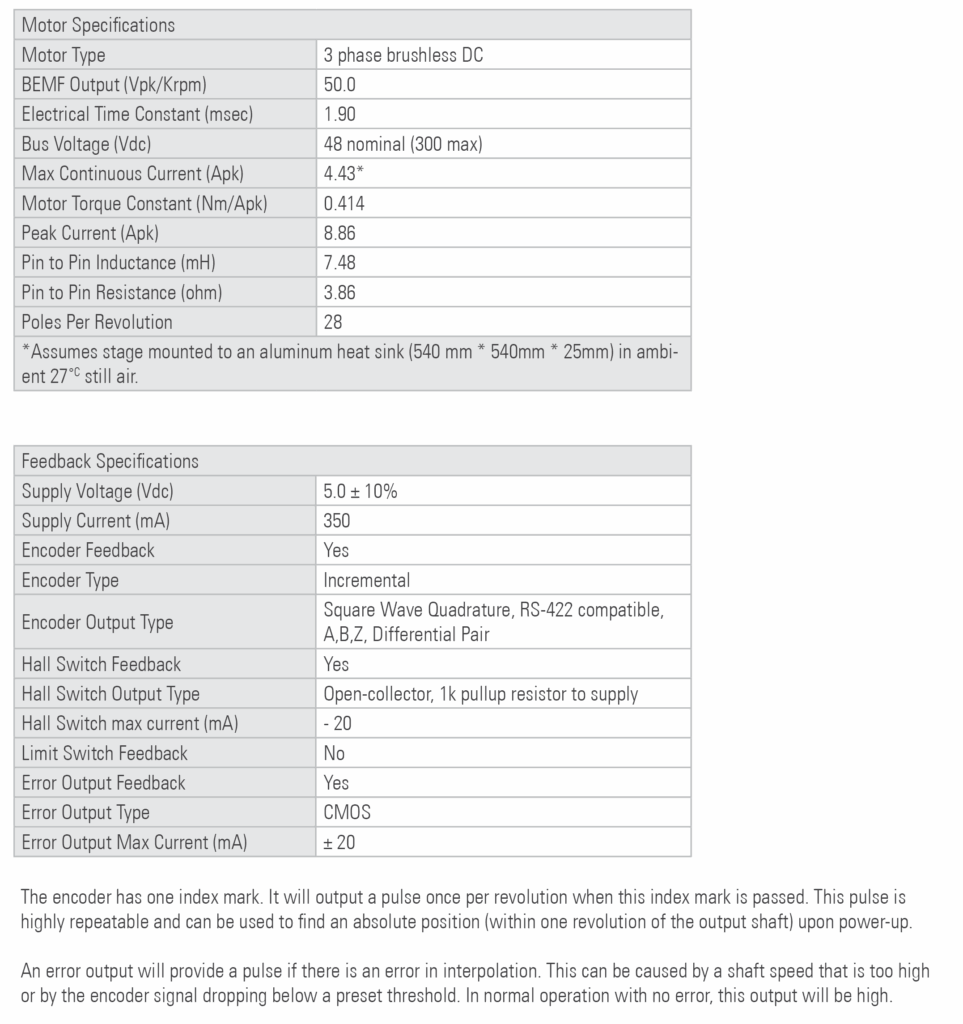

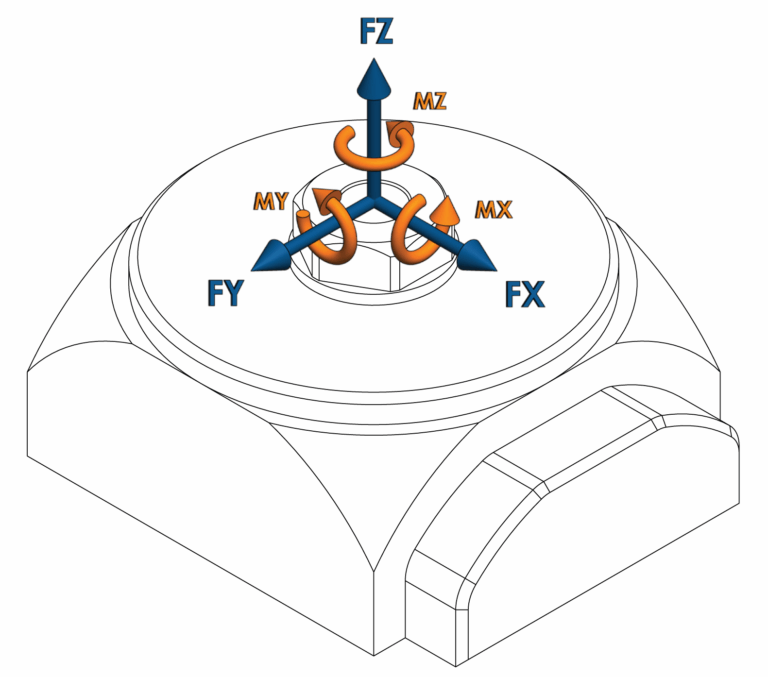

Specifications

Additional Options:	No Additional Options
Drive Type:	Direct Drive
Encoder Output:	A quad B, index

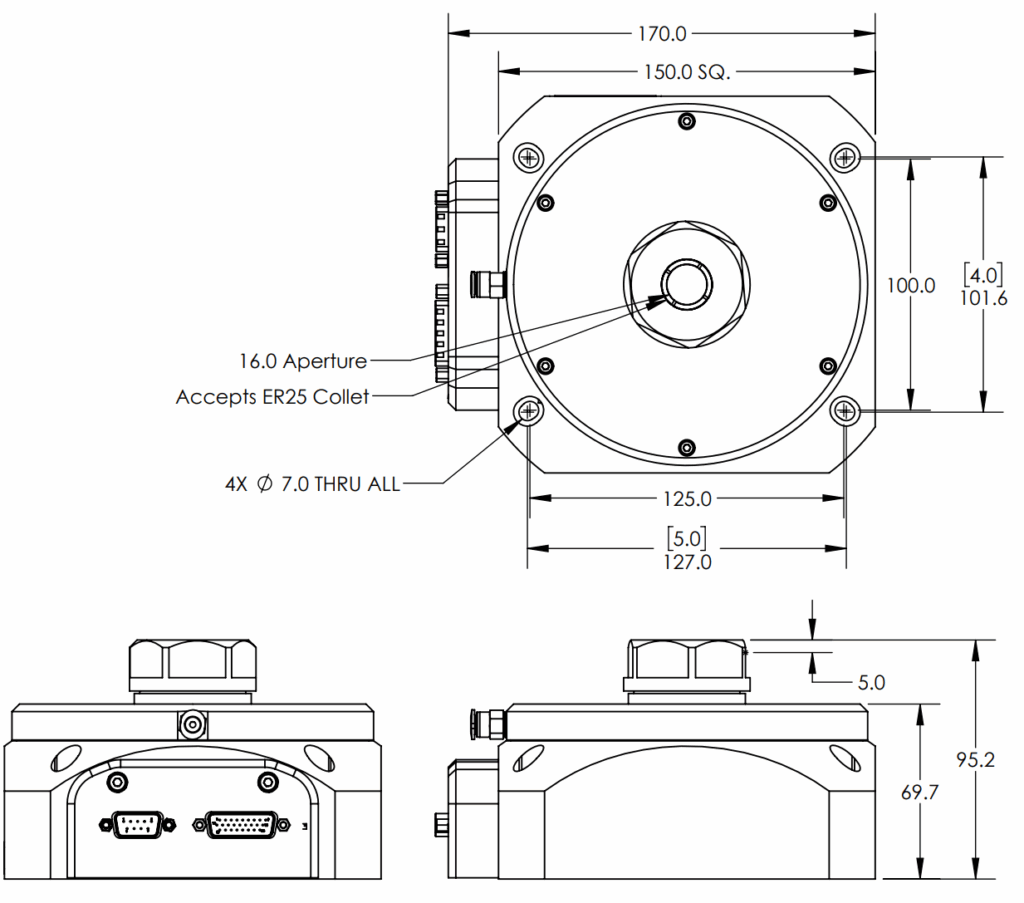

Height (mm):	95.2
Length (mm):	170
Limit Switches:	No
Radial Runout (µm):	30
Rotational Inertia (kgm):	0.002465
Stage Mass (kg):	3.6
Precision Class:	Standard Precision
Travel Range (deg):	360 continuous
Width:	150
