Linear Stages

LM7-150-BS-D-W-S-F-00

Precision Linear Motion Platform

Product SKU:: LM7-150-BS-D-W-S-F-00

Do you have questions? Contact our Experts: (866) 906-2709

Overview

The LM7-BS series stages are designed for high loading capacities and long travels to suit a variety of applications. This ball screw stage is built for high duty cycles and long life and can attain high velocities for factory automation and semiconductor processing equipment. Recirculating ball linear ways paired with a high torque brushless motor and precision ground ball screw drive offer extremely smooth operation and velocity control. This stage has exceptional levels of accuracy, repeatability, flatness and straightness. Side seals and a hard cover make it an excellent choice for dirty environments. The LM7 Series stages can be stacked to create X, Y and Z motion.

Features

High capacity

150mm travel

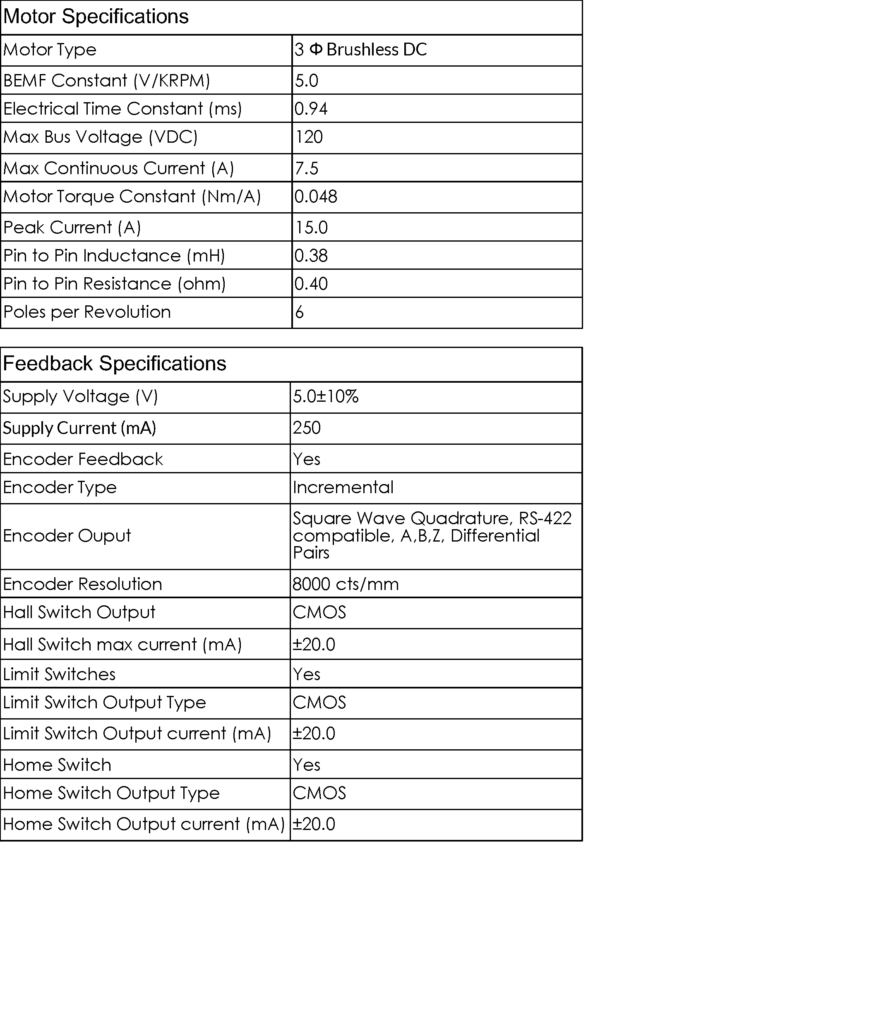

High torque brushless servo motor

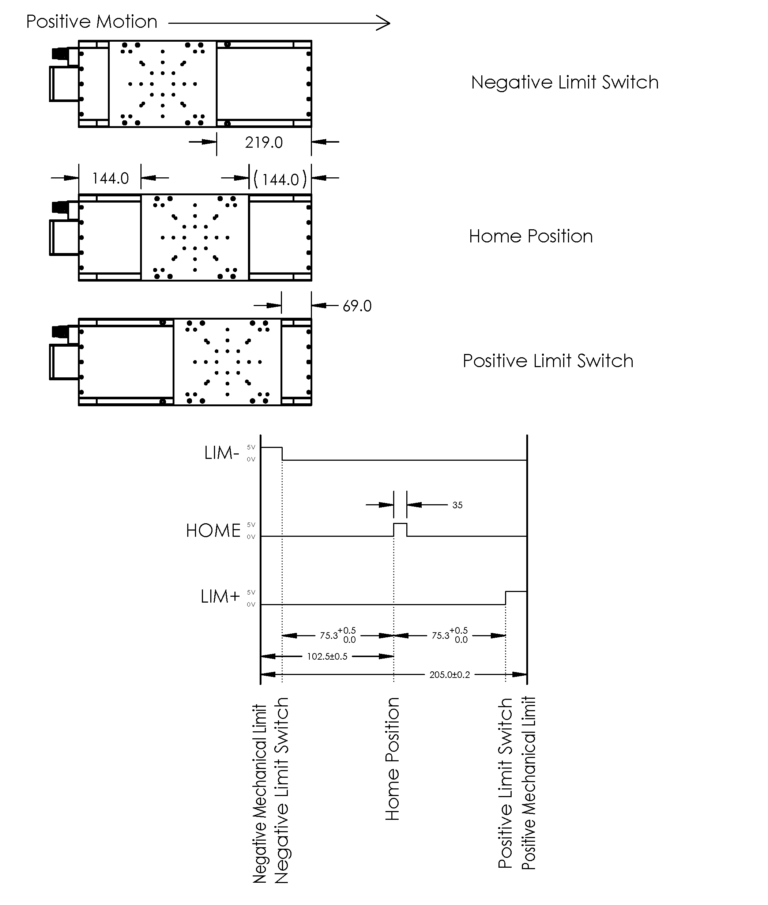

Optical limit switches with home

High resolution rotary encoder

Zero backlash, precision ground 2mm lead ball screw

Recirculating ball linear ways

Side seals

Specifications

Accuracy (µm):	20
Additional Options:	Side Seals
Drive Type:	Ball Screw
Encoder Output:	A Quad B
Encoder Resolution (µm):	0.125
Flatness (µm):	8

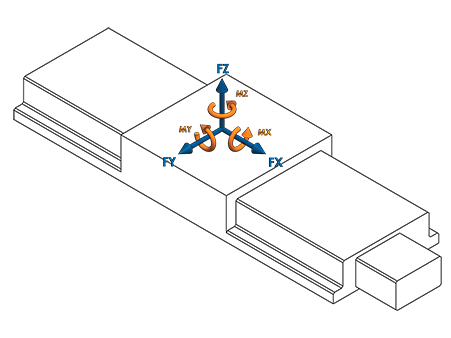

Force X:	800
Force Y:	1000
Force Z:	1500

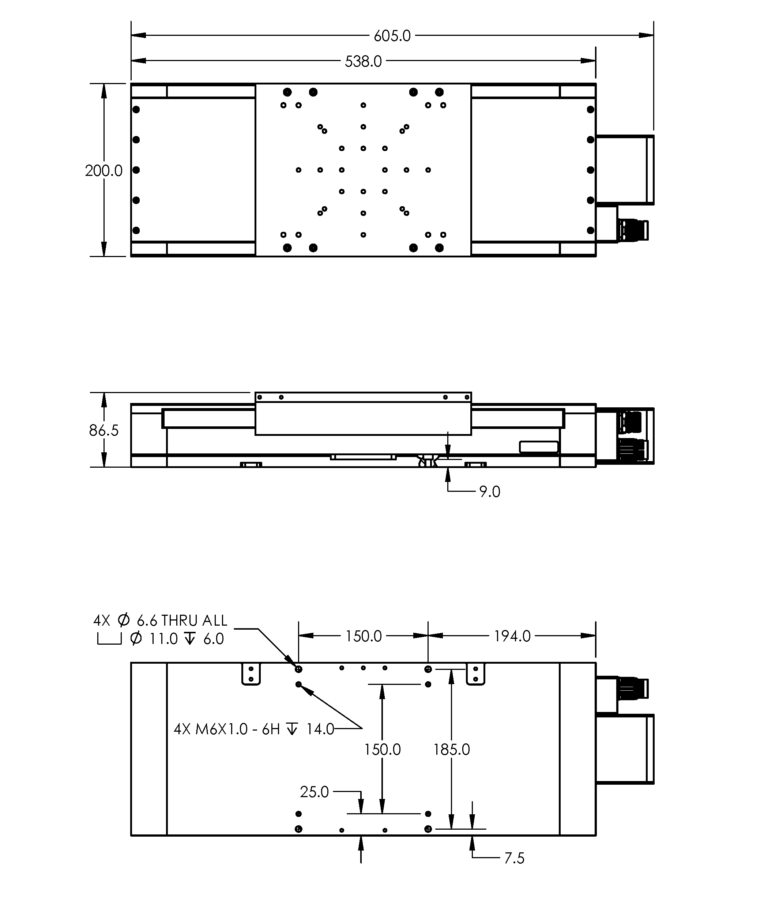

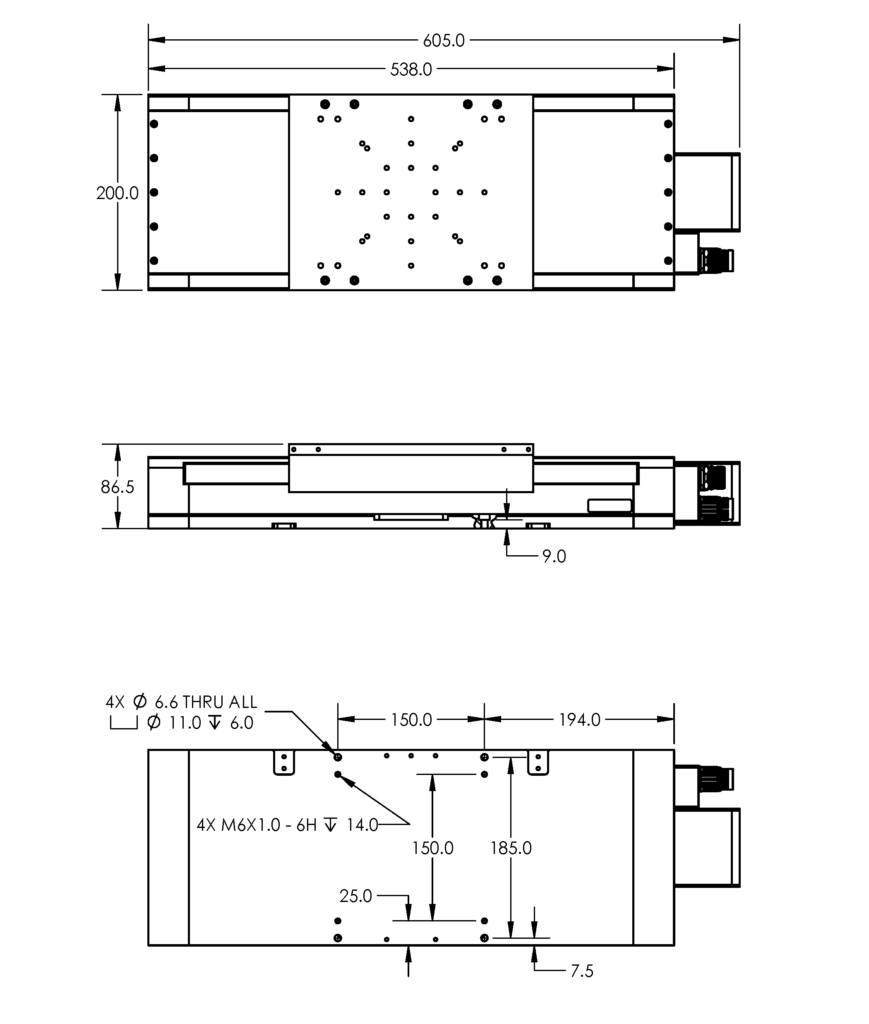

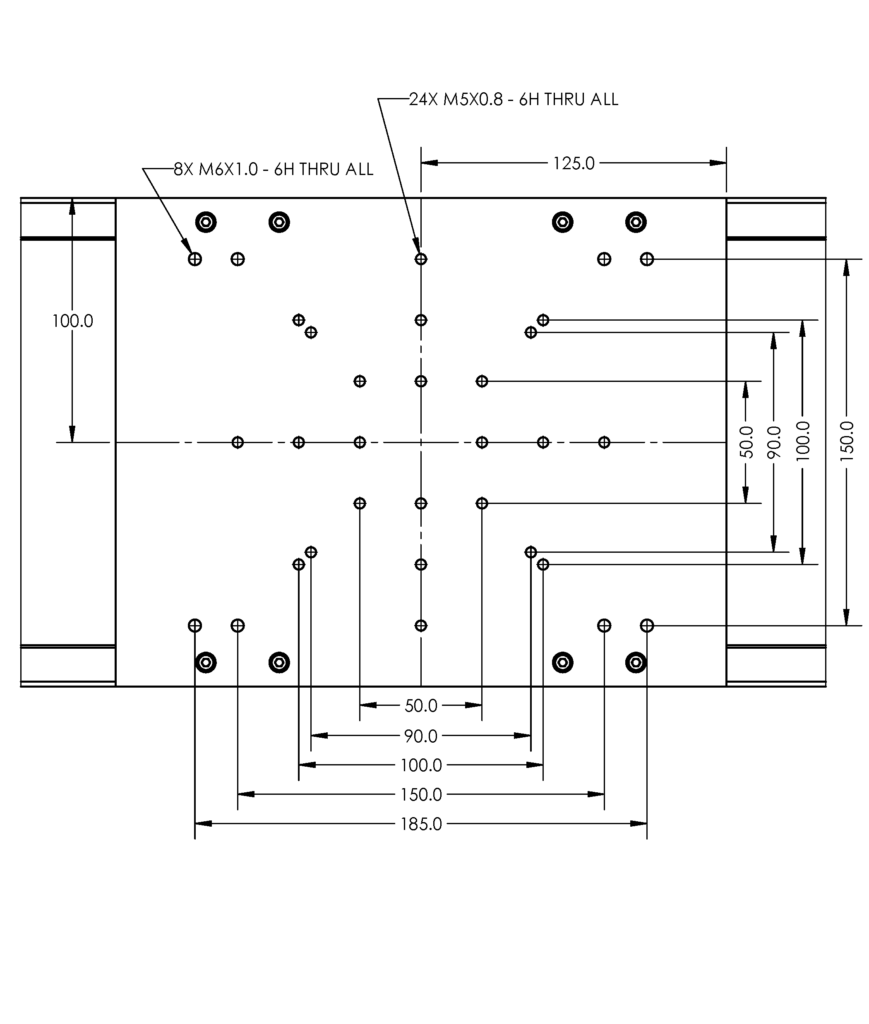

Height (mm):	86.5
Length (mm):	605

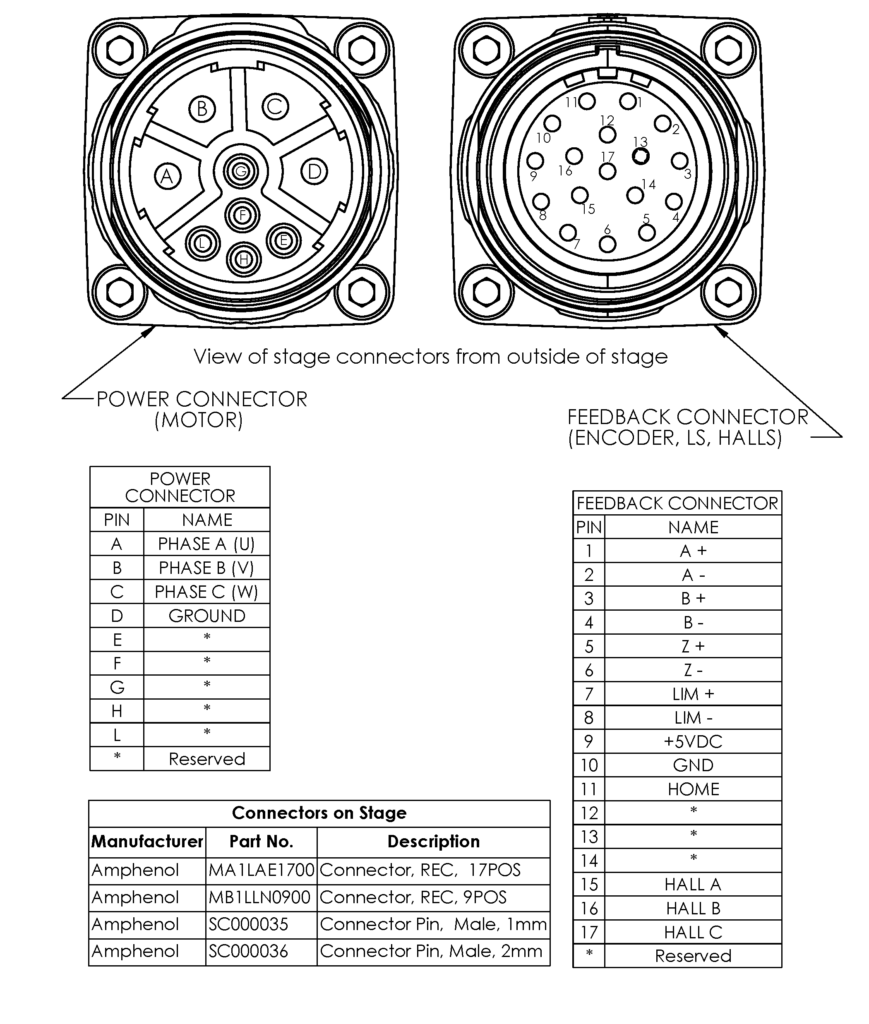

Limit Switches:	Yes
Moment X:	400
Moment Y:	600
Moment Z:	200
Moving Mass X:	6.2
Pitch (arc-sec):	10
Stage Mass (kg):	17.4
Precision Class:	Standard Precision
Repeatability (µm):	2
Travel (mm):	150
Width:	200
Yaw:	10
