Elevator Stages

ELV-025-BS-D-H-S-0-00

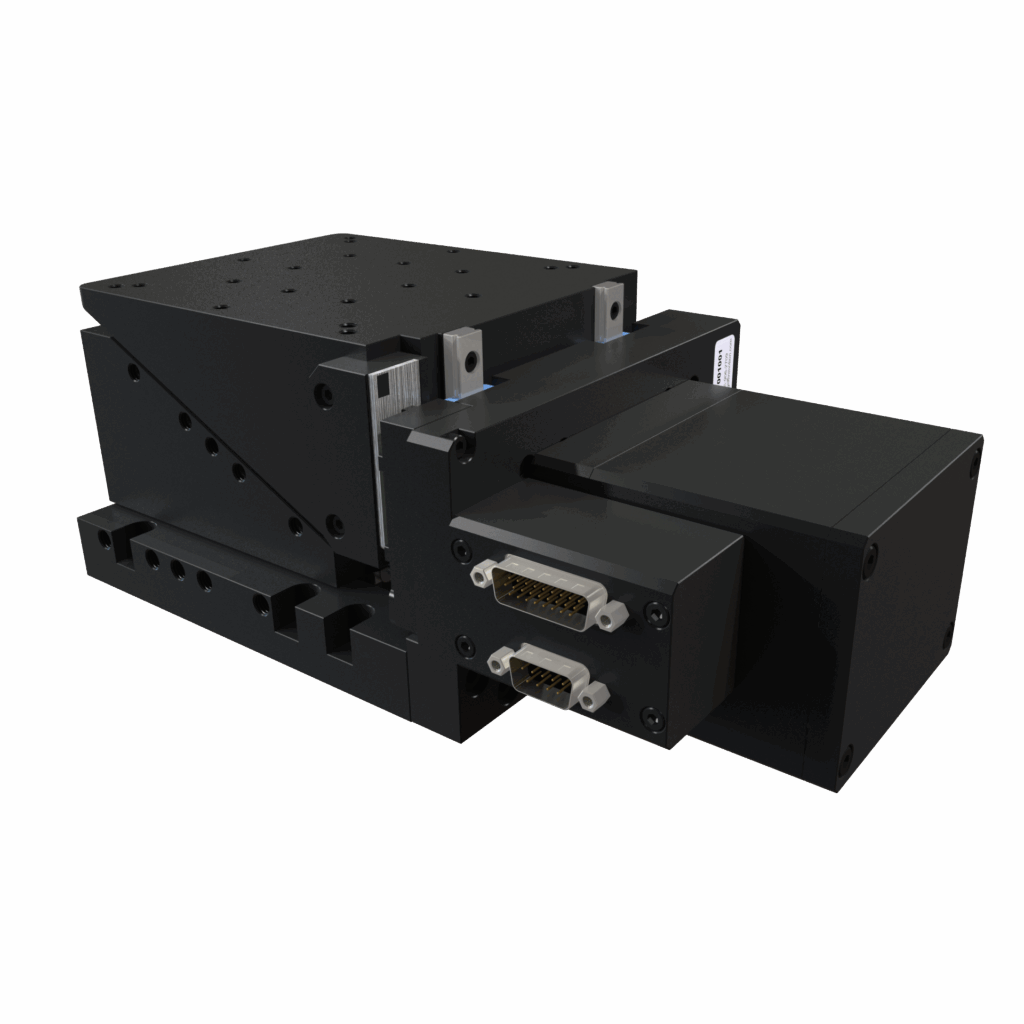

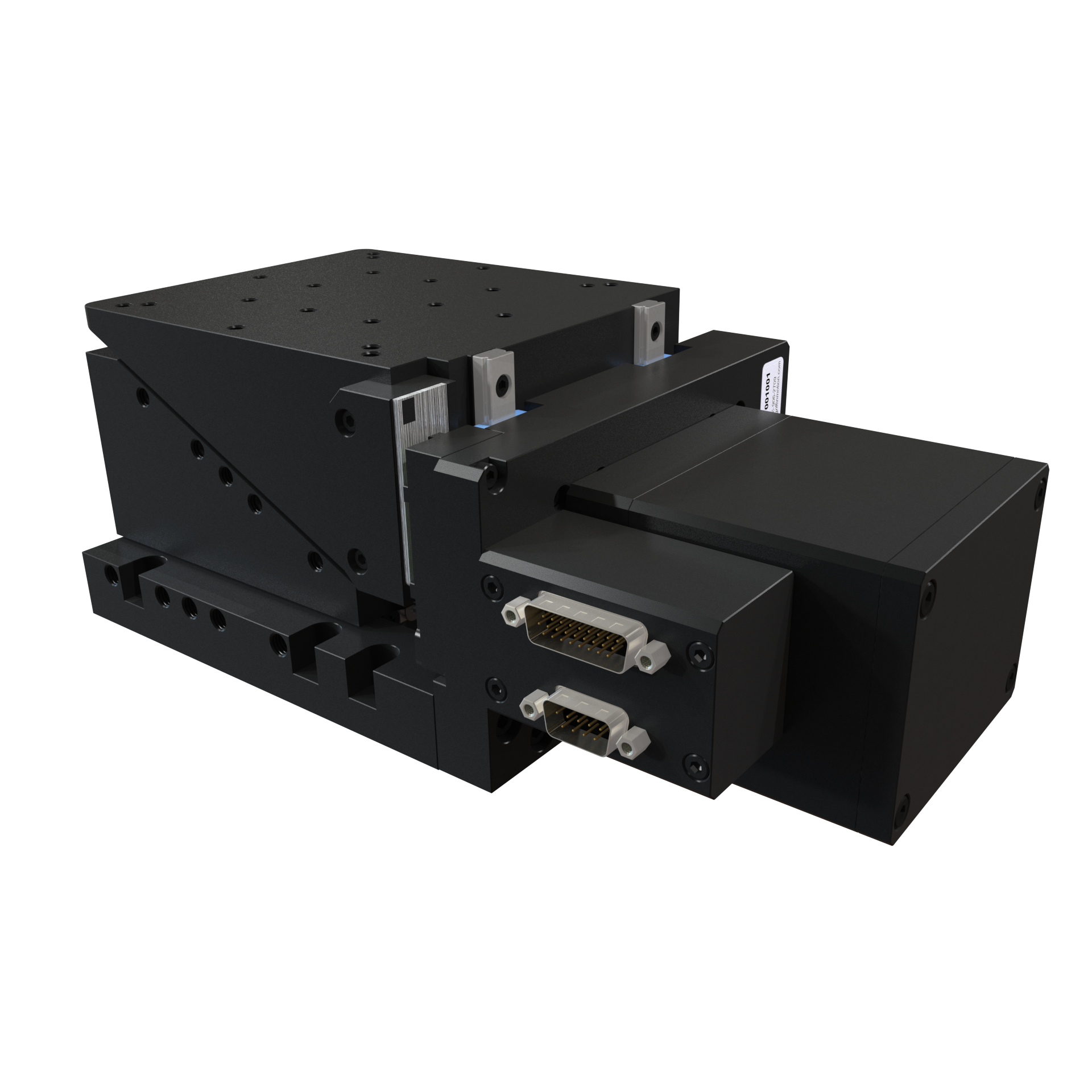

25mm Precision Z Motion Platform

Product SKU:: ELV-025-BS-D-H-S-0-00

Do you have questions? Contact our Experts: (866) 906-2709

Overview

The ELV-BS series stages are designed for a variety of applications. These reliable ball screw stages combine high speed and high accuracy and are built for high duty cycles and long life for laboratory, factory automation and semiconductor processing equipment. They are safe for upright or inverted use and can be configured with custom payload mounting holes. The wedge design and crossed roller bearings offer an extremely rigid Z stage.

Features

25mm Z Travel

High rigidity wedge design

Zero backlash, precision ground ball screw

Optical limit switches with home

High resolution rotary encoder

Brushless servo motor drive

Crossed roller bearings

Available Power-Off Brake

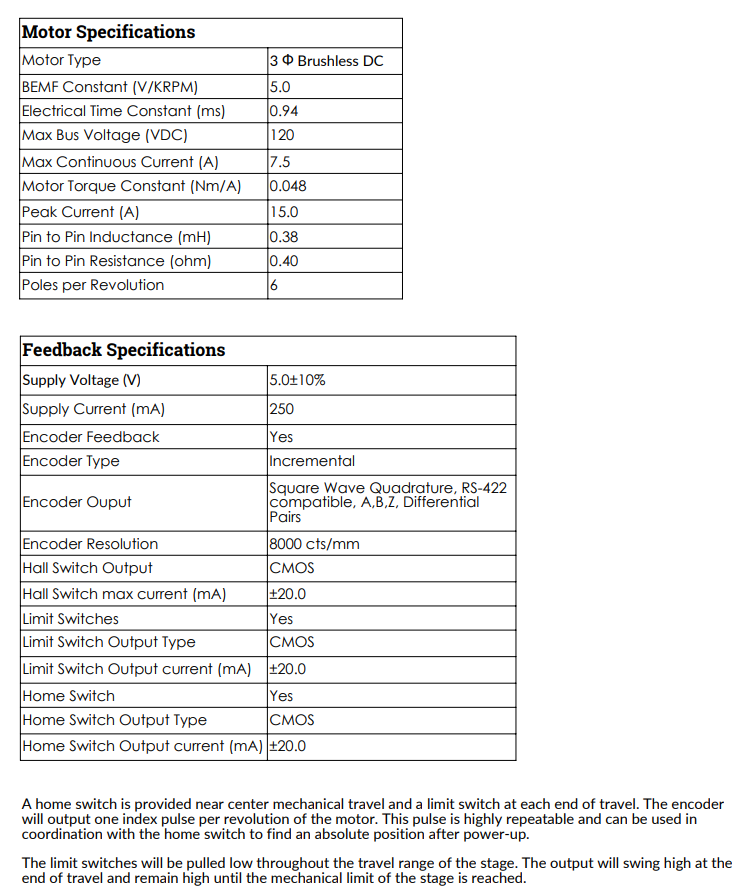

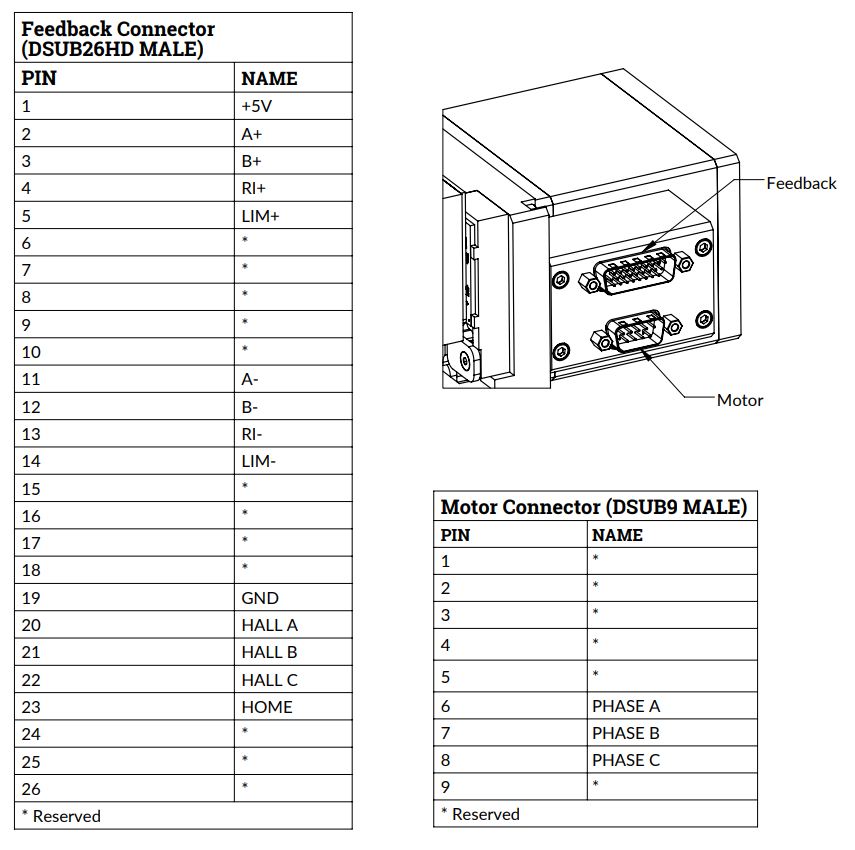

Specifications

Accuracy (µm):	10
Drive Type:	Ball Screw
Encoder Output:	A quad B, index
Encoder Resolution (µm):	0.0625
Force X:	200
Force Y:	200
Force Z:	200

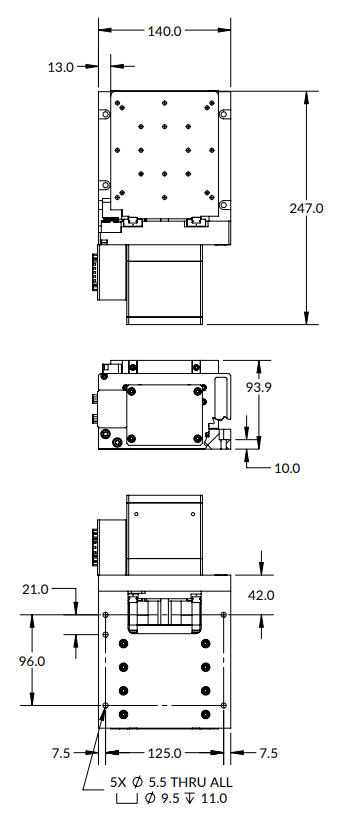

Height (mm):	93.9
Length (mm):	247
Limit Switches:	Yes
Moment X:	10
Moment Y:	10
Moment Z:	10
Moving Mass Z:	3.1
Pitch (arc-sec):	10
Screw Lead (mm):	2
Stage Mass (kg):	5.9
Repeatability (µm):	2
Width:	140
Yaw:	10
