Elevator Stages

ELV-012

12mm Vertical Lifting Stage

Product SKU:: ELV-012

Do you have questions? Contact our Experts: (866) 906-2709

Overview

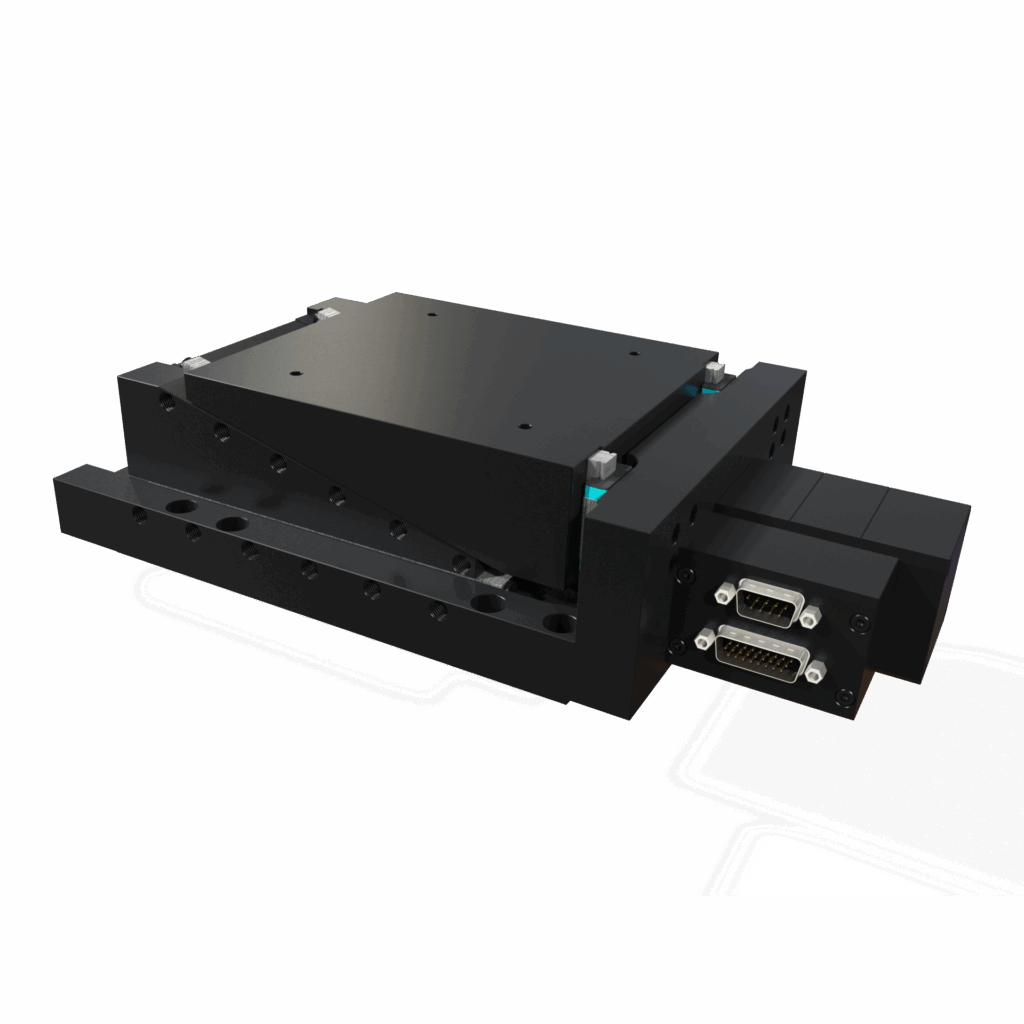

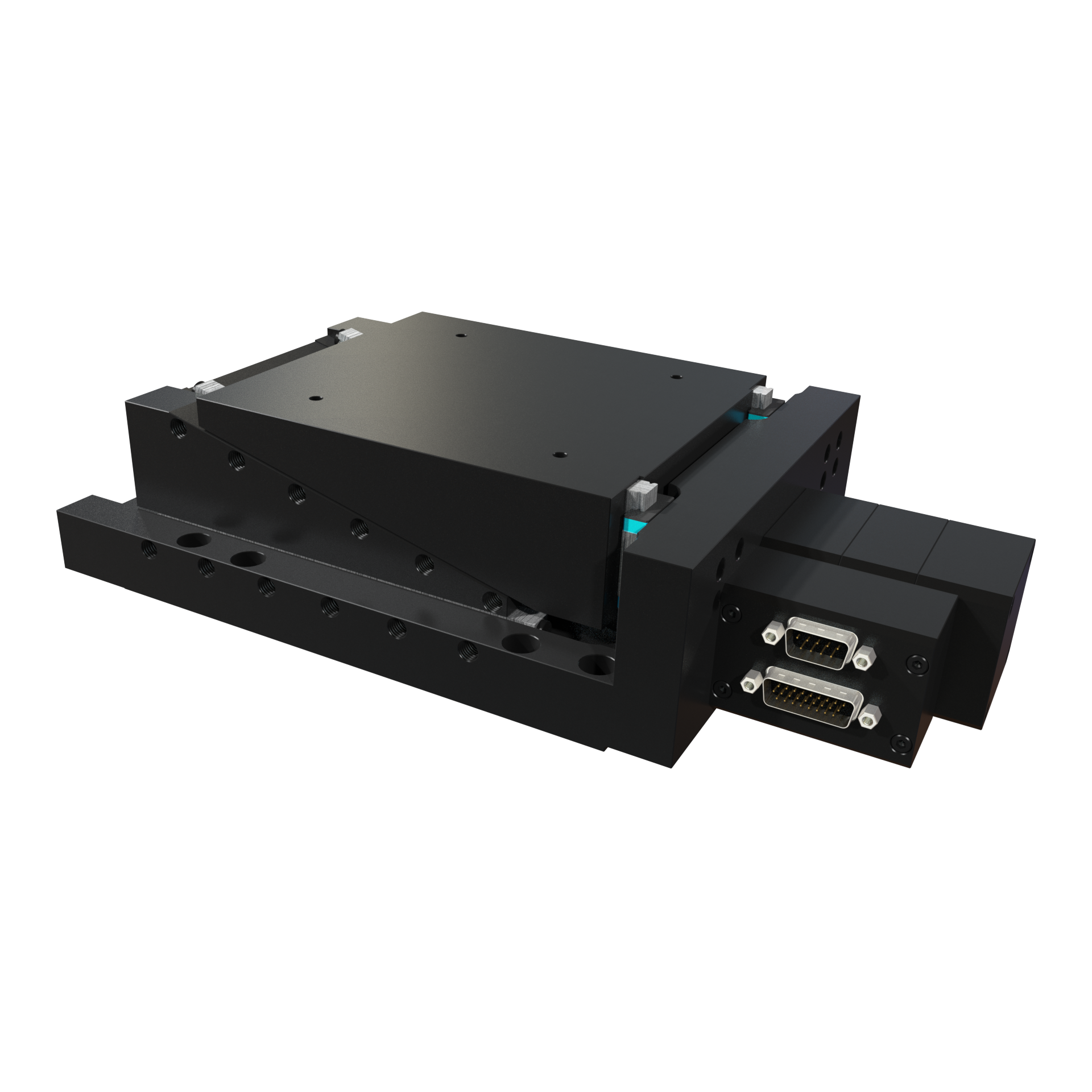

The ELV-012 is one of Griffin Motion’s high-precision vertical lifting stages, designed for applications requiring exceptional Z-axis positioning accuracy in a compact footprint. Utilizing a precision ballscrew-driven wedge mechanism with a 4:1 mechanical advantage, the ELV-012 delivers smooth, stable vertical motion across 12 mm of travel while maximizing stiffness and load capacity.

Ideal for microscopy, photonics, semiconductor, and metrology applications, the ELV-012 provides precise height adjustment with excellent repeatability and long-term reliability. An optional power-off engaged brake prevents motion during power disruption events.

Features

12mm Travel

Up to 1.0µm Repeatability

Brushless DC Motor

Crossed Roller Bearings

Optical Limit and Home Switches

Optional Linear Encoder

Low Profile Design

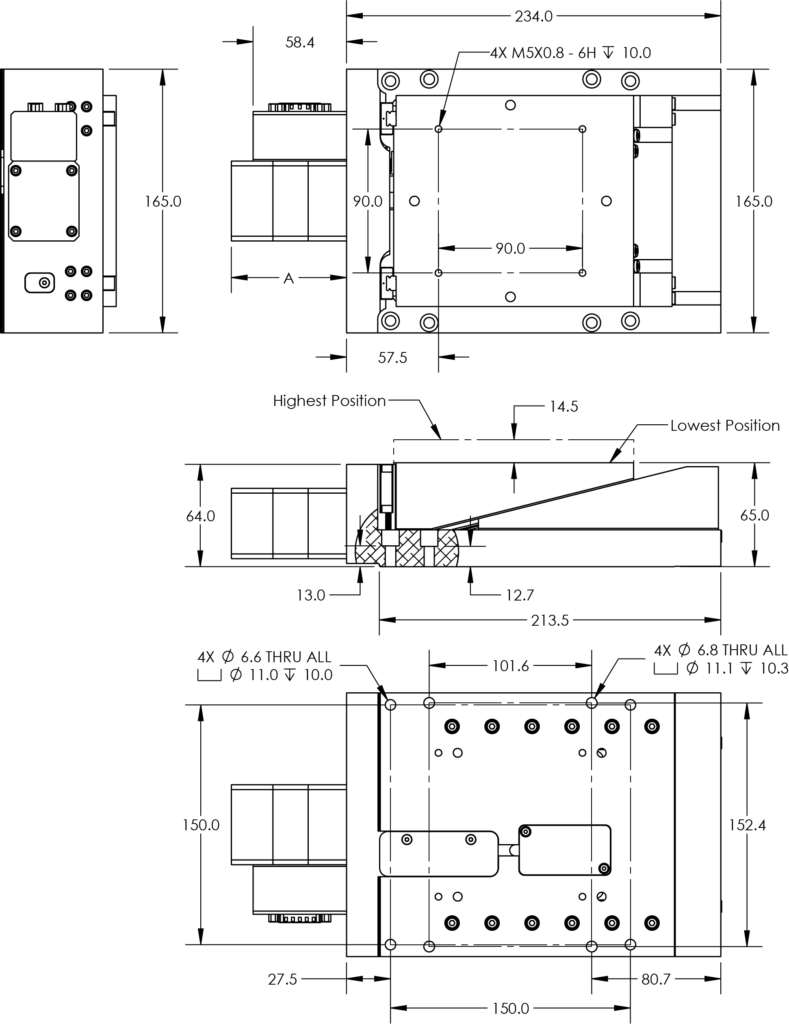

Specifications

Mechanical Accuracy (±µm):	Up to 5.0
Calibrated Accuracy (±µm):	Up to 2.0
Bi-Directional Repeatability (µm):	Up to 1.0
Pitch and Yaw (±arc-sec):	10.0
Maximum Velocity (mm/s):	35
Continuous Lifting Force (N):	250

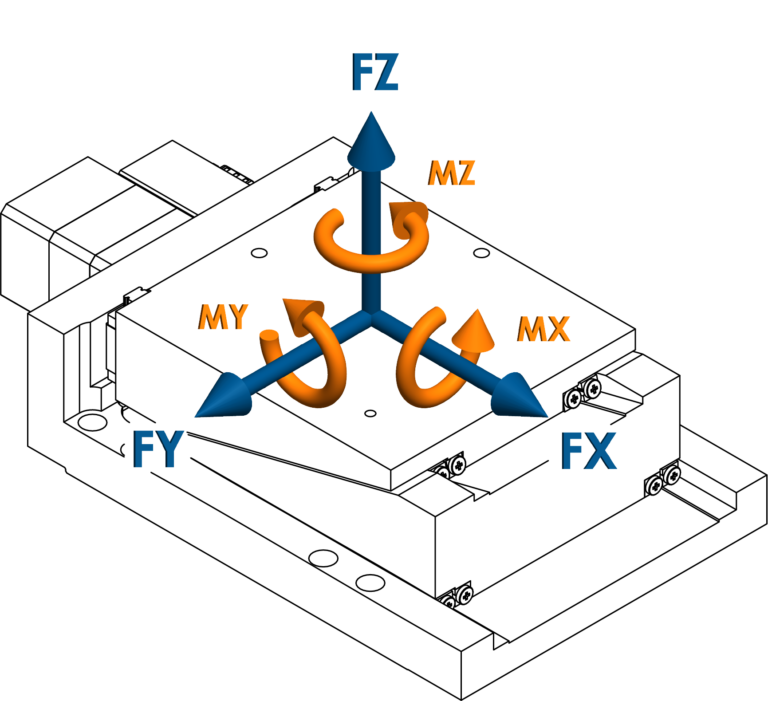

Lateral Load Capacity (N):	100
Moment Load Capacity (Nm):	5.0
Moving Mass (kg):	1.7
Stage Mass (kg):	6.0
