Elevator Stages

ELV-012-BS-A-M-S-0-00

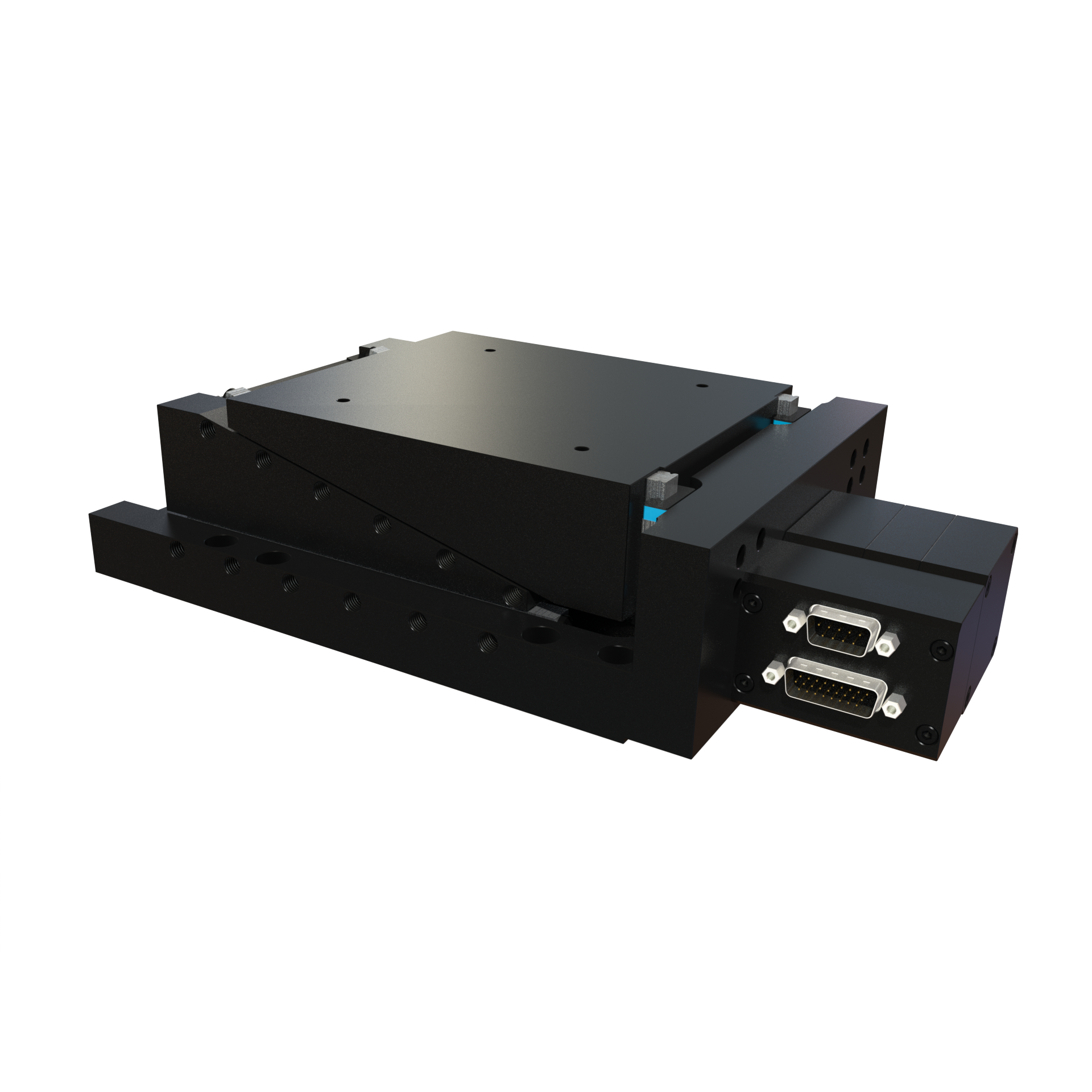

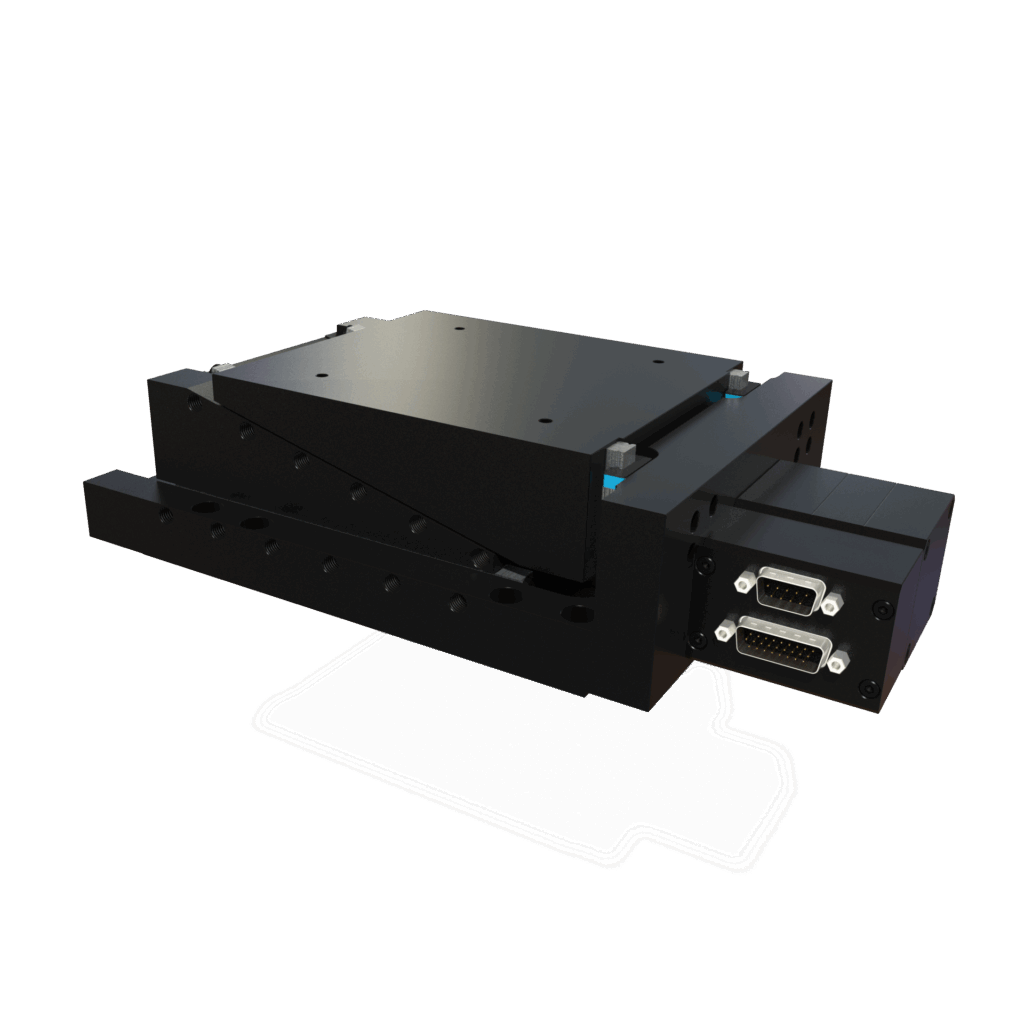

12mm Precision Z Motion Platform

Product SKU:: ELV-012-BS-A-M-S-0-00

Do you have questions? Contact our Experts: (866) 906-2709

Overview

The ELV-BS series stages are designed for a variety of applications. These reliable ball screw stages combine high speed and high accuracy and are built for high duty cycles and long life for laboratory, factory automation and semiconductor processing equipment. They are safe for upright or inverted use and can be configured with custom payload mounting holes. The wedge design and crossed roller bearings offer an extremely rigid Z stage.

Features

12.5mm Z Travel

High rigidity wedge design

Zero backlash, precision ground ball screw

Optical limit switches with home

High resolution linear encoder

Brushless servo motor drive

Crossed Roller Bearings

Available Power-Off Brake

Specifications

Accuracy (µm):	5
Drive Type:	Ball Screw
Encoder Resolution (µm):	0.1
Encoder Type:	0.1µm Linear SS Scale

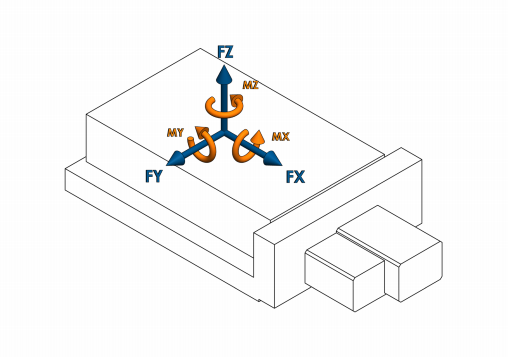

Force X:	100
Force Y:	100
Force Z:	100

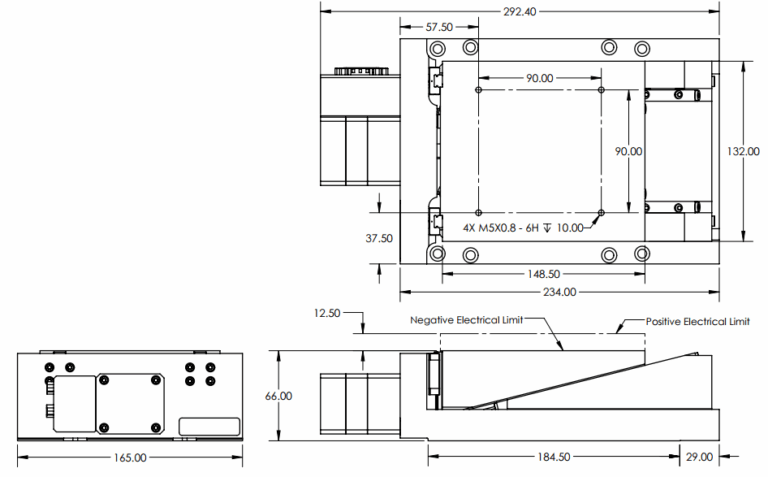

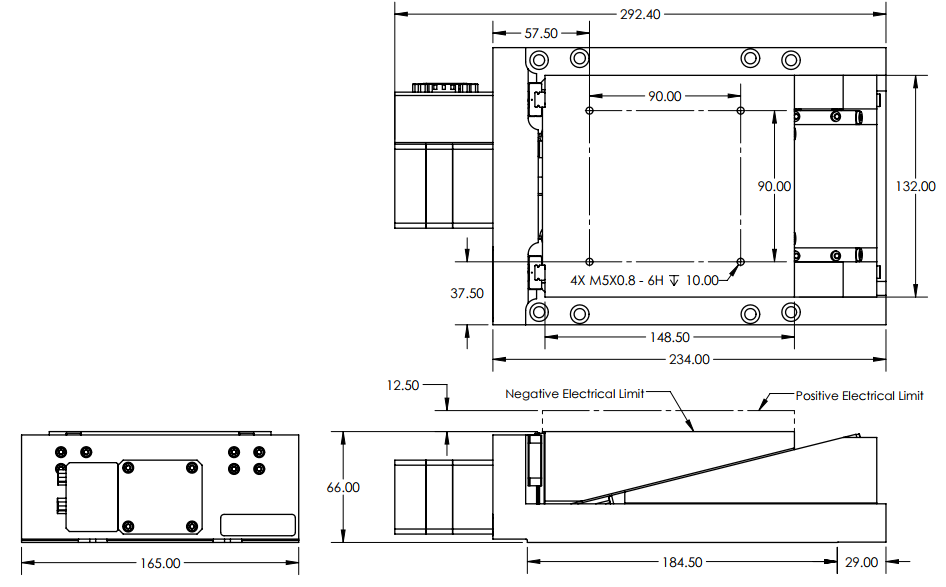

Height (mm):	66
Length (mm):	293

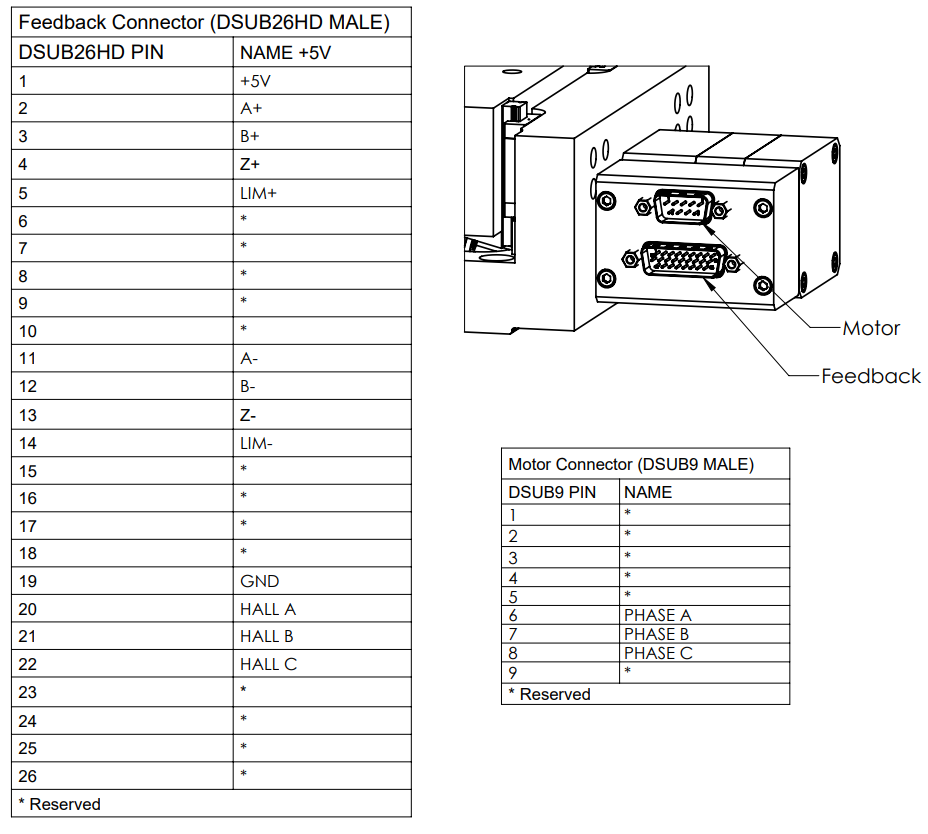

Limit Switches:	Yes
Moment X:	5
Moment Y:	5
Moment Z:	5
Moving Mass Z:	1.7
Pitch (arc-sec):	10
Stage Mass (kg):	6
Precision Class:	Standard Precision

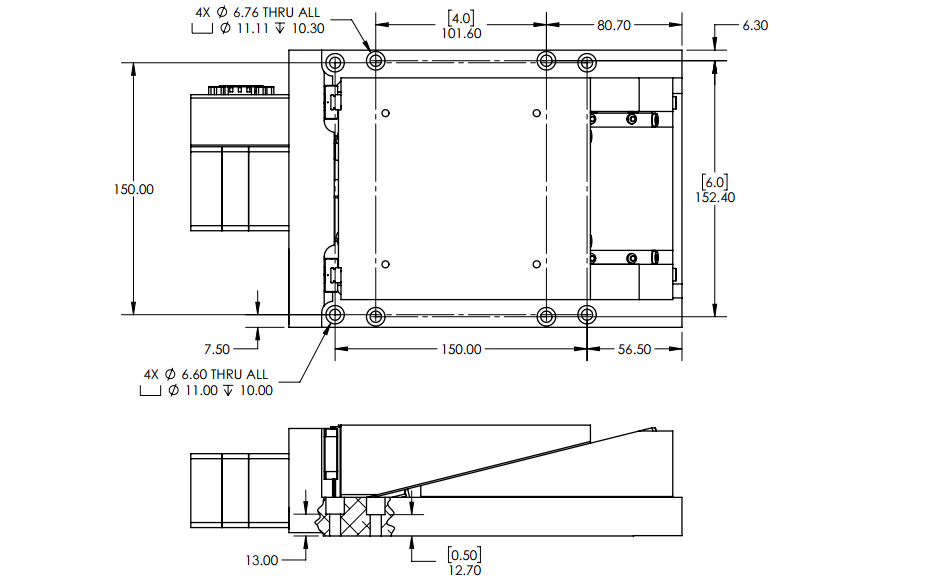

Width:	165
Yaw:	10
