Elevator Stages

ECT-015-BS-A-M-S-0-00

Precision Z Motion (15mm) and Rotation Platform (±5°)

Product SKU:: ECT-015-BS-A-M-S-0-00

Do you have questions? Contact our Experts: (866) 906-2709

Overview

The Elevator-Rotary stages are designed for a variety of applications. These reliable ball screw stages combine high speed and high accuracy and are built for high duty cycles and long life for laboratory, factory automation and semiconductor processing equipment. They are safe for upright or inverted use and can be configured with custom payload mounting holes. The wedge design and crossed roller bearings offer an extremely rigid Z stage.

Features

15mm Z Travel

+/- 5 degrees rotation

High rigidity wedge design

Zero backlash, precision ground ball screw

Optical limit switches with home

Brushless servo motor drive

Crossed roller bearings

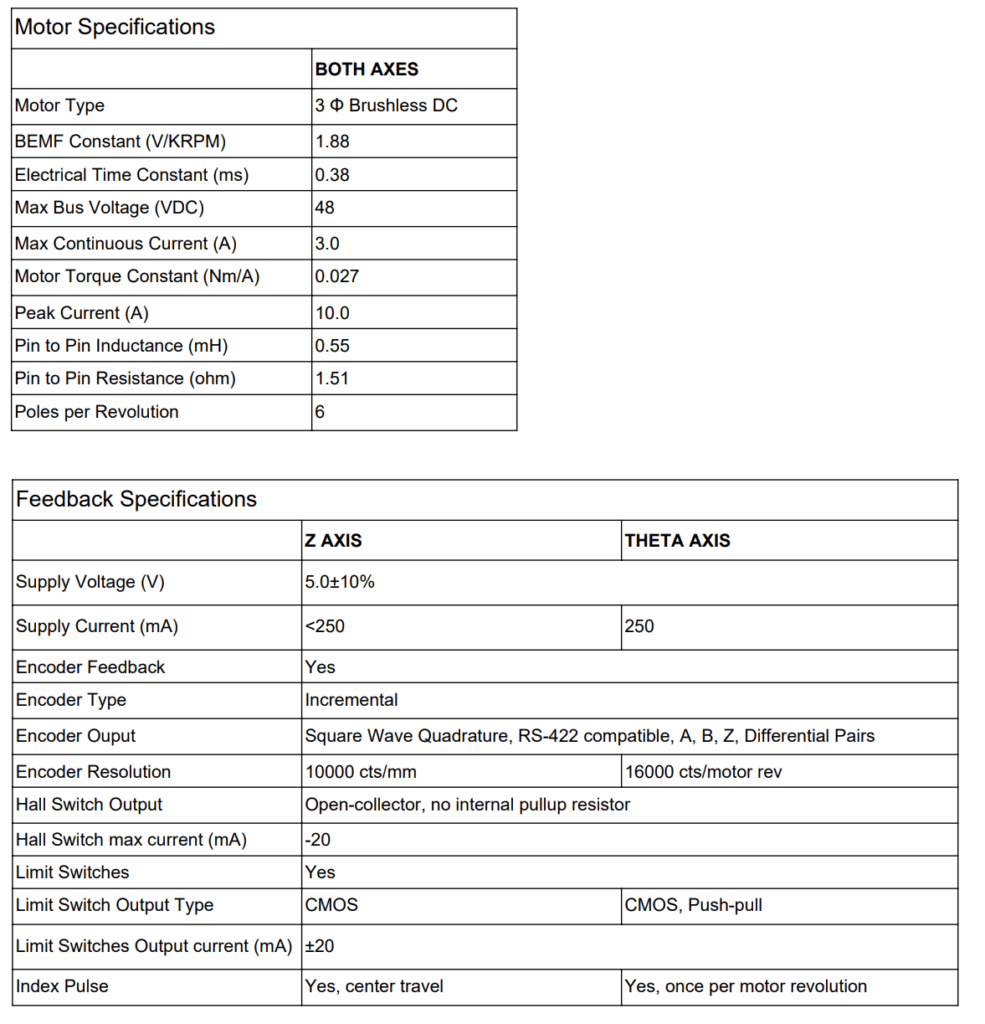

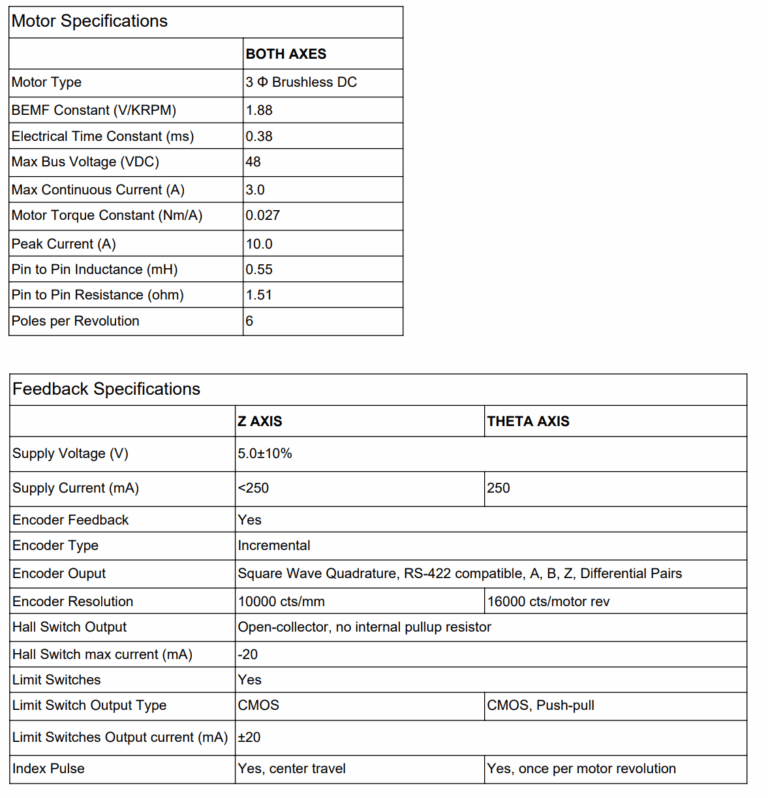

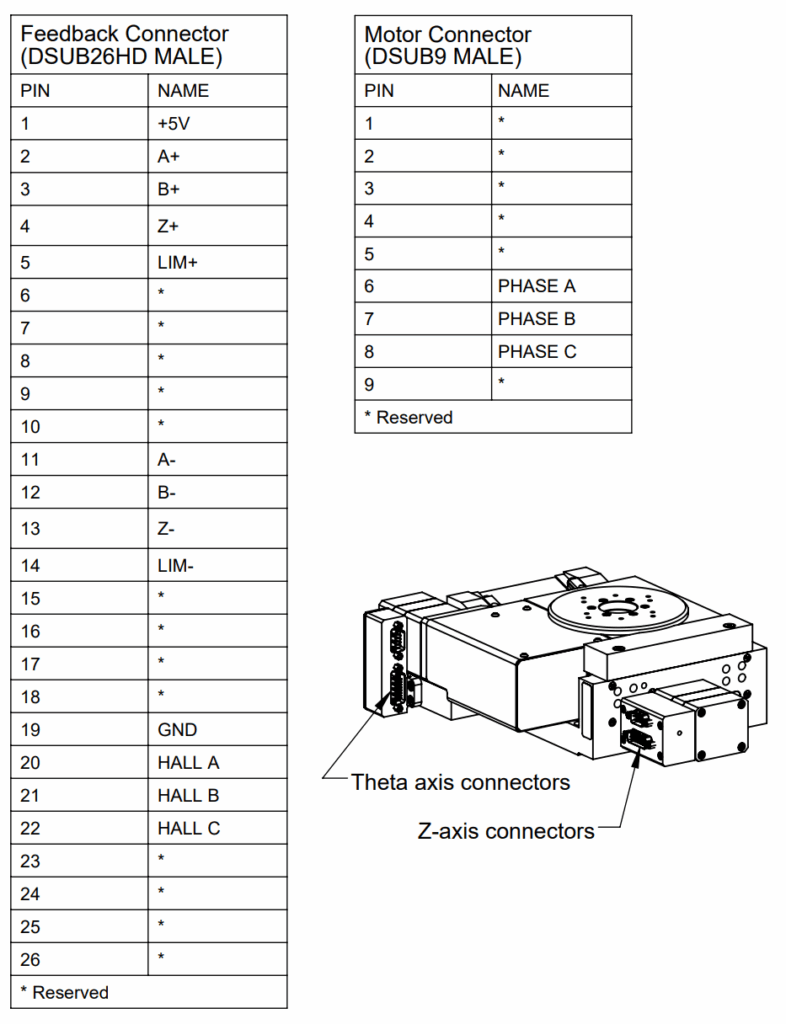

Specifications

Accuracy (µm):	5
Drive Type:	Ball Screw
Encoder Resolution (µm):	0.1

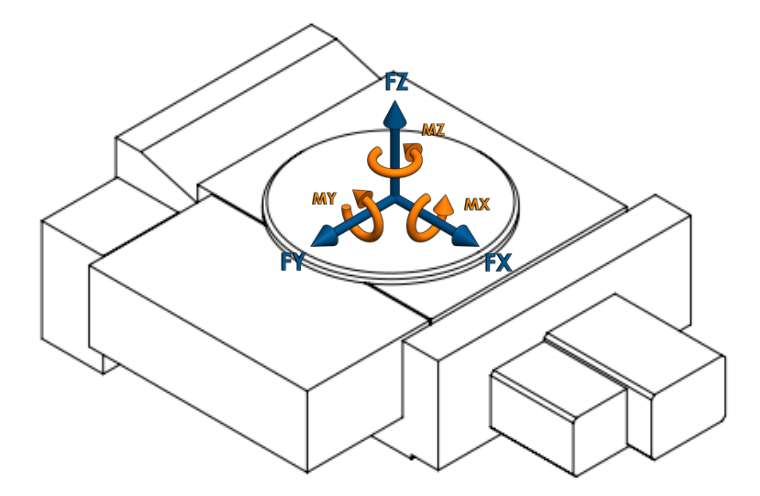

Force Z:	130

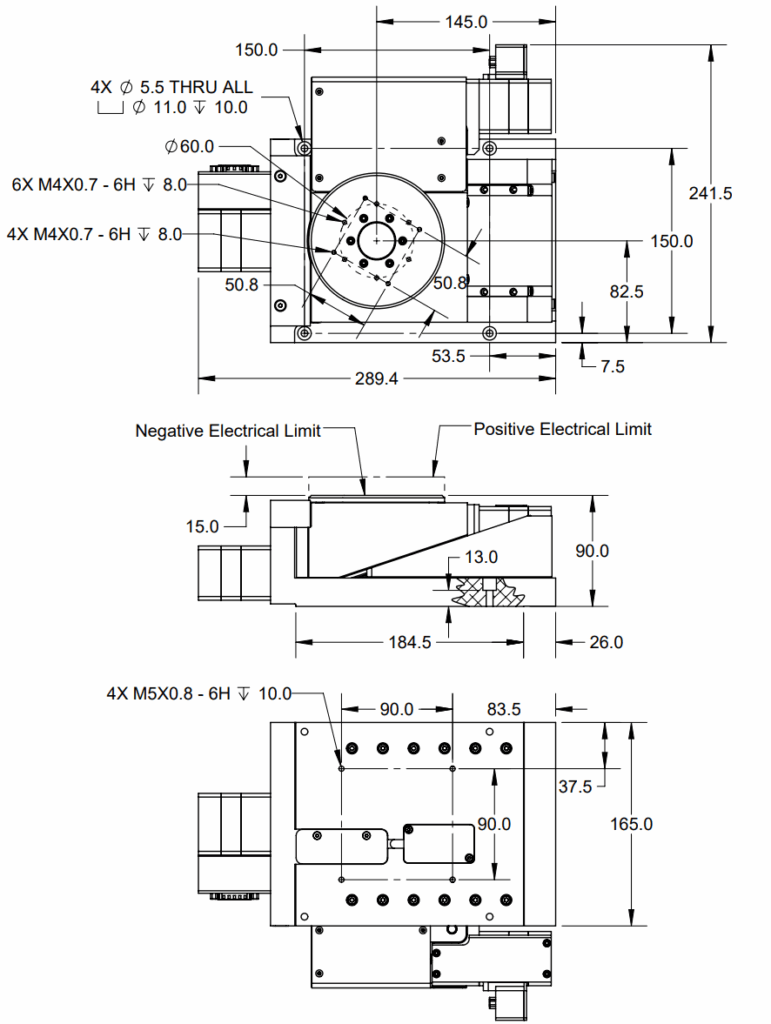

Height (mm):	90
Length (mm):	289
Limit Switches:	Yes
Moving Mass Z:	3.7
Rotational Inertia (kgm):	0.0023576
Screw Lead (mm):	2
Stage Mass (kg):	8.52
Precision Class:	Standard Precision
Straightness (µm):	10
Travel Range (deg):	+/- 5
Width:	241.5
Yaw:	20
