- Compact Low-Profile Design
- 50mm Travel
- Zero backlash, precision ground ball screws

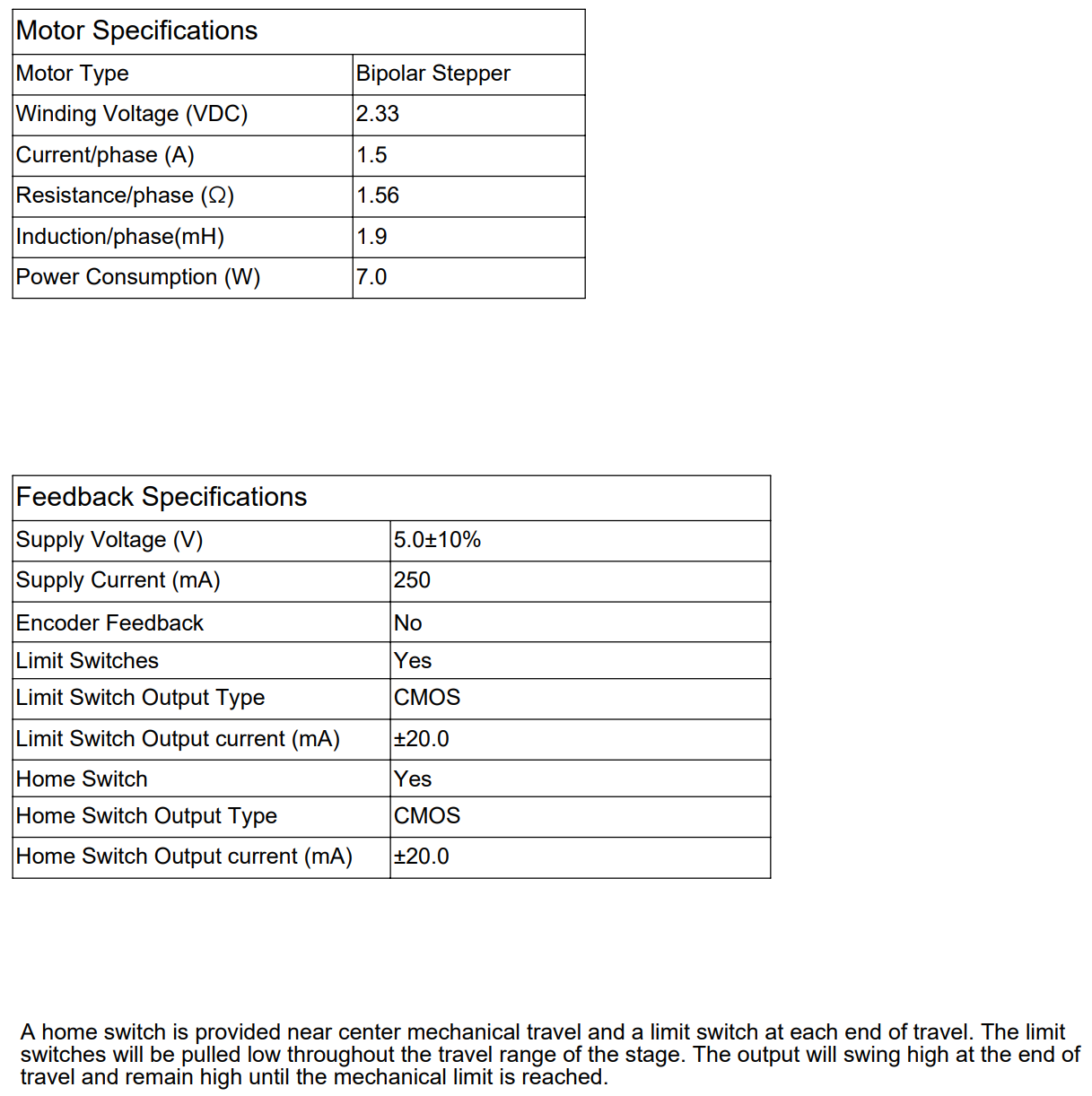

- Optical limit switches with home
- Stepper motor drive
- Crossed Roller Bearings
The MCS-BS Series stages are designed for a variety of applications. This compact low profile
ball screw stage is built for high duty cycles and long life for laboratory, factory automation
and semiconductor processing equipment. This stage has exceptional levels of flatness and
straightness. The crossed roller bearings and a precision ground ball screw offer extremely
smooth operation and velocity control. The MCS-BS Series stages can be stacked to create X,
Y and Z motion. The stage can operate in any orientation and has an optional brake for added
safety and the optional tooling plate is easily customized for different mounting options.
| Product Family | MCS |
| Precision | Standard Precision |
| Additional Options | No Additional Options |
| Travel (mm) | 50 |
| Drive Type | Hybrid Stepper Leadscrew |
| Motor | Hybrid Stepper Leadscrew |
| Accuracy (μm) | 20 |
| Force X (N) | 75 |
| Force Y (N) | 75 |
| Force Z (N) | 75 |
| Flatness (μm) | 8 |
| Height (mm) | 51 |
| Length (mm) | 208 |
| Limit Switches | Yes |
| Repeatability (μm) | 5 |
| Linear Velocity (mm/s) | 25 |
| Moment X (N·m) | 2 |
| Moment Y (N·m) | 2 |
| Moment Z (N·m) | 2 |
| Moving Mass X (kg) | 0.64 |
| Encoder Type | Limit and Home Switch Only |
| Pitch (arc-sec) | ±15 |
| Screw Lead (mm) | 2 |
| Stage Mass (kg) | 1.7 |
| Stepper Motor Resolution | 200 |
| Straightness (μm) | 8 |
| Width (mm) | 67 |
| Yaw (arc-sec) | ±15 |
