- Compact Low-Profile Design
- 150mm Travel
- Zero backlash, precision ground ball screw
- Optical limit switches with home
- High resolution linear encoder
- Brushless servo motor drive
- Crossed Roller Bearings
The LNS-BS Series stages are designed for a variety of applications. This compact low profile ball screw stage is built for high duty cycles and long life and can attain high velocities for factory automation and semiconductor processing equipment. This stage has exceptional levels of accuracy, repeatability, flatness and straightness. The crossed roller bearings and a precision ground ball screw offer extremely smooth operation and velocity control. The LNS-BS Series stages can be stacked to create X, Y and Z motion. The stage can operate in any orientation and has an optional brake for added safety.

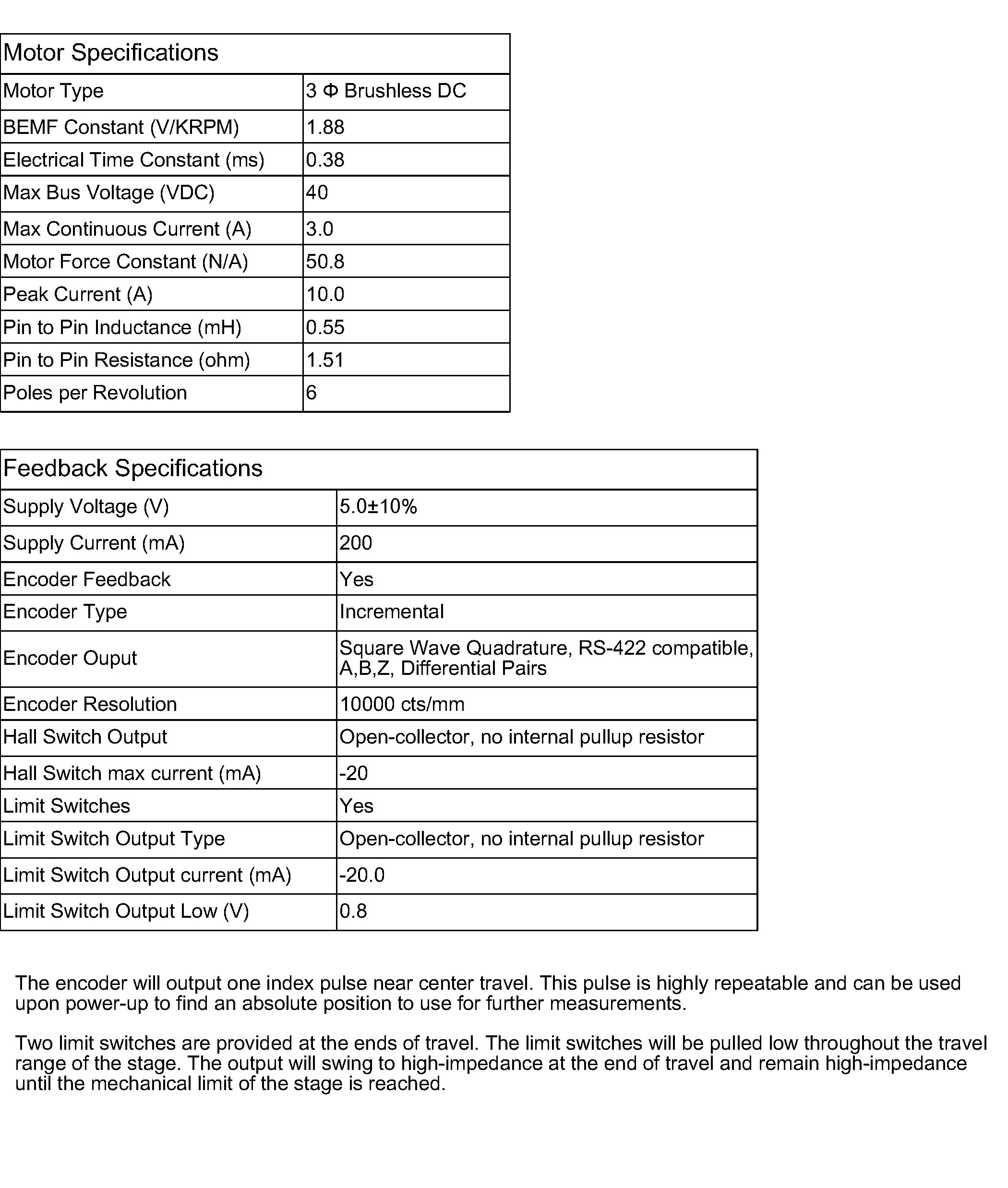

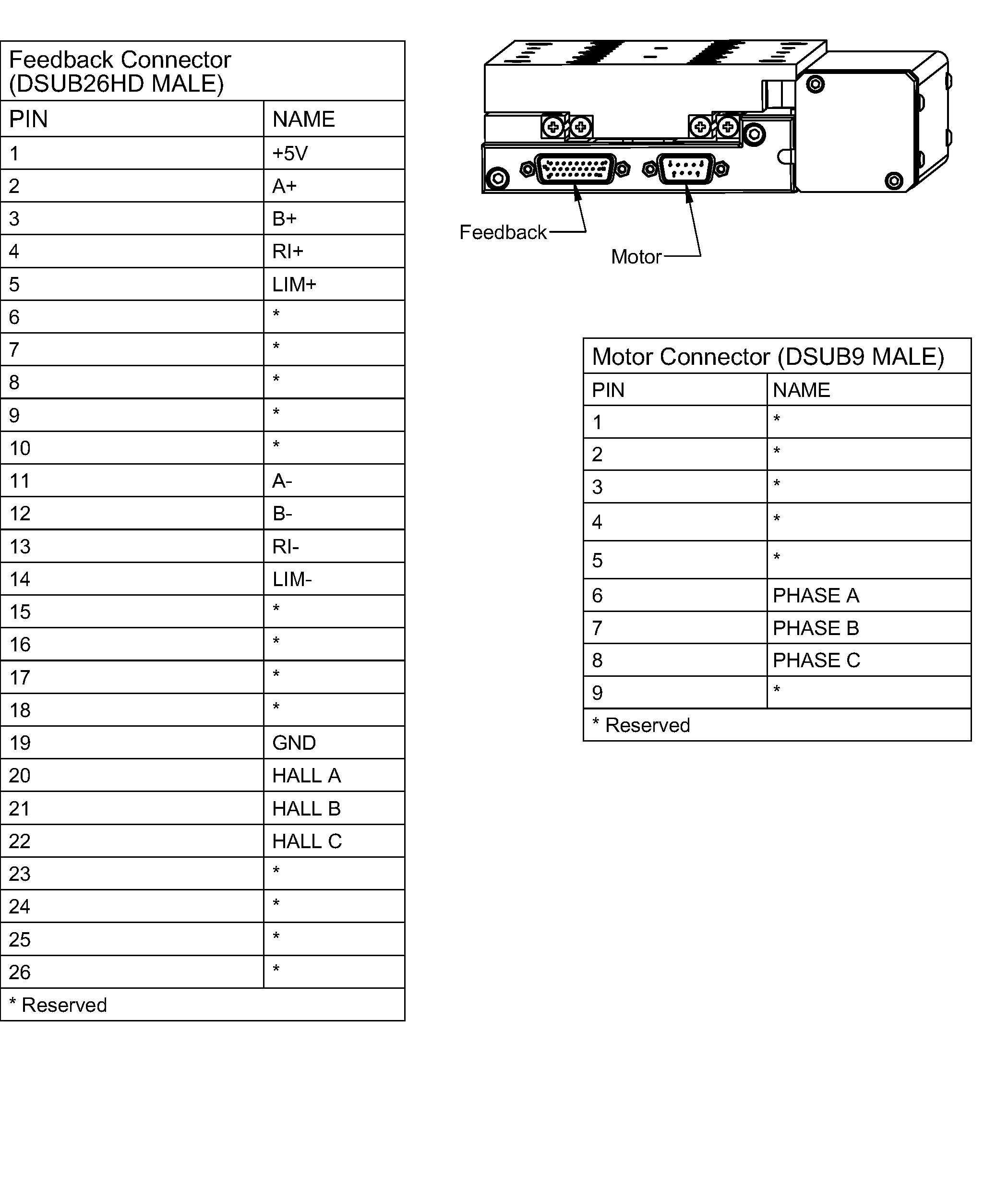

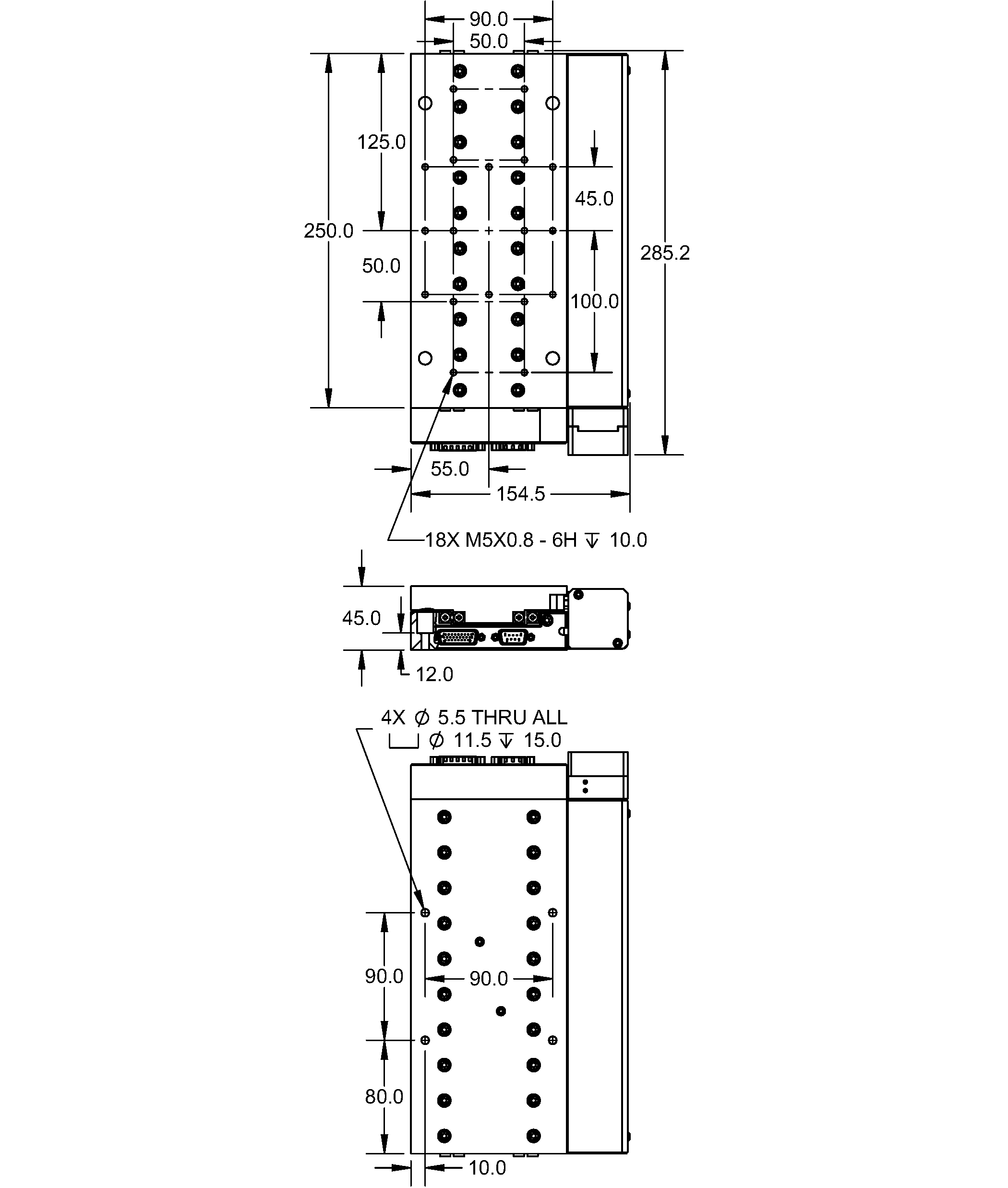

| Product Family | LNS |
| Encoder Type | 0.1µm Linear SS Scale |
| Precision | Standard Precision |
| Additional Options | No Additional Options |
| Travel (mm) | 150 |
| Drive Type | Ball Screw |
| Motor | Brushless Servo |
| Precision Class | Standard Precision |
| Accuracy (μm) | 10 |
| Encoder Output | A quad B, index |
| Force X (N) | 200 |
| Force Y (N) | 300 |
| Force Z (N) | 600 |
| Flatness (μm) | 6 |
| Height (mm) | 45 |
| Length (mm) | 285 |
| Limit Switches | Yes |
| Encoder Resolution (μm) | 0.1 |
| Repeatability (μm) | 1 |
| Linear Velocity (mm/s) | 150 |
| Moment X (N·m) | 70 |
| Moment Y (N·m) | 290 |
| Moment Z (N·m) | 130 |
| Moving Mass X (kg) | 2.06 |
| Encoder Type | 0.1um Linear SS Scale |
| Pitch (arc-sec) | 12 |
| Stage Mass (kg) | 4.46 |
| Straightness (μm) | 6 |
| Width (mm) | 155 |
| Yaw (arc-sec) | 12 |
