- 140mm X Travel, 60mm Y Travel
- Stepper motor
- Recirculating ball linear ways
- Lead Screw

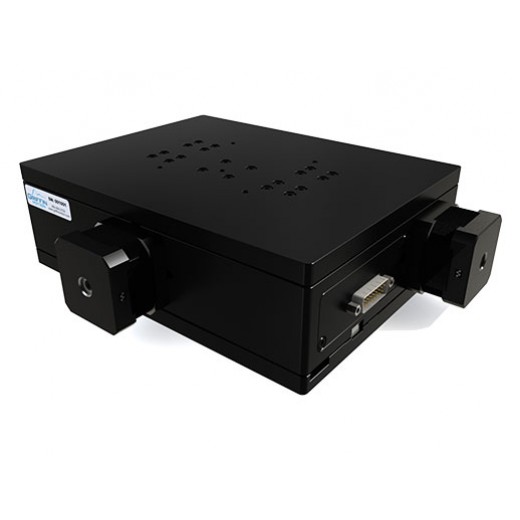

The EXY-HS series stages are designed for a variety of applications. This XY stage offers cost effective motion for laboratory and automation needs. The hybrid stepper drive and recirculating linear ways provide smooth motion. The drive has an inherent braking action allowing it to maintain position when the motors are not powered. This stage can operate in any orientation.
| Product Family | EXY |
| Encoder Type | Home Switch Only |
| Precision | Standard Precision |
| Additional Options | No Additional Options |
| Travel (mm) | 140-060 |
| Drive Type | Hybrid Stepper Leadscrew |
| Motor | Hybrid Stepper lead screw |
| Precision Class | Standard Precision |
| Accuracy (μm) | 75 |
| Force X (N) | 50 |
| Force Y (N) | 50 |
| Force Z (N) | 50 |
| Height (mm) | 66 |
| Length (mm) | 243.8 |
| Limit Switches | No |
| Repeatability (μm) | 10 |
| Linear Velocity (mm/s) | 25 |
| Moment X (N·m) | 20 |
| Moment Y (N·m) | 20 |
| Moment Z (N·m) | 10 |
| Moving Mass X (kg) | 3.85 |
| Moving Mass Y (kg) | 0.9 |
| Encoder Type | Home Switch Only |
| Stage Mass (kg) | 4.6 |
| Stepper Motor Resolution | 200 |
| Width (mm) | 193.8 |
